Tasks on the Machine
Setting the JEDEC Tray Delay
User Manual JTF-MW on SIPLACE E 45
5.4
5.4 Setting the JEDEC Tray Delay
Setting the JEDEC Tray Delay

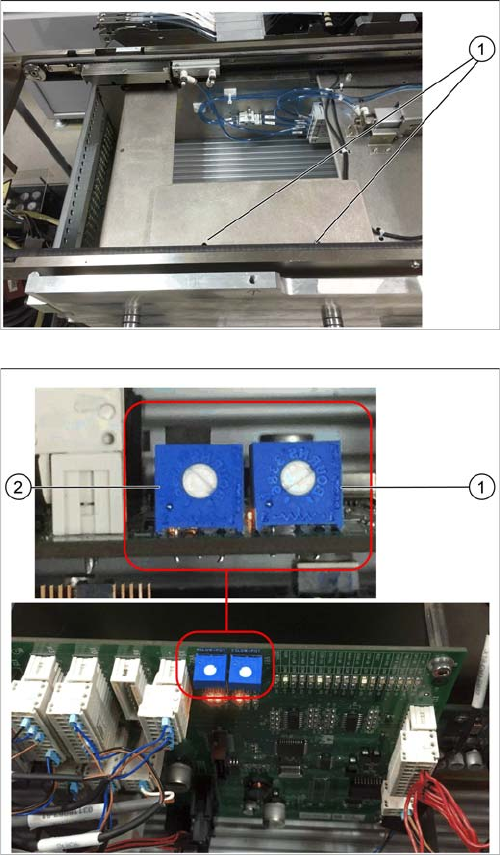

The JEDEC tray delay is adjusted by two potentiometers on the control board.
► Open the cover above the control board by loosening
the two screws (1).
1. Potentiometer for setting the speed of the forward
slow down sensor
2. Potentiometer for setting the speed of the return slow
down sensor
The factory setting for both potentiometers is 6. This set-
ting should not be changed.
► Ensure that the potentiometers are set to 6.
► Replace the cover.
Tasks on the Machine
Operating the JEDEC Tray Feeder in the Station Software (SW708)
46 User Manual JTF-MW on SIPLACE E
5.5
5.5 Operating the JEDEC Tray Feeder in the Station Software (SW708)
Operating the JEDEC Tray Feeder in the Station Software
(SW708)
SIPLACE JTF-MW feeders are available from station software version 708.0. Previous versions do not
support this feeder family.
The, SIPLACE JTF-MW is not displayed at the station until a job has been defined.
The following terms are used in the sections:
1. Menu
2. Submenu
Main view
5.5.1
5.5.1 SIPLACE JTF-MW Configured in SIPLACE Pro and Defined at Machine
SIPLACE JTF-MW Configured in SIPLACE Pro and Defined at Machine
Location view
1. Location 2
Tasks on the Machine
Operating the JEDEC Tray Feeder in the Station Software (SW708)
User Manual JTF-MW on SIPLACE E 47
5.5.2
5.5.2 "Display, Check and Set up Feeders, Components and Nozzles" Menu
"Display, Check and Set up Feeders, Components and Nozzles" Menu
Selecting the location for the current setup
► Select the Display, check and set up feeders, components and nozzles menu (1) to display the sub
views of the relevant locations.
► Select location 2 (2) to display the view of the current setup.
5.5.3
5.5.3 Addressing the SIPLACE JTF-MW at the Location
Addressing the SIPLACE JTF-MW at the Location
Current setup view
1. Current setup (currently set-up feeders)
2. Expected setup (setup expected by SIPLACE Pro)
3. Change button for switching to the Track information sub menu.
► Press the change button to display the Track information submenu.
