All sensors and buttons are monitored on the LED bars on the controller PCB.
This is a help to determine errors on the feeder.

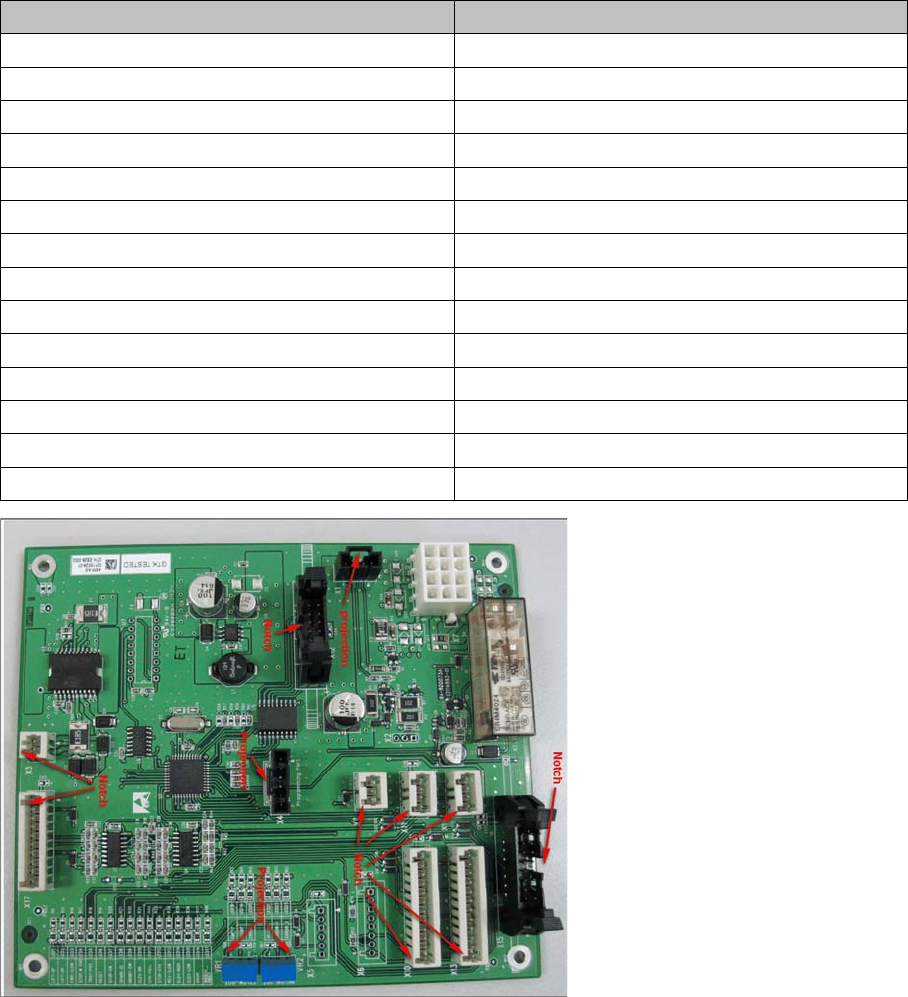

Location and function of the senor LEDs
Controller PCB
Sensor LED Function
LED 1 Gap sensor
LED 3 Forward slow down sensor
LED 4 Stop at end
LED 5 Tray position
LED 6 Reset button
LED 7 Stop button
LED 9 Inhibit button
LED10 Elevator down button
LED 12 Tray Home sensor
LED 13 Reverse slow down sensor
LED 14 Elevator high position limit
LED 15 Elevator low position limit
LED 16 Door open
LED 17 Index 1 AND 2
Service Work
Troubleshooting 7.1.2 General Problems
58 User Manual JTF-MW on SIPLACE E
7.1.2
7.1.2 General Problems
General Problems
Problem Possible Cause Solution
On power-up, the feeder will
not operate. There are no
lights on the panels or sen-
sors at all.
The feeder may not be get-
ting power.
► Be sure the feeder is plugged into
the assembly machine.
Is the host machine providing power to
X6.1, X6.4 (+24V) and X6.3, X6.4
(GND)?
► Check for 24V DC on pins X6.1
and X6.3.
► Be sure the host machine is on and
not in an E-Stop condition.
► Check the voltage reaching the
feeder.
The feeder powers up, but
does not operate.
The Stop button on the feed-
er may have been hit. (Stop
LED lit)
► Press the Reset button.
The host machine may not
be supplying enough com-
pressed air. (Stop LED is
flashing)
► Be sure that the feeder air feed line
is connected to the assembly ma-
chine.
► Be sure that the air supply on the
assembly machine is on.
► Be sure the assembly machine is
supplying 4.5 bar.
All of the pneumatic func-
tions seem slow or sluggish.
The host machine may not
be supplying enough com-
pressed air.
► Be sure the host machine is sup-
plying 4.5 bar.
► Be sure that the air feed line is not
pinched.
► Check for variations in air supply
from the host machine.
One pneumatic function is
slow or sluggish.
The mechanism may be
blocked or jammed.
► Check for a mechanical problem.
The flow control(s) for that
function may need adjust-
ment.
▪ Tray clamp
▪ Feed pusher
▪ Return pusher
The valve block for that func-
tion may be bad.
► Check and replace if necessary.
The cylinder for that function
may be bad.
► Check and replace if necessary.
All of the pneumatic func-
tions seem too fast.
The air pressure from the
host machine may be too
high.
► Be sure the host machine is sup-
plying 4.5 bar.
One pneumatic function is
too fast.
The flow control(s) for that
function may need adjust-
ment.
▪ Tray clamp
▪ Feed pusher
