Service Work
7.1.4 Conveyor and Sensor Problems – Tray Feed Cycle Troubleshooting
User Manual JTF-MW on SIPLACE E 61
A tray on the conveyor
does not reach the “stop at
end” or “ready” sensor.
(You should see a green
LED on the sensor.)
A tray may be improp-
erly located in the
feeder or warped.
► Remove the tray and push the Reset button.
Something may be
blocking the free mo-
tion of the tray on the
conveyor.
► Remove the tray and any obstruction, then
push the
► Reset button.
The conveyor belts
may be dirty and slip-
ping.
► Clean the conveyor belts with alcohol.
The “stop at end” or
“ready” sensor is made be-
fore the “conveyor slow
down” sensor.
The flag on the “ready”
Sensor may be stick-
ing.
► Check LED 4 and free up the mechanism.
The t ray fr om the maga-
zIne does not reach the
“stop at end” or “ready”
sensor before timeout (2
seconds after making the
“conveyor slow down”
sensor”).
There may be an ob-
struction on the con-
veyor.
► Check for warped trays.
► Check for anything blocking the motion of the
trays.
The conveyor belts
may be slipping.
► Clean the belts with alcohol.
The dies are knocked out
of the tray as the tray is
pushed onto the conveyor.
The action of the out
feed pusher may be
too quick.
► Check the settings of the flow controls.
The dies are knocked out
of the tray as the tray
reaches the end of the
conveyor.
The tray may be slow-
ing down too quickly
during the “forward
slow down” delay.
► Check the setting for the forward slow down
delay.
The forward slow-
down sensor may not
be working.
► Check LED 3 and the sensor.
The tray clamp may
be moving too quickly.
► Check the setting of the flow controls.
The belt guides may
be out of alignment,
causing the trays to
bounce.
► Check the alignment.
Service Work
Troubleshooting 7.1.4 Conveyor and Sensor Problems – Tray Feed Cycle
62 User Manual JTF-MW on SIPLACE E
Appendix
Labels on the SIPLACE JTF-MW
User Manual JTF-MW on SIPLACE E 63
8
8 Appendix
Appendix
8.1
8.1 Labels on the SIPLACE JTF-MW
Labels on the SIPLACE JTF-MW

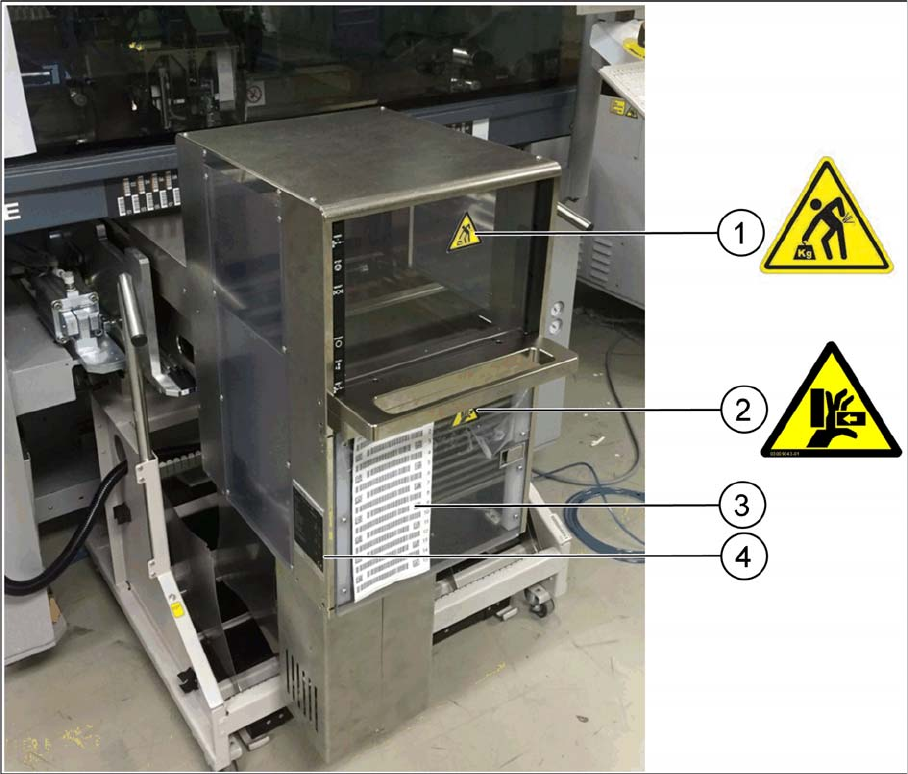

Labels on the front and on the side of the JTF-MW
1. Heavy weights label [03122822-01]
2. Crushing hazard label [03009343-01]
3. Barcode film label [03119805-01]
4. Name plate [03056014-08]
