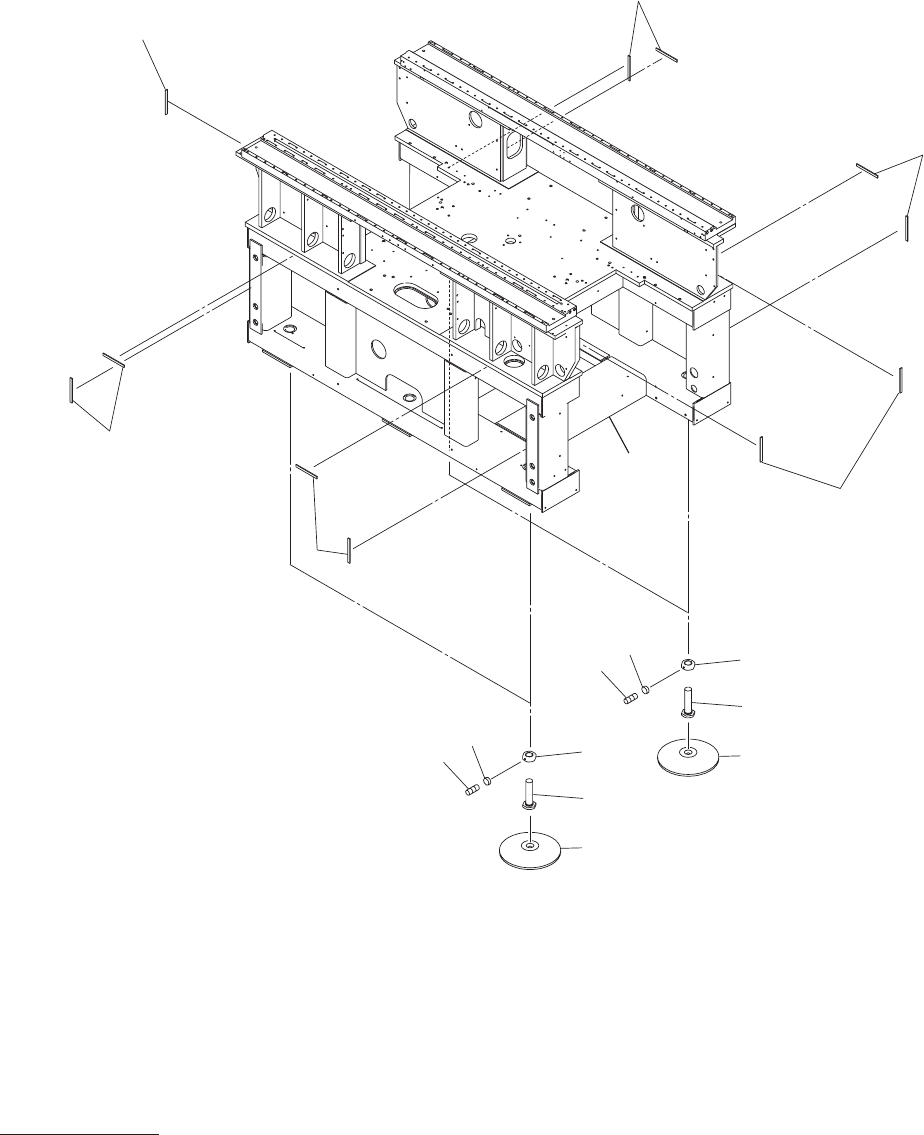

MODEL GXH-3JPH 0712-002 架台 UNDERFRAME Fig. BK-1 フレーム部 Frame Section 1 1 12 13 1 1 12 13 2 2 2 1 2 2 2 23 24 23 24 BK-1 illust-1
MODEL GXH-3JPH
0712-002
Fig. BK
架台
UNDERFRAME
BK illust-1

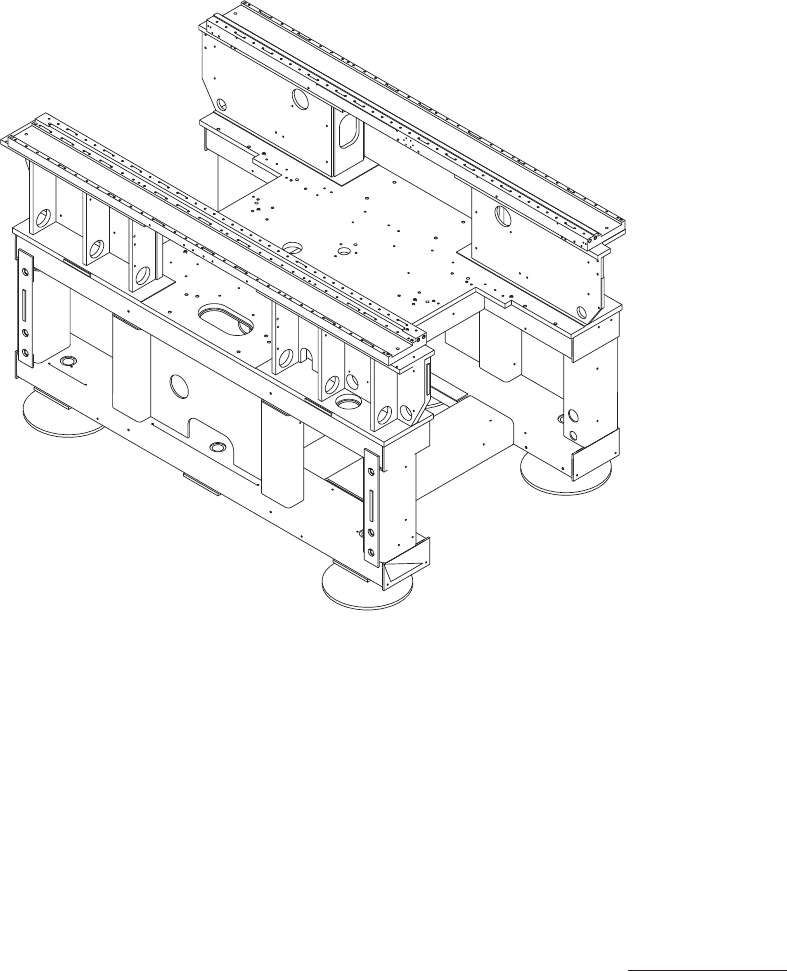

MODEL GXH-3JPH
0712-002
架台
UNDERFRAME
Fig. BK-1
フレーム部
Frame Section
11
12
13
11
12
13
2
2
2
1
2
2
2
23
24
23
24
BK-1 illust-1
1 6301611921 FRAME 1 858BK-100-001 910B0965
2 6301414249 MECH PARTS(URETHAN SHEET) 11 858BK-100-002 226J2211
11 6300425673 BOLT,HEX 4 858BK-100-011 221B0068
12 6300425697 NUT 4 858BK-100-012 221G0054
13 6300892475 BLOCK,LOCATE 4 858BK-100-013 216R0229
23 6300416770 COLLAR 4 858SA-100-013 216A0334
24 6300008975 SET SCREW 4 M6X6 SET 858SA-100-014 221C0010
MODEL GXH-3JPH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BK-1
BK-1 list-1
