MODEL GXH-3JPH 0712-002 ビーム X 部 BEAM X SECTION Fig. CX-1 X 軸ベース X Axis Base 33 21 22 34 28 30 31 30 31 24 25 29 1 1 2 1 1 2 32 36 32 56 57 64 64 52 . 73 . 66 62 61 . 76 . 69 61 . 76 . 69 54 . 73 . 66 63 . 72 . 70 60 . 75…
MODEL GXH-3JPH
0909-003

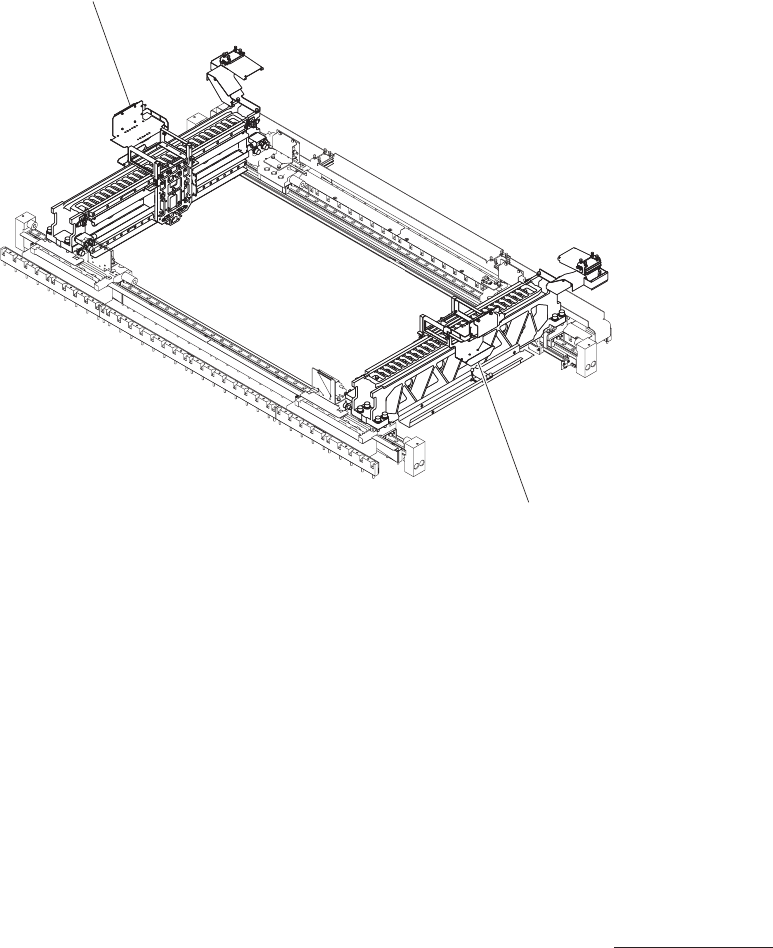

Fig. CX
ビーム
X
部
BEAM X SECTION
BLOCK2
BLOCK1
CX illust-1
MODEL GXH-3JPH
0712-002
ビーム
X
部
BEAM X SECTION

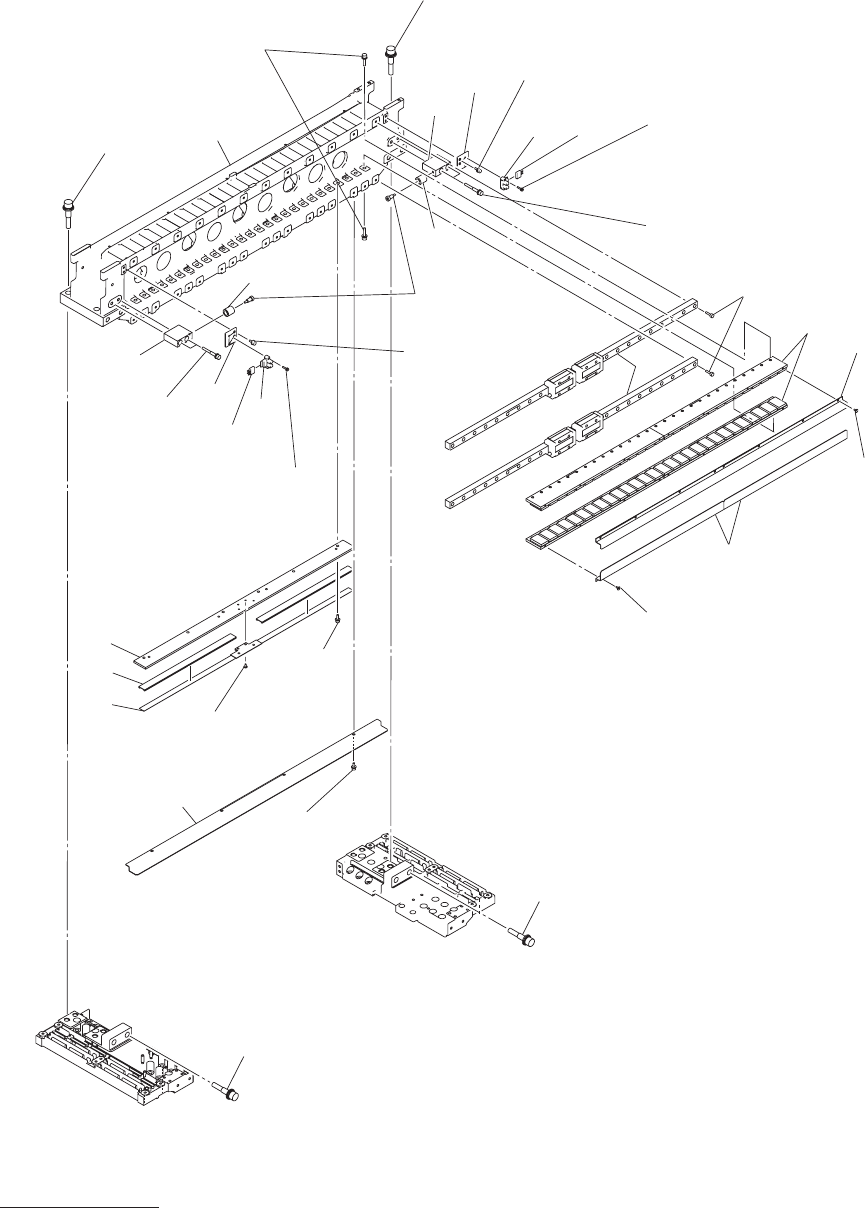

Fig. CX-1 X
軸ベース
X Axis Base
33
21
22
34
28
30
31
30
31
24
25
29
11
2
11
2
32
36
32
56
57
64
64
52
.
73
.
66
62
61
.
76
.
69
61
.
76
.
69
54
.
73
.
66
63
.
72
.
70
60
.
75
.
68
54
.
73
.
66
61
.
76
.
69
59
.
74
.
67
61
.
76
.
69
54
.
73
.
66
63
.
72
.
70
60
.
75
.
68
BLOCK 1,2
CX-1 illust-1
2 6300000252 SENSOR,PHOTO 4 B2101,B2102
858CX-100-102 23G10002
11 6300000269 SENSOR,PHOTO(CONNECTOR) 4 858CX-100-011 23G10003
21 6301555102 ASSY,GUIDE,LINEAR 2 858CX-100-201 022L0010
22 6301446943 MOTOR,AC-SERVO 4 858CX-100-202 4M150237
24 6301239804 ENCODER(LIDA407 TAPESET) 2 858CX-100-204 23G40019
25 6301239828 MECH PARTS(LIDA407 HOLDE) 4 858CX-100-205 226J1869
28 6301588056 FRAME 2 858CX-100-208 210B4211
29 6301543352 PLATE 2 858CX-100-209 211DC591
30 6301560748 BLOCK 4 858CX-100-210 211G5285
31 6301560779 ROD 4 858CX-100-211 216C0956
32 6301575407 BRACKET 4 858CX-100-212 211FC505
33 6301546674 BRACKET 2 858CX-100-213 211FC039
34 6301567891 COVER 2 858CX-100-214 211AB967
36 6301525457 COVER 4 858CX-100-226 211AB488
52 6300007602 BOLT,HEX-SCT 8 M4X6 858CX-100-502 221A0015
54 6300007626 BOLT,HEX-SCT 16 M4X10 858CX-100-504 221A0017
56 6300007640 BOLT,HEX-SCT 60 M4X14 858CX-100-506 221A0019
57 6300007657 BOLT,HEX-SCT 4 M4X16 858CX-100-507 221A0020
59 6300007763 BOLT,HEX-SCT 116 M5X16 858CX-100-509 221A0031
60 6300007954 BOLT,HEX-SCT 8 M6X50 858CX-100-510 221A0050
61 6300008159 BOLT,HEX-SCT 24 M10X40 858CX-100-511 221A0070
62 4110347208 SCR FLT 3X8 4 858CX-100-512 221D0218
63 4110407803 SCR PAN 3X12 4 858CX-100-513 221E0489
64 4110505004 SCR TRS 3X6 24 858CX-100-514 221E0529
66 4111414008 WASHER V 4X9X0.8 24 858CX-100-516 221H0315
67 4111414107 WASHER V 5X10X1 116 858CX-100-517 221H0318
68 4111414305 WASHER V 6X12.5X1.6 8 858CX-100-518 221H0320
69 4111414701 WASHER V 10X21X2 24 858CX-100-519 221H0325
70 4110889005 WASHER F 3X6X0.5 4 858CX-100-520 221H0337
72 4110864408 WASHER SPR 3 4 858CX-100-522 221H0280
73 4111412905 WASHER SPR 4 24 858CX-100-523 221H0284
74 4111416705 WASHER SPR 5 116 858CX-100-524 221H0287
75 4111413001 WASHER SPR 6 8 858CX-100-525 221H0289
76 4111413209 WASHER SPR 10 24 858CX-100-526 221H0293
MODEL GXH-3JPH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
CX-1
CX-1 list-1
