MODEL GXH-3JPH 1004-004 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE G-1 1 6301541259 COVER 1 858G--100-101 21 1AB652 2 6301541266 COVER 1 858G--100-102 21 1AB653 3 6301562278 COVER 1 858G--100-103 21 1AB890…
MODEL GXH-3JPH
0712-002

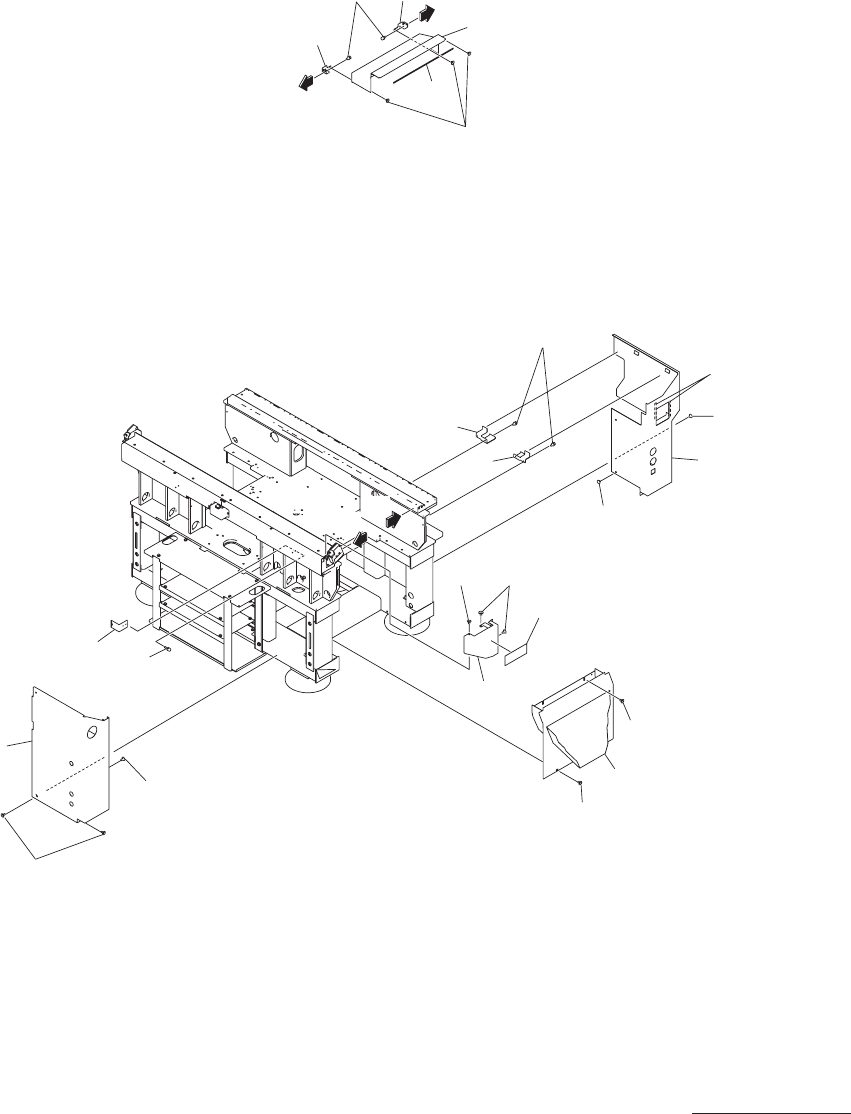

カバー部
COVER SECTION
Fig. G-1
下カバー
Lower Cover
23
24
11
61
60
.
52
.
53
38
B
A
51
.
52
.
53
17
2
62
63
10
3
62
62
21
33
45
44
A
B
76
29
73
.
74
.
75
71
71
76
G-1 illust-2
MODEL GXH-3JPH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
G-1
1 6301541259 COVER 1 858G--100-101 211AB652
2 6301541266 COVER 1 858G--100-102 211AB653
3 6301562278 COVER 1 858G--100-103 211AB890
4 6301561370 COVER 1 858G--100-104 211AB882
10 6301611280 COVER 2 858G--100-110 211AC573
11 6301607443 COVER 2 858G--100-111 211AC498
17 6301599175 BRACKET 2 858G--100-117 211FC850
20 6301279398 MECH PARTS(MAGNET CATCH) 1 858G--100-220 226J1936
21 6301414249 MECH PARTS(URETHAN SHEET) 4 858G--100-501 226J2211
23 6301571966 BRACKET 2 858G--100-123 211FC468
24 6301571973 BRACKET 2 858G--100-124 211FC469
29 6301599526 NAME PLATE,PARTS 2 858G--100-749 6P441818
32 6301578224 NAME PLATE,PARTS 1 858G--100-732 6P441807
33 6301612195 COVER 1 858G--100-713 211AC587
35 6301612201 COVER 1 858G--100-715 211AC588
38 6301342320 NAME PLATE,INDEX 1 858G--100-418 6P460150
41 6301342313 NAME PLATE,INDEX 1 858G--100-421 6P460149
44 6301363851 BRACKET 1 858G--100-724 211F9634
45 6301612454 BRACKET 1 858G--100-725 211FD053
46 6301612461 BRACKET 1 858G--100-735 211FD054
47 6301363882 BRACKET 1 858G--100-736 211F9637
51 6300007763 BOLT,HEX-SCT 4 M5X16 858G--100-131 221A0031
52 4111416705 WASHER SPR 5 12 858G--100-132 221H0287
53 4111414107 WASHER V 5X10X1 12 858G--100-133 221H0318
54 6301274546 SCR PAN+SW+W 3X6 2 858G--100-134 221D0262
60 6300007756 BOLT,HEX-SCT 8 M5X12 858G--100-140 221A0030
61 4111408007 SCR TRS 5X6 8 858G--100-141 221E0536
62 4111139109 SCR TRS 5X10 16 858G--100-142 221E0534
63 4111139703 SCR TRS 6X10 2 858G--100-143 221E0538
71 4111139109 SCR TRS 5X10 10 858G--100-801 221E0534
73 6300007756 BOLT,HEX-SCT 8 M5X12 858G--100-813 221A0031
74 4111416705 WASHER SPR 5 8 858G--100-814 221H0287
75 6300010220 WASHER 8 BW5 858G--100-815 221H0005
76 6300533132 BOLT,HEX-SCT 8 M5X10 858G--100-146 221A0195
G-1 list-1
