3 Return unit 3.2 Replacing the Z axis return unit 22 Service Manual SIPLACE TwinStar (Twin, Twin HF, Twin VHF) 07/2020 Installation ► Insert the return unit through the opening in the mount. ► Reconnect the hose and plu…
3 Return unit
3.2 Replacing the Z axis return unit
Service Manual SIPLACE TwinStar (Twin, Twin HF, Twin VHF) 07/2020 21

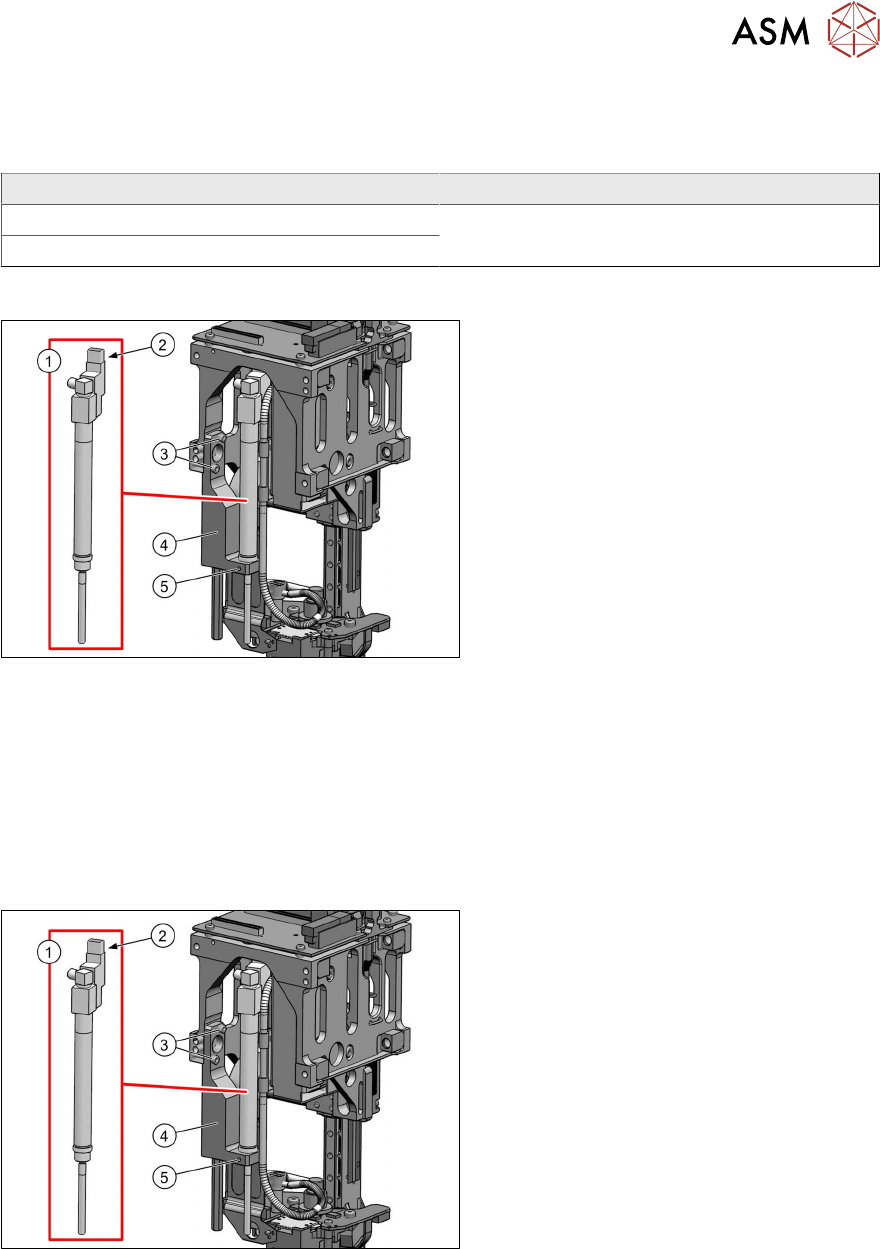

3.2.2 Return unit on the Twin/Twin HF
Parts
Head type Spare part
Twin HF module R2 [03097486‑xx] Z axis return unit [03001361-xx]
Twin module THK R2 [03097485‑xx]
Overview
Fig.18: Overview of return unit (example of Twin HF shown)
1. Return unit
2. Connector/coupling
3. Screws fastening the mount
4. Mount
5. Grub screw on the mount for fixing the
return unit
Preparation
► Remove the head from the machine. For details about removing and fitting the placement
head, refer to the service manual for your machine.
Removal
► Dismantle the buffer on the return unit.
3.1 "Replacing the return unit buffer" [}17]
Fig.19: Dismantling the return unit (example of Twin HF
shown)
► Disconnect the plug (2) from the coup-
ling.
► Remove the two screws (3) fastening
the mount(4)
.
► Take the return unit(1) out of the head,
together with the mount.
► Loosen the grub screw (5) on the
mount.
► Pull the return unit(1) out of the mount.
3 Return unit
3.2 Replacing the Z axis return unit
22 Service Manual SIPLACE TwinStar (Twin, Twin HF, Twin VHF) 07/2020
Installation
► Insert the return unit through the opening in the mount.
► Reconnect the hose and plug.
► Fit the buffer on the return unit.
3.1 "Replacing the return unit buffer" [}17]

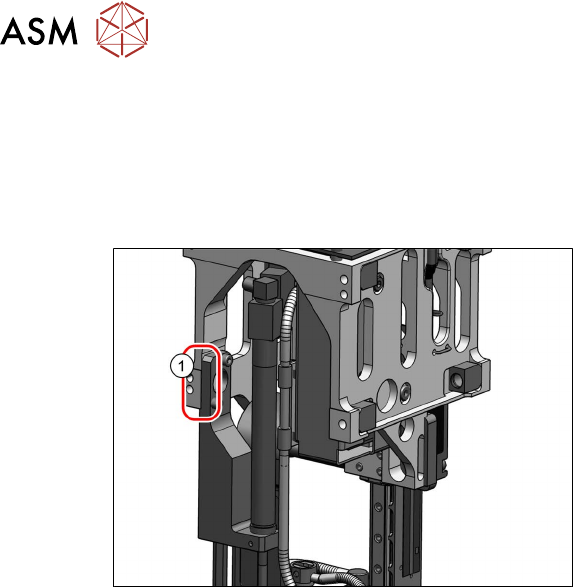

Fig.20: Fitting the return unit and mount (example of Twin
HF shown)
► Screw the mount back into place.
Make sure that the mount edge (1)
is
parallel to the TwinHead housing (must
lie flat against it).
► Turn the return unit in the mount so that the cables and plugs do not touch the housing. This
prevents the cables from being damaged during movement.
► Fix the return unit with the grub screw to the mount.
Follow the removal instructions in reverse order for further installation.
3 Return unit
3.3 Replacing the hose and flat ribbon guide (Twin HF only)
Service Manual SIPLACE TwinStar (Twin, Twin HF, Twin VHF) 07/2020 23

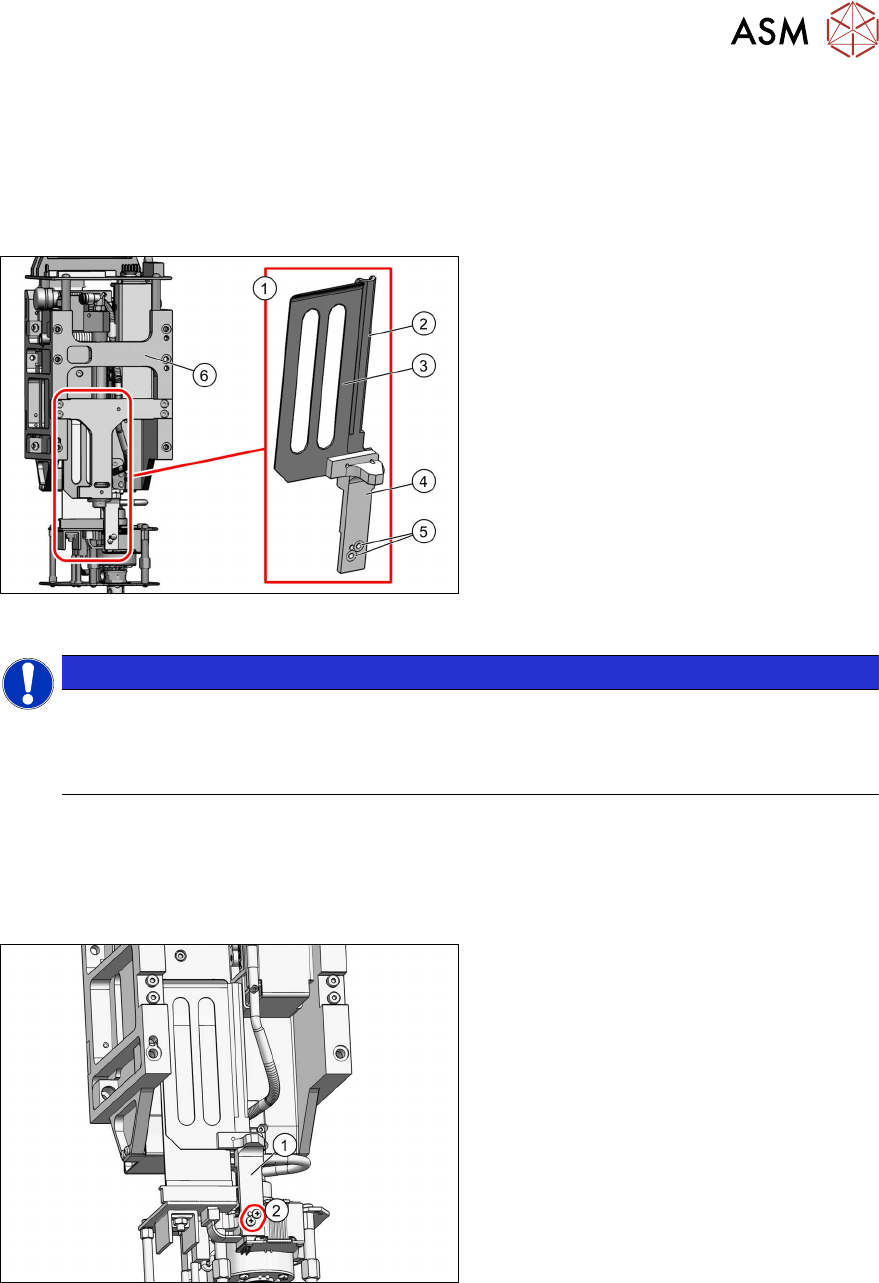

3.3 Replacing the hose and flat ribbon guide (Twin HF only)
Parts
●
Hose and flat ribbon guide for Twin VHF
Overview
Fig.21: Hose and flat ribbon guide for Twin VHF
1. Hose and flat ribbon guide for Twin
VHF [03100959‑xx]
2. Hose guide
3. Flat ribbon baffle
4. Stopper for return unit
5. Two screws fastening the hose and flat
ribbon guide
6. Return unit mount*
The hose and flat ribbon guide consists of
the hose guide, the flat ribbon baffle and the
return unit stopper.
NOTICE
*Return unit mount
The following section illustrates the Twin VHF without the mount for the return unit. This is
for clarity purposes only. The mount does not need to be removed when dismantling the
hose and flat ribbon guide.
Preparation
► Remove the head from the machine. For details about removing and fitting the placement
head, refer to the service manual for your machine.
Removal
Fig.22: Stopper for return unit
► Remove the two fastening screws(2)
and then remove the return unit(1)
stopper.
