4 Pneumatic and pressure control valve (PRV)
4.3 Calibrating the digital PRV
34 Service Manual SIPLACE TwinStar (Twin, Twin HF, Twin VHF) 07/2020

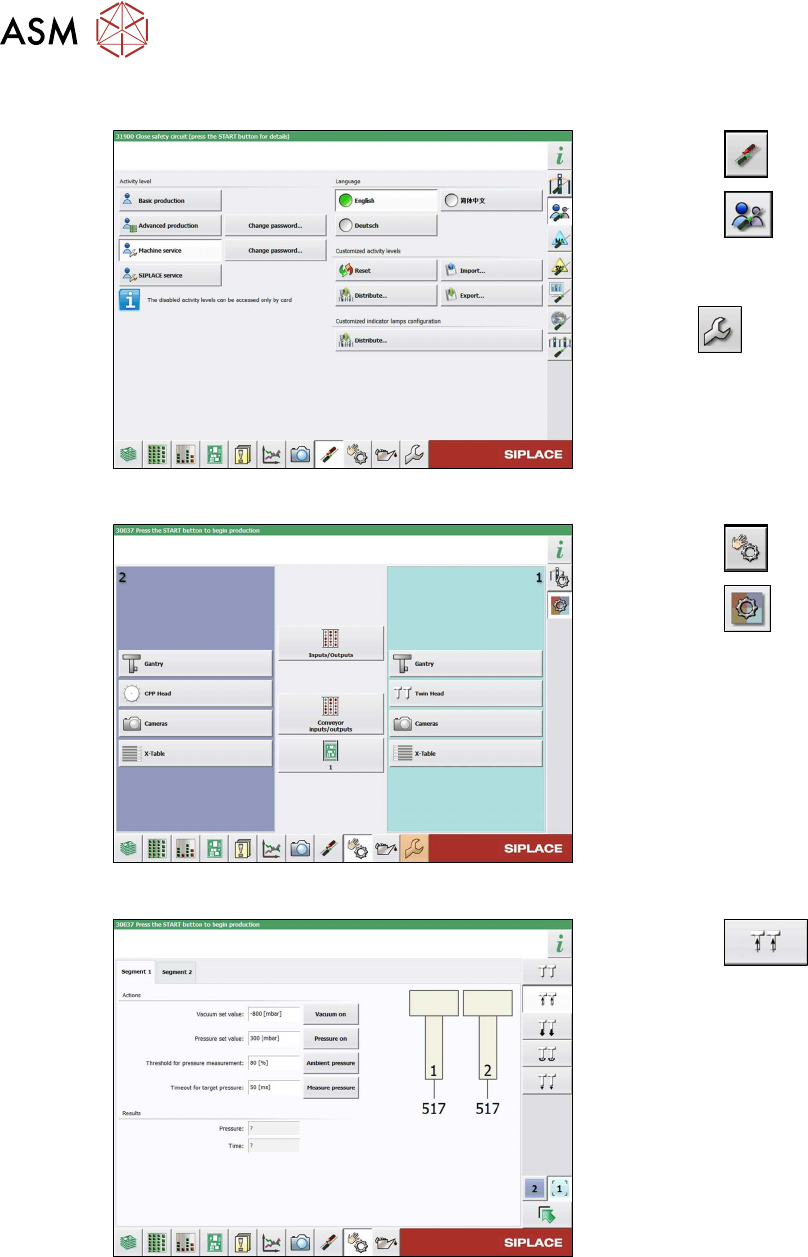

4.3.3 Checking the Pressure Tightness of the Vacuum System
Fig.43: Select operator level
► Select the button.
► Select the button.
► Switch over to the operator level Ma-
chine service.
ð The button will be shown.
Fig.44: Sensors and Functions menu
► Select the button
► Select the button.
► Select the placement head.
Fig.45: Vacuum Functions menu
► Select the button.
► Switch over to the Segment 1 or Seg-
ment 2. tab.
► Select the Vacuum on. button.
► Seal the nozzle with a finger and select
the Measure pressure
button.
4 Pneumatic and pressure control valve (PRV)
4.3 Calibrating the digital PRV
Service Manual SIPLACE TwinStar (Twin, Twin HF, Twin VHF) 07/2020 35
4.3.4 Checking the Air Blast
Fig.46: Select operator level
► Select the button.
► Select the button.
► Switch over to the operator level Ma-
chine service.
ð The button will be shown.
Fig.47: Sensors and Functions menu
► Select the button
► Select the button.
► Select the placement head.
Fig.48: Vacuum Functions menu
► Select the button.
► Switch over to the Segment 1 or Seg-
ment 2. tab.
► Select the Switch pressure on button.
► Seal the nozzle with a finger and select
the Measure pressure
button.
4 Pneumatic and pressure control valve (PRV)
4.4 Replace hoses
36 Service Manual SIPLACE TwinStar (Twin, Twin HF, Twin VHF) 07/2020
4.4 Replace hoses
Spare parts
Select the required spare part:
●
Silicone hose 4.5x2.5 1m [03013166Sxx]
This hose has a length of 1 meter and must be cut to the required length. It replaces the fol-
lowing hoses:
– Silicone hose 4.5x2.5x96 [03046416‑xx] (length: 96mm)
– Silicone hose 4.5x2.5x26 [03046203‑xx] (length: 26mm)
– Silicone hose 4.5x2.5x90 [03053643‑xx] (length: 90mm)
– Silicone hose 4.5x2.5x60 [03053642‑xx] (length: 60mm)
●
Hose 4*2.5 PUR TU 0425 BU-20 [00334552‑xx]
(Replaces: connection hose to machine for return unit Z axis [03068841‑xx], length: 350mm)
Overview
Fig.49: Overview of hoses
1. Silicone hose 4.5x2.5x60 [03053642-xx]
(blue)
Length: 60 mm
The hose leads from the PRV to the
filter.
2. Silicone hose 4.5x2.5x90 [03053643-xx]
(green)
Length: 90 mm
The hose leads from the filter to the
precision tube at the top.
Fig.50: Overview of hoses
1. Silicone hose 4.5x2.5x26 [03046203-xx]
(orange)
Length: 26 mm
The hose leads from the elbow or strain
relief to the rotary supply.
2. Silicone hose 4.5x2.5x96 [03046416-xx]
(red)
Length: 96 mm
The hose leads from the precision tube
at the bottom to the elbow or strain relief.
 CAUTION!
Make sure that the silicone hose (1)
(orange) is not twisted when you fit it.
.
