4 Pneumatic and pressure control valve (PRV) 4.6 Replacing the sleeve with ball fixing/seal Service Manual SIPLACE TwinStar (Twin, Twin HF, Twin VHF) 07/2020 45 Installation Fig.66: Inserting the seal ► Fit a new seal i…

4 Pneumatic and pressure control valve (PRV)

4.6 Replacing the sleeve with ball fixing/seal

44 Service Manual SIPLACE TwinStar (Twin, Twin HF, Twin VHF) 07/2020

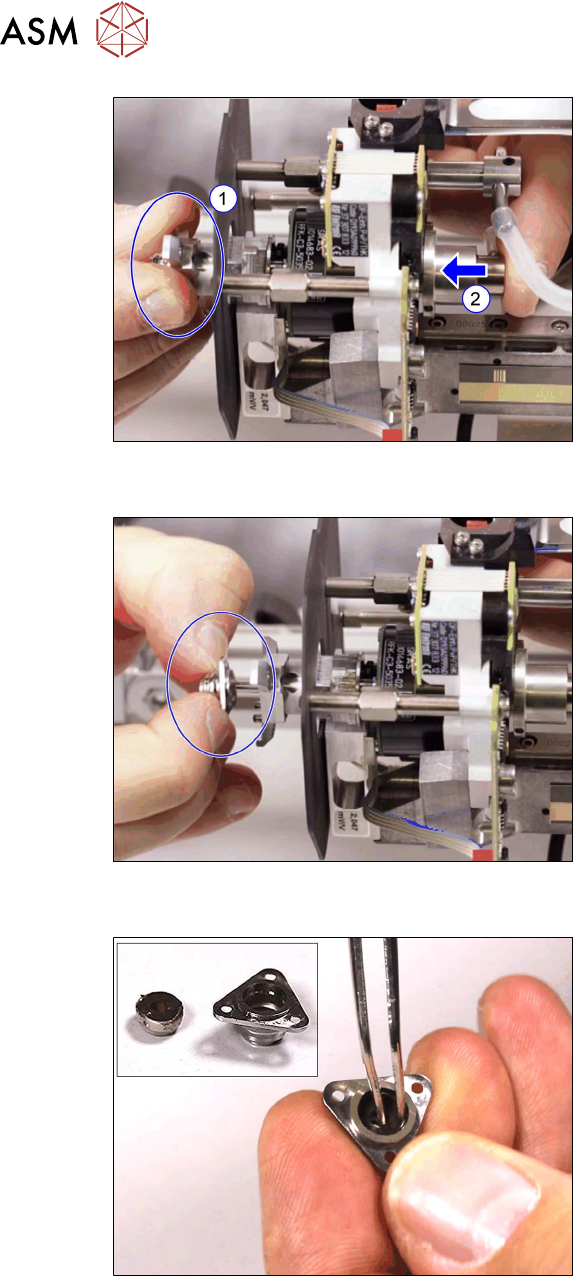

Fig.63: Unlocking the sleeve with ball fixing (example of

Twin / Twin HF shown)

To unlock the sleeve with ball fixing, pro-

ceed as follows:

► Hold the nozzle interface in position (1)

while pressing against the pneumatic

rotary supply (2)

Fig.64: Removing the sleeve with ball fixing (example of

Twin / Twin HF shown)

► Pull the sleeve with ball fixing off the

pipe of the pneumatic rotary supply.

Fig.65: Remove the seal

► Remove the seal from the sleeve with

ball fixing.

4 Pneumatic and pressure control valve (PRV)

4.6 Replacing the sleeve with ball fixing/seal

Service Manual SIPLACE TwinStar (Twin, Twin HF, Twin VHF) 07/2020 45

Installation

Fig.66: Inserting the seal

► Fit a new seal in the sleeve with ball fix-

ing. Make sure that the flat side is fa-

cing upwards.

Fig.67: Inserting the seal

► Press the seal into the sleeve with ball

fixing, until the groove(1)

on the inside

is visible.

Make sure that the flat side is facing

upwards.

 CAUTION!

Seal

Take care not to damage the seal

while pressing it in! Do not use any

sharp-edged tools.

Fig.68: Fitting the sleeve with ball fixing (example of Twin /

Twin HF shown)

► Fit the sleeve with ball fixing onto the

pneumatic rotary supply pipe at a slight

angle, to avoid damaging the seal.

4 Pneumatic and pressure control valve (PRV)

4.6 Replacing the sleeve with ball fixing/seal

46 Service Manual SIPLACE TwinStar (Twin, Twin HF, Twin VHF) 07/2020

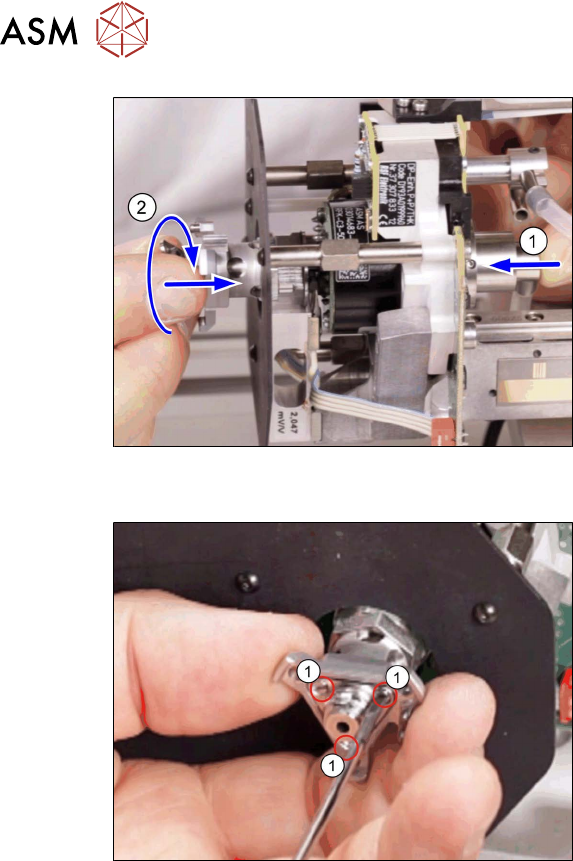

Fig.69: Positioning the sleeve with ball fixing (example of

Twin / Twin HF shown)

► Hold the pneumatic rotary supply(1)

firmly in position, while you press the

sleeve with ball fixing onto the pipe with

a turning motion (2)

Fig.70: Fastening the sleeve with ball fixing (example of

Twin / Twin HF shown)

► Fasten the sleeve with ball fixing with

three screws(1)

(hand-tight).

► Fit the buffer.

3.1 "Replacing the return unit buffer" [}17]

Follow the removal instructions in reverse order for further installation. Also observe the following

instructions:

► After fitting the elbow version 1, check the pneumatic rotary supply for centricity.

4.4.1.1

"Replacement of elbow version 1" [}38]
