4 Pneumatic and pressure control valve (PRV) 4.6 Replacing the sleeve with ball fixing/seal 46 Service Manual SIPLACE TwinStar (Twin, Twin HF, Twin VHF) 07/2020 Fig.69: Positioning the sleeve with ball fixing (example o…
4 Pneumatic and pressure control valve (PRV)
4.6 Replacing the sleeve with ball fixing/seal
Service Manual SIPLACE TwinStar (Twin, Twin HF, Twin VHF) 07/2020 45
Installation
Fig.66: Inserting the seal
► Fit a new seal in the sleeve with ball fix-
ing. Make sure that the flat side is fa-
cing upwards.
Fig.67: Inserting the seal
► Press the seal into the sleeve with ball
fixing, until the groove(1)
on the inside
is visible.
Make sure that the flat side is facing
upwards.
CAUTION!
Seal
Take care not to damage the seal
while pressing it in! Do not use any
sharp-edged tools.
.
Fig.68: Fitting the sleeve with ball fixing (example of Twin /
Twin HF shown)
► Fit the sleeve with ball fixing onto the
pneumatic rotary supply pipe at a slight
angle, to avoid damaging the seal.
4 Pneumatic and pressure control valve (PRV)
4.6 Replacing the sleeve with ball fixing/seal
46 Service Manual SIPLACE TwinStar (Twin, Twin HF, Twin VHF) 07/2020
Fig.69: Positioning the sleeve with ball fixing (example of
Twin / Twin HF shown)
► Hold the pneumatic rotary supply(1)
firmly in position, while you press the
sleeve with ball fixing onto the pipe with
a turning motion (2)
.
Fig.70: Fastening the sleeve with ball fixing (example of
Twin / Twin HF shown)
► Fasten the sleeve with ball fixing with
three screws(1)
(hand-tight).
► Fit the buffer.
3.1 "Replacing the return unit buffer" [}17]
Follow the removal instructions in reverse order for further installation. Also observe the following
instructions:
► After fitting the elbow version 1, check the pneumatic rotary supply for centricity.
4.4.1.1
"Replacement of elbow version 1" [}38]
4 Pneumatic and pressure control valve (PRV)
4.7 Replacing the pneumatic rotary supply
Service Manual SIPLACE TwinStar (Twin, Twin HF, Twin VHF) 07/2020 47
4.7 Replacing the pneumatic rotary supply
Parts
●
Pneumatic rotary supply [03004609Sxx] incl. hose and screws (suitable for all Twin types)
●
Seal for sleeve with ball fixing P&P module [03020698‑xx] (suitable for all Twin types)
When replacing the pneumatic, also replace the seal, as this keeps the rotary supply tube
centrally aligned to the sleeve with ball fixing.
Overview

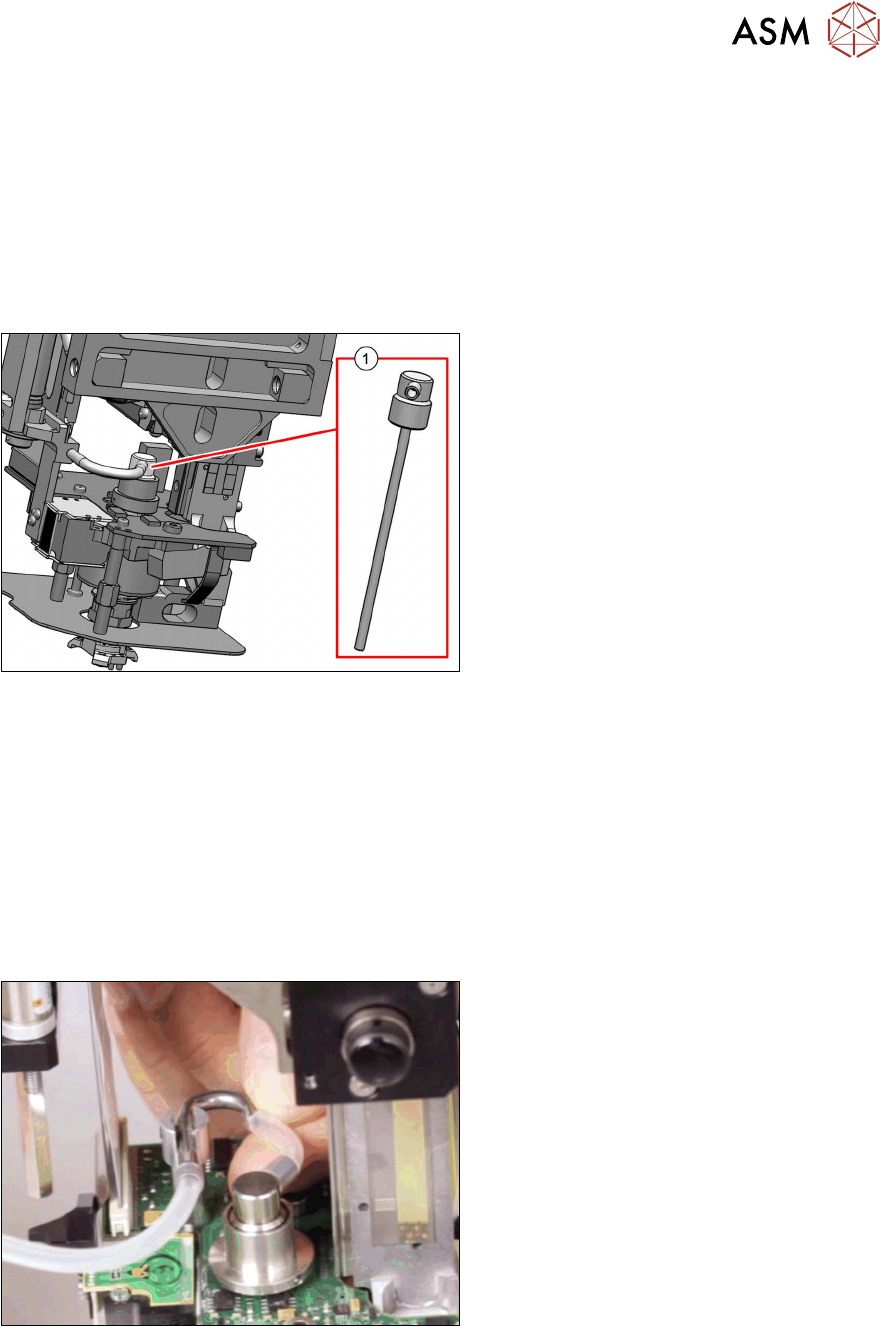

Fig.71: Pneumatic rotary supply
1. Pneumatic rotary supply [03004609-xx]
Preparation
► Remove the head from the machine. For details about removing and fitting the placement
head, refer to the service manual for your machine.
Removal
► Dismantle the buffer.
3.1 "Replacing the return unit buffer" [}17]
► Dismantle the sleeve with ball fixing.
4.6 "Replacing the sleeve with ball fixing/seal" [}43]
Fig.72: Disconnecting the hose
► Disconnect the short hose from the el-
bow.
