4 Pneumatic and pressure control valve (PRV) 4.8 Replacing the force measuring unit and the trick and feather unit 52 Service Manual SIPLACE TwinStar (Twin, Twin HF, Twin VHF) 07/2020 4.8.2 Removal Fig.85: Screws fasten…

4 Pneumatic and pressure control valve (PRV)

4.8 Replacing the force measuring unit and the trick and feather unit

Service Manual SIPLACE TwinStar (Twin, Twin HF, Twin VHF) 07/2020 51

4.8 Replacing the force measuring unit and the trick and

feather unit

4.8.1 Parts

NOTICE

Since the spring pre-tension needs to be checked and set after replacement, the trick and

feather unit can only be replaced if there is also a Head Care Station available and respect-

ive training has been given. Read the technical information "Approval of spare parts for the

TwinHead Dreheinheit" [DE:TI2018‑11D04] [EN:TI2018‑11E04].

Select the required spare part:

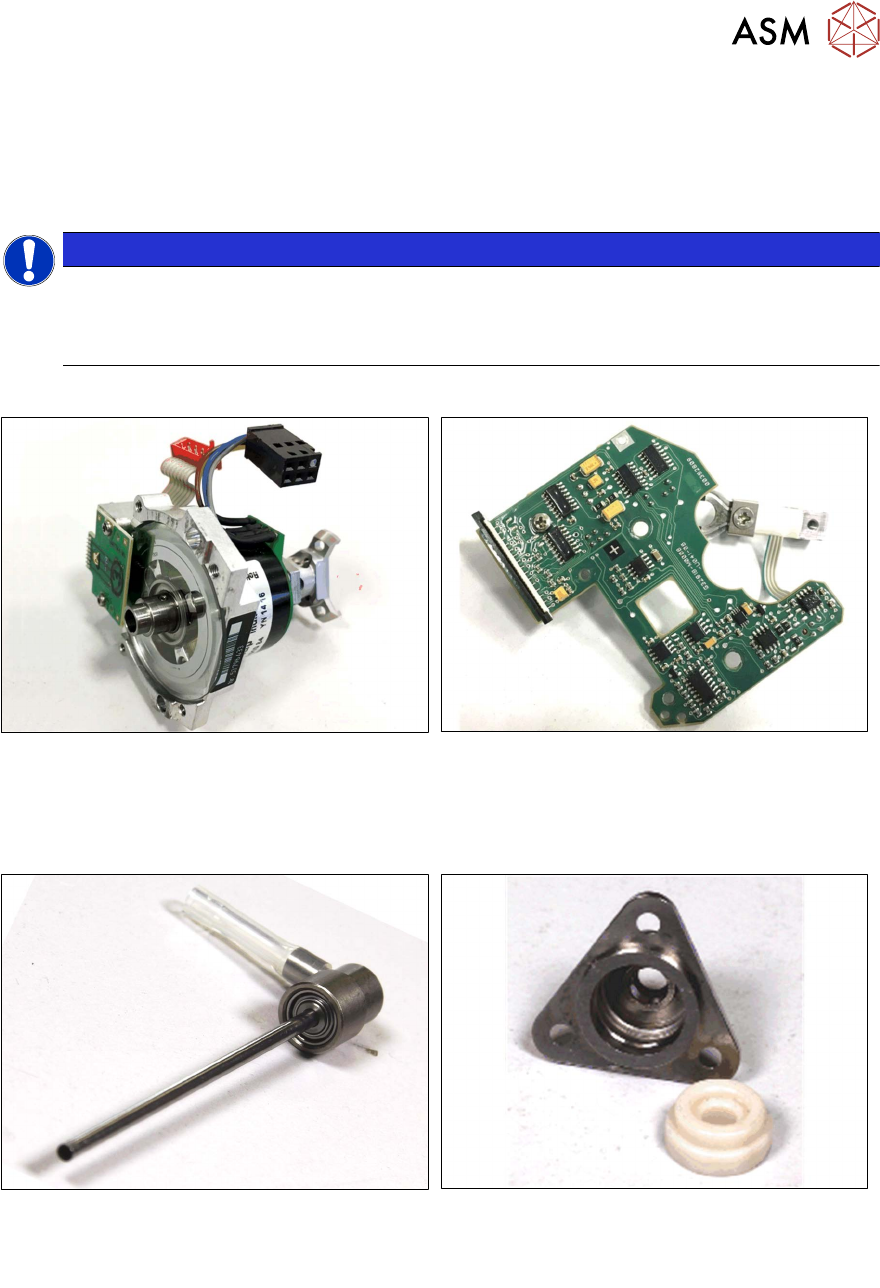

Fig.81: Trick and feather unit P&P module

[03029034Sxx]

When replacing the trick and feather unit, we

also recommend that you replace the pneumatic

rotary supply:

Fig.82: Force measuring unit TwinHead [03012783Sxx]

Fig.83: Pneumatic rotary supply [03004609Sxx]

See also: 4.7 "Replacing the pneumatic rotary

supply" [}47]

Fig.84: Seal, interface P+P-module [03020698‑xx]

See also: 4.7 "Replacing the pneumatic rotary

supply" [}47]

4 Pneumatic and pressure control valve (PRV)

4.8 Replacing the force measuring unit and the trick and feather unit

52 Service Manual SIPLACE TwinStar (Twin, Twin HF, Twin VHF) 07/2020

4.8.2 Removal

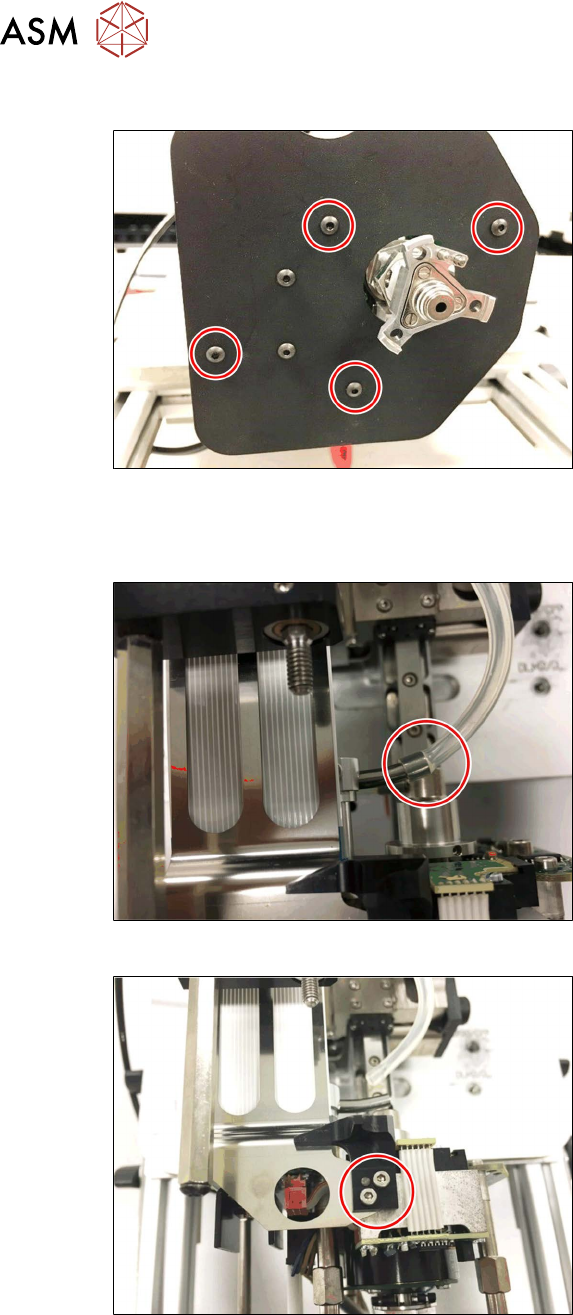

Fig.85: Screws fastening the camera lens hood

► Remove the four fastening screws and

take off the camera lens hood.

► Dismantle the buffer on the return unit.

3.1 "Replacing the return unit buffer" [}17]

Fig.86: Hose on the pneumatic rotary supply

► Pull the hose off the pneumatic rotary

supply.

Fig.87: Removing the return unit end stop

► Remove the two screws and then

remove the return unit end stop.

4 Pneumatic and pressure control valve (PRV)

4.8 Replacing the force measuring unit and the trick and feather unit

Service Manual SIPLACE TwinStar (Twin, Twin HF, Twin VHF) 07/2020 53

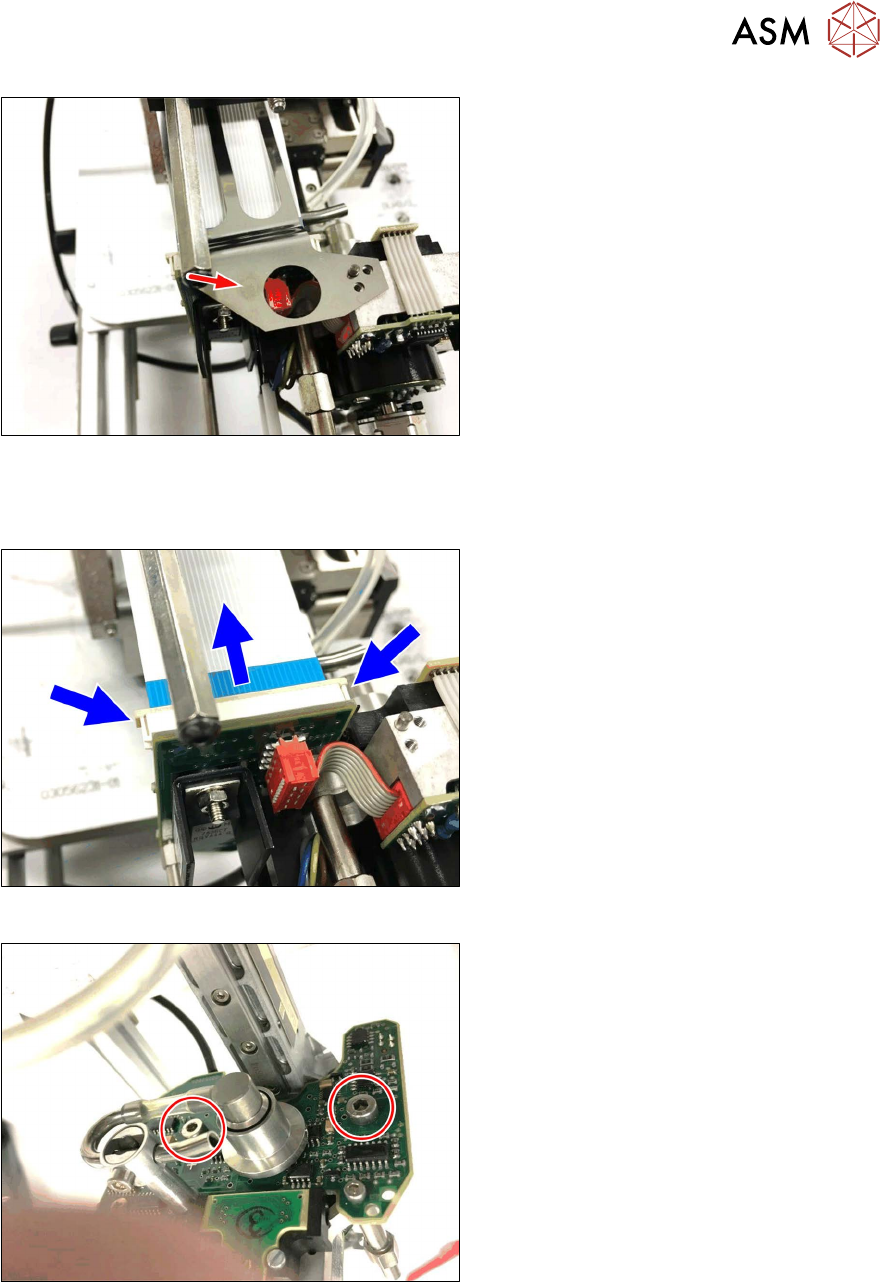

Fig.88: Removing the cable guide

► Remove the cable guide for the flex-

print cable.

► Dismantle the hose guidance, the flat ribbon baffle and the stopper.

3.3 "Replacing the hose and flat ribbon guide (Twin HF only)" [}23]

Fig.89: Disconnect the control cable

► Open the lock on the control cable and

disconnect the control cable.

Fig.90: Screw fastening the force measuring board

► Remove the two screws fastening the

TwinHead force measuring unit.
