Move the component cart for gantry 1 out of the placement machine.
:
Detach the waste tape chute.
:
At placement area 1, drill two Ø 5 mm holes in the wall behind the waste tape chute.
The precise position is shown in the drawing.
____________________________________________________________________________
PLEASE NOTE
!
Drill only to a depth of 10 mm. Do not drill right through the wall, otherwise the cables behind the
wall may be damaged.
___________________________________________________________________________
Vacuum Tooling for HS-50 Retrofit Instructions / User Manual
4 Installing the compressed air supply Edition 12/00
38
:
Tap an M6x8 thread in the hole.
:

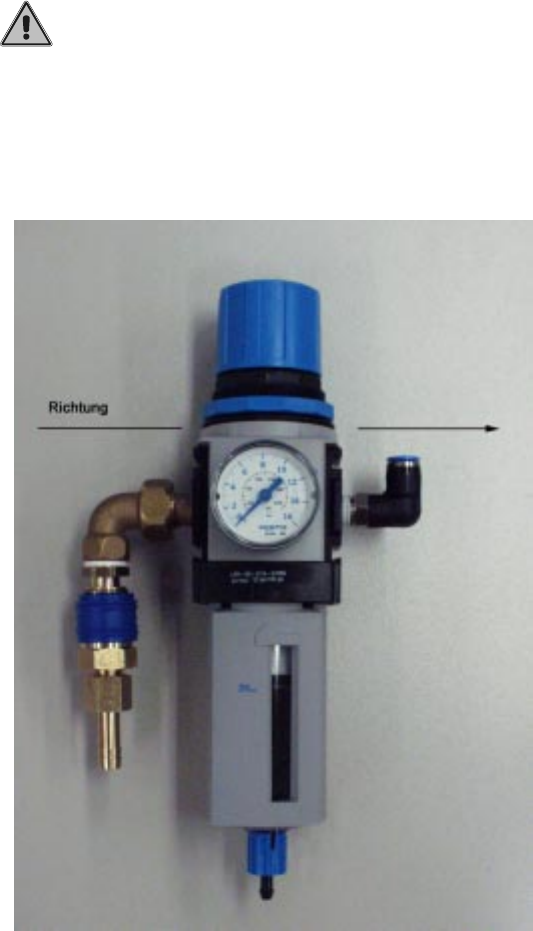

Assemble the compressed air maintenance unit (see photograph below).
The compressed air flows from left to right.
____________________________________________________________________________
PLEASE NOTE
!
Make sure that the air flows through the compressed air maintenance unit in the correct
direction.
___________________________________________________________________________
: Use two M6 x 8 fillister head screws to fix the bracket.

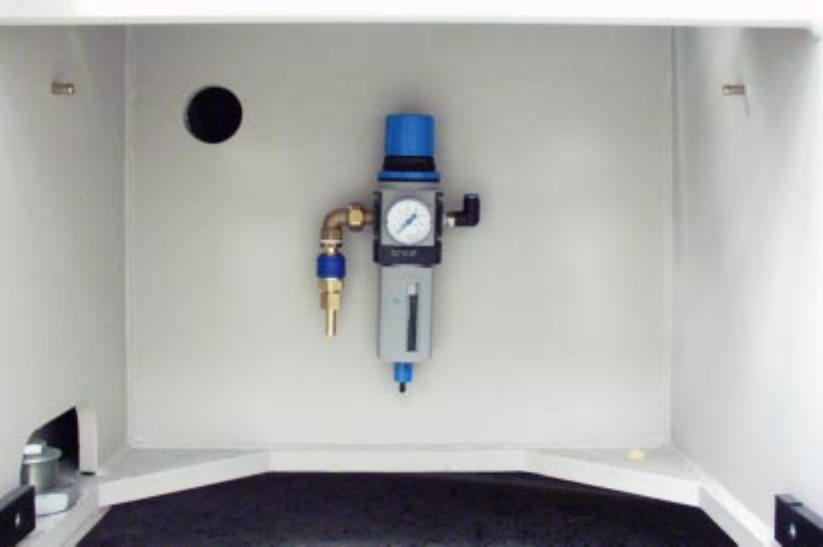

Place the compressed air maintenance unit (see photograph below) on the bracket.
Retrofit Instructions / User Manual Vacuum Tooling for HS-50
Edition 12/00 4 Installing the compressed air supply
39
:
Measure the distance to the intended position for the compressed air distributor, then cut the
compressed air hose to the required length.
:
Connect the hose to the compressed air maintenance unit.
:
Run the hose up and into the cable duct. It may be necessary to break a tab out of the cable
duct in order to introduce the hose.
(Run the hose as for the ceramic substrate centering unit).
