1 5 Operation Box Operation Box (Option) LE1-0802 4 5 6 7 8 1,2 3 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 LE1-M5601-00 UY CASE 1 2 LE1-M5602-00 UY CASE ADD 1 3 LE1-M5603-00 LABEL 1 4 LE1-M50…
2
4
Marker Pen AS (200)
Marker Pen Unit (Option)
LE1-1012
7
22
22
23
23
25
8
18
4
18
14
22
12
15
10
21
6
23
20
16
2
1
11
17
3
19
26
22
20
5
22
24
9
13
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 LE1-M5102-20 HOLDER, PEN 1
2 LE1-M5103-20 STOPPER, PEN 1
3 LE1-M5107-00 ADAPTER 1
4 LE1-M5120-00 BRKT. PEN 1 1
5 LE1-M5121-00 BRKT. PEN 2 1
6 LE1-M5122-00 BRKT. PEN 3 1
7 LE1-M5123-00 BRKT. DOG 1
8 LE1-M5124-00 BLOCK, GUIDE 1
9 LE1-M51A1-00 GUIDE 2
10 LE1-M51A4-00 SPRING 1
11
LE3-M51D1-20 PEN, MARKER(LR) 1 Big pen RED
LE3-M51D1-30 PEN, MARKER(LB) 1 Big pen BLUE
LE3-M51D2-20 PEN, MARKER(SR) 1 Small pen RED
LE3-M51D2-30 PEN, MARKER(SB) 1 Small pen BLUE
12 LE1-M66J0-00 MOTOR ASSY 1
13 LE1-M66J6-01 MKUP SN ASSY 1
14 LE1-M66J1-01 MKDWN SN ASSY 1
15 90990-33J005 BOLT. STPPER 1
16 90990-47J001 KNOB 1
17 90990-50J002 PIN, HINGE 1
18 $NK3-3M NYLON CLIP 2
19 91312-03004 BOLT HEX.SOCKET HEAD 2 M3X4
20 91312-03005 BOLT HEX.SOCKET HEAD 8 M3X5
21 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
22 91312-03008 BOLT HEX.SOCKET HEAD 14 M3X8
23 91312-04005 BOLT HEX.SOCKET HEAD 4 M4X5
24 91312-05008 BOLT HEX.SOCKET HEAD 2 M5X8
25 91312-05010 BOLT HEX.SOCKET HEAD 4 M5X10
26 92902-03200 WASHER, PLAIN 2
1
5
Operation Box
Operation Box (Option)
LE1-0802
4
5
6
7
8
1,2
3
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 LE1-M5601-00 UY CASE 1
2 LE1-M5602-00 UY CASE ADD 1
3 LE1-M5603-00 LABEL 1
4 LE1-M50HC-00 PUSH SW BLUE 30 1
5 LE1-M50HD-00 PUSH SW RED 30 1
6 LE1-M50HE-00 PUSH SW PINK 30 1
7 LE1-M50HF-00 PUSH SW YELW 30 1
8 LE1-M50HT-00 CONNCTR PM 1
1
6

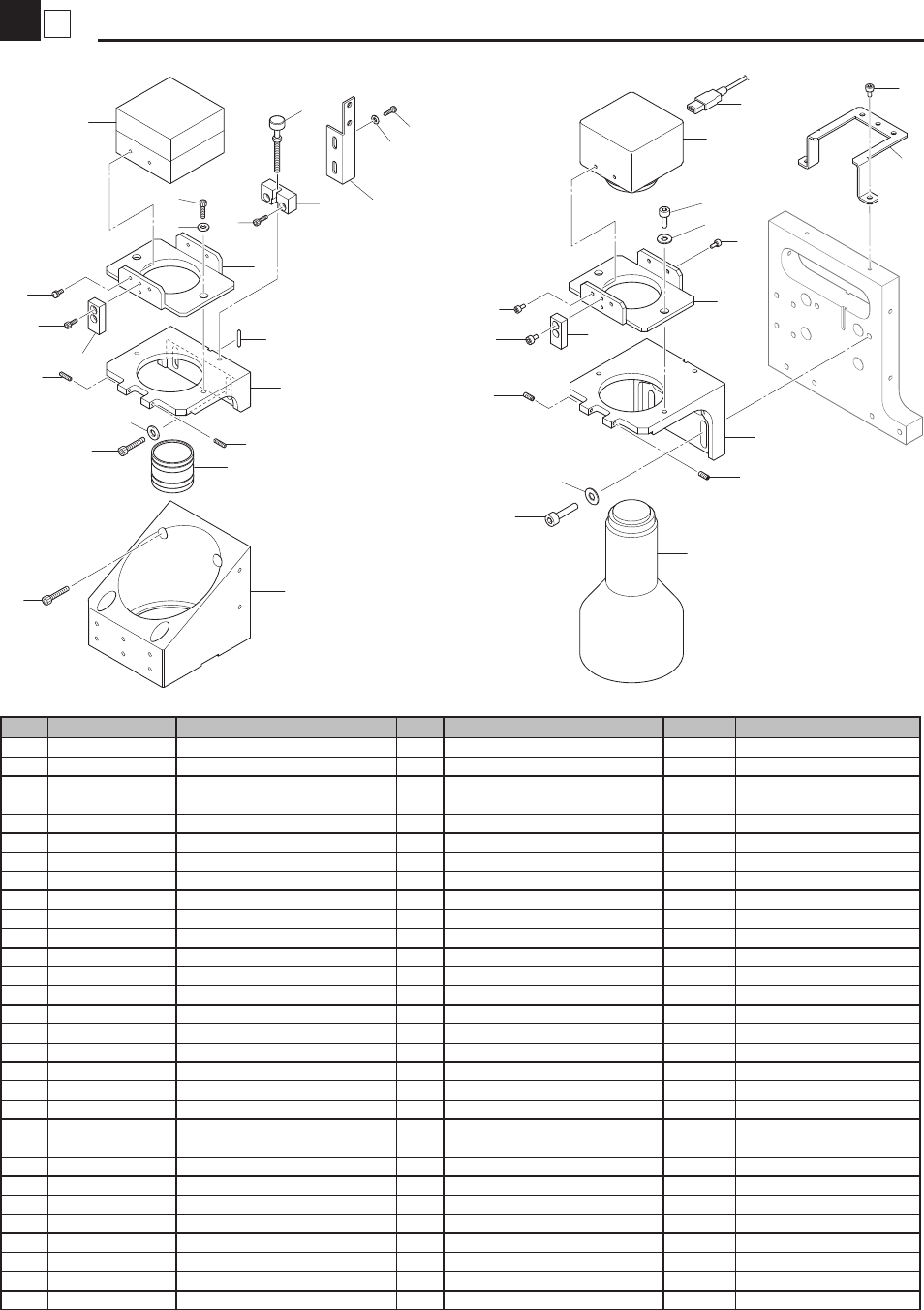

Vision Head
Vision Head
LE1-1012
28
6
18
25
3
4
19
2
7
1
8
10
21
29
5
18
16
22
20
11
14
21
26
24
24
17
2
5
30
30
27
23
12
13
17
30
30
9
15
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 LE1-M7201-02 BRACKET,CAMERA(1) 1
2 LE1-M7202-01 BRACKET,CAMERA(2) 2
3 LE1-M7203-00 BLOCK 1
4 LE1-M7204-00 BRACKET 1
5 LE1-M7205-00 BLOCK 2
6 LE1-M72A0-00 BOLT,ADJUST 1
7 LE1-M72A1-00 KEY 1
8 LE1-M72A2-00 LENS 1
9 LE1-M72H0-00 COLOR CAM80U 1
10 LE1-M7301-01 BRACKET,LIGHTING 1
11 LE1-M7201-10 BRKT. CAMERA 1
12 LC3-M76A2-20 LENS 1
13 LE1-M7216-05 BRKT, USB 1
14 LE1-M72H1-01 COLOR CAM200U 1
15 LE1-M72H3-00 CAMERA ROBOT 1
16 LG7-M71GY-30 BOLT HEX. SOCKET HEAD 4 M2X6
17 91312-03005 BOLT HEX. SOCKET HEAD 4 M3X5
18 91312-03006 BOLT HEX. SOCKET HEAD 4 M3X6
19 91312-03008 BOLT HEX. SOCKET HEAD 2 M3X8
20 91312-04008 BOLT HEX. SOCKET HEAD 2 M4X8
21 91312-04010 BOLT HEX. SOCKET HEAD 6 M4X10
22 91312-05016 BOLT HEX. SOCKET HEAD 2 M5X16
23 91312-05020 BOLT HEX. SOCKET HEAD 2 M5X20
24 90112-2BJ005 BOLT HEX. SOCKET HEAD 4
25 92907-03200 WASHER PLAIN 2
26 92902-04200 WASHER PLAIN 2
27 92902-05200 WASHER PLAIN 2
28 92907-04200 WASHER PLAIN 2
29 92907-05200 WASHER PLAIN 2
30 92A08-03308 SET SCREW 4
