2 4 Marker Pen AS (200) Marker Pen Unit (Option) LE1-1012 7 22 22 23 23 25 8 18 4 18 14 22 12 15 10 21 6 23 20 16 2 1 1 1 17 3 19 26 22 20 5 22 24 9 13 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date …
1
4

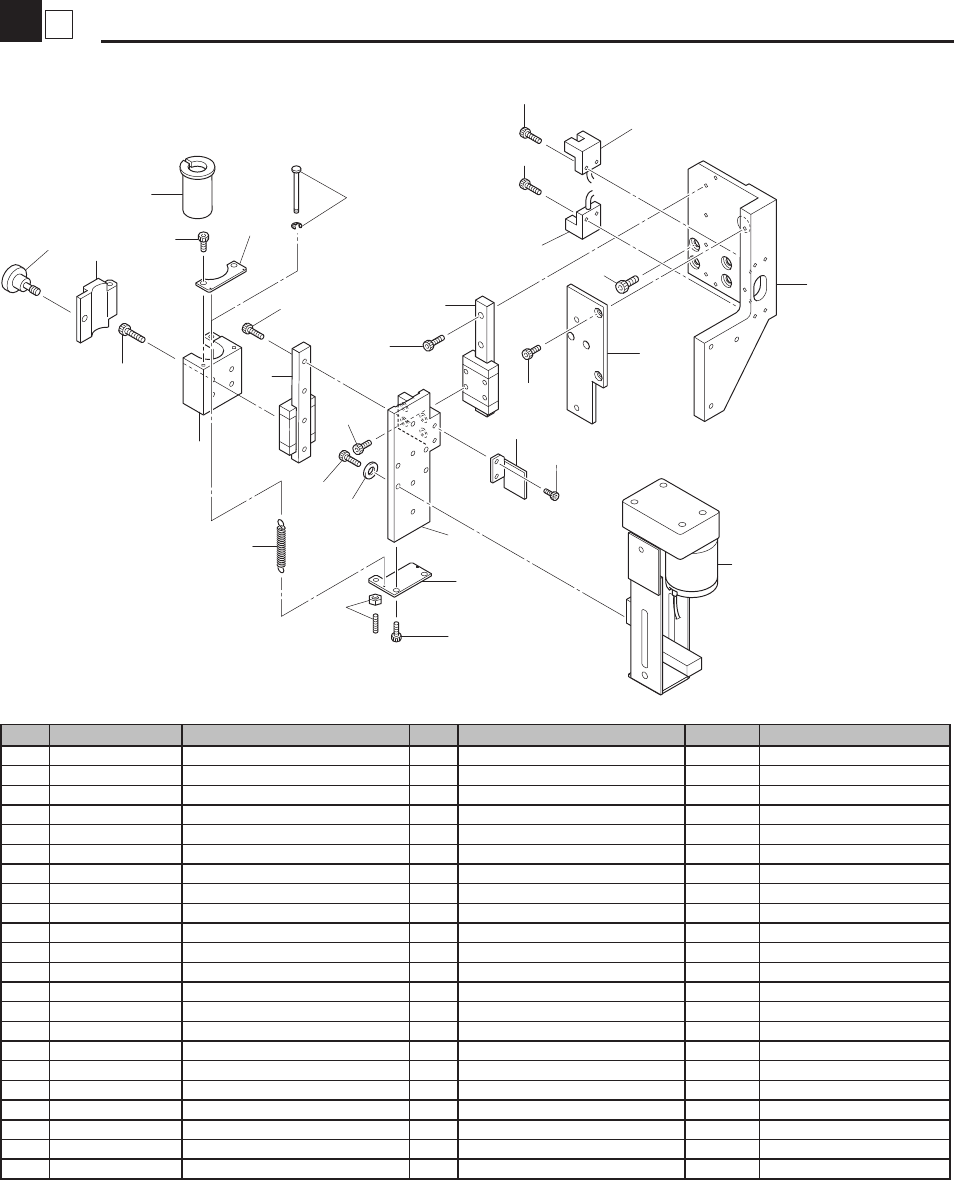

Marker Pen Unit
Marker Pen Unit (Option)
LE1-0802
21
21
16
16
10
10
21
21
4
20
7
11
3
21
2
22
17
9
8
18
6
1
5
20
19
18
14
20
13
12
15
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 LE1-M5101-03 BASE,GUIDE 1
2 LE1-M5102-02 HOLDER,PEN 1
3 LE1-M5103-01 STOPPER,PEN 1
4 LE1-M5104-02 HOOK 1
5 LE1-M5105-02 HOOK 1
6 LE1-M5106-01 PLATE,SENSOR 1
7 LE1-M5107-00 ADAPTER 1
8 LE1-M5111-02 PLATE 1
9 LE1-M5113-01 PLATE 1
10 LE1-M51A1-00 GUIDE 2
11 LE1-M51A2-00 KNOB 1
12 LE1-M51A3-00 PIN,HINGE 1
13 LE1-M51A4-00 SPRING 1
14 LC2-M912T-00 STOPPER 1
15 LE1-M50H7-00 LINER MOTOR 1
16 LC2-M654R-00 SENSOR. 2
17 LC7-M71G5-10 BOLT HEX.SO.LO HEAD 2
18 92D11-2F005 BOLT HEX. SOCKET HEAD 4
19 LG0-M71FP-50 WASHER PLAIN(S) 6
20 91317-03006 BOLT HEX. SOCKET HEAD 10 M3X6
21 91317-03008 BOLT HEX. SOCKET HEAD 18 M3X8
22 91317-04010 BOLT HEX. SOCKET HEAD 4 M4X10
2
4
Marker Pen AS (200)
Marker Pen Unit (Option)
LE1-1012
7
22
22
23
23
25
8
18
4
18
14
22
12
15
10
21
6
23
20
16
2
1
11
17
3
19
26
22
20
5
22
24
9
13
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 LE1-M5102-20 HOLDER, PEN 1
2 LE1-M5103-20 STOPPER, PEN 1
3 LE1-M5107-00 ADAPTER 1
4 LE1-M5120-00 BRKT. PEN 1 1
5 LE1-M5121-00 BRKT. PEN 2 1
6 LE1-M5122-00 BRKT. PEN 3 1
7 LE1-M5123-00 BRKT. DOG 1
8 LE1-M5124-00 BLOCK, GUIDE 1
9 LE1-M51A1-00 GUIDE 2
10 LE1-M51A4-00 SPRING 1
11
LE3-M51D1-20 PEN, MARKER(LR) 1 Big pen RED
LE3-M51D1-30 PEN, MARKER(LB) 1 Big pen BLUE
LE3-M51D2-20 PEN, MARKER(SR) 1 Small pen RED
LE3-M51D2-30 PEN, MARKER(SB) 1 Small pen BLUE
12 LE1-M66J0-00 MOTOR ASSY 1
13 LE1-M66J6-01 MKUP SN ASSY 1
14 LE1-M66J1-01 MKDWN SN ASSY 1
15 90990-33J005 BOLT. STPPER 1
16 90990-47J001 KNOB 1
17 90990-50J002 PIN, HINGE 1
18 $NK3-3M NYLON CLIP 2
19 91312-03004 BOLT HEX.SOCKET HEAD 2 M3X4
20 91312-03005 BOLT HEX.SOCKET HEAD 8 M3X5
21 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
22 91312-03008 BOLT HEX.SOCKET HEAD 14 M3X8
23 91312-04005 BOLT HEX.SOCKET HEAD 4 M4X5
24 91312-05008 BOLT HEX.SOCKET HEAD 2 M5X8
25 91312-05010 BOLT HEX.SOCKET HEAD 4 M5X10
26 92902-03200 WASHER, PLAIN 2
1
5
Operation Box
Operation Box (Option)
LE1-0802
4
5
6
7
8
1,2
3
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 LE1-M5601-00 UY CASE 1
2 LE1-M5602-00 UY CASE ADD 1
3 LE1-M5603-00 LABEL 1
4 LE1-M50HC-00 PUSH SW BLUE 30 1
5 LE1-M50HD-00 PUSH SW RED 30 1
6 LE1-M50HE-00 PUSH SW PINK 30 1
7 LE1-M50HF-00 PUSH SW YELW 30 1
8 LE1-M50HT-00 CONNCTR PM 1
