第五卷 资 料 - 第16页

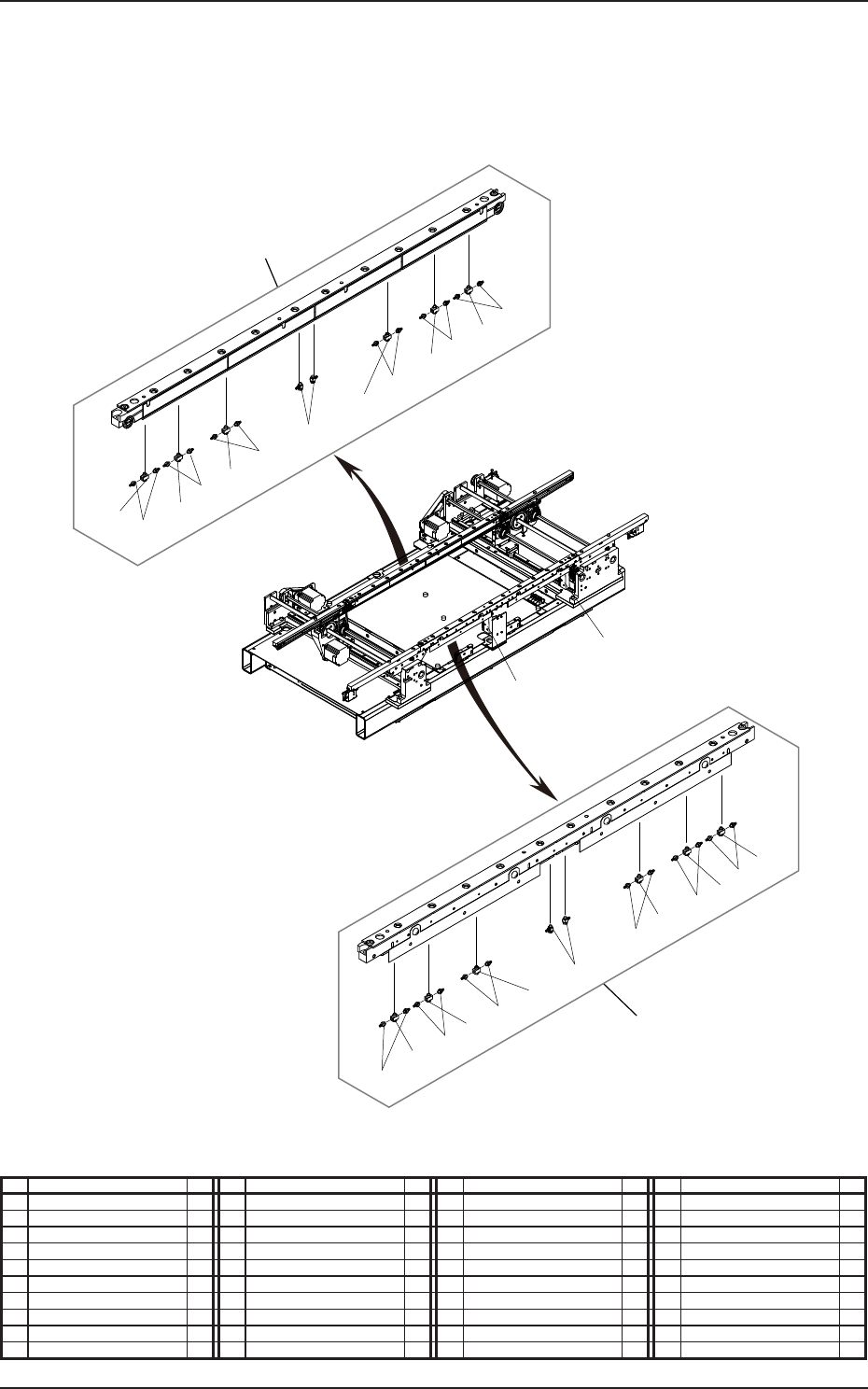

1-8 气路图及实际贴装图 5OM-1752 1306-002 传送带 ( 实际贴装图 ) 6 11 12 No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty 6 Solenoid V alve 1 11 Speed Controller 4 12 Speed Controller 4
1-7
气路图及实际贴装图
5OM-1752
1306-002
传送带 ( 实际贴装图 )
8-2
8-2
8-2
8-3
8-2
8-2
8-2
8-1
8-1
8-1
8-1
8-1
8-1
7-1
7-1
7-1
7-1
7-1
9
10
7-3
7-2
7-2
7-2
7-2
7-2
7-2
7-1
8
7
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
7 Fixed Chute Unit 1
7-1 Universal Tee
7-2 Barb Fitting
7-3 Barb Elbow
8 Movable Chute Unit
8-1 Universal Tee 1
8-2 Barb Fitting
8-3 Barb Elbow
9 PCB Stopper 1
10 PCB Stopper 1
1-8
气路图及实际贴装图
5OM-1752
1306-002
传送带 ( 实际贴装图 )
6
11
12
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
6 Solenoid Valve 1
11 Speed Controller 4
12 Speed Controller 4
1-9
气路图及实际贴装图
5OM-1752
1306-002
定位单元 ( 气路图 )
·通常
Pipe
8
900 mm
6
180 mm
6
230 mm
6
380 mm
6
400 mm
6
2100 mm
6
2000 mm
A
B
Left Side Cylinder
Right Side Cylinder
B
A
A
B
EA
EB
P
2
1
3
5
6
6
From Main Body
Positioning U/D
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
1 Tube
φ
6 1
2 Tube
φ
8 1
3 Union Y 2
5 Solenoid Valve 1
6 Cylinder 2
