1-15 气路图及实际贴装图 5OM-1752 1306-002 安装头部 ( 气路图 ) A V P R A P A V P A V P V alve Filter Rotary Joint φ 8 Fitting φ 8 φ 4 φ 8 Fitting φ 6 Fitting φ 4 Fitting φ 4 Fitting V alve 3 2 1 4 5 6 From Main Body Robot Cable Nozzle1 N…

100%1 / 140
1-14
气路图及实际贴装图
5OM-1752
1306-002

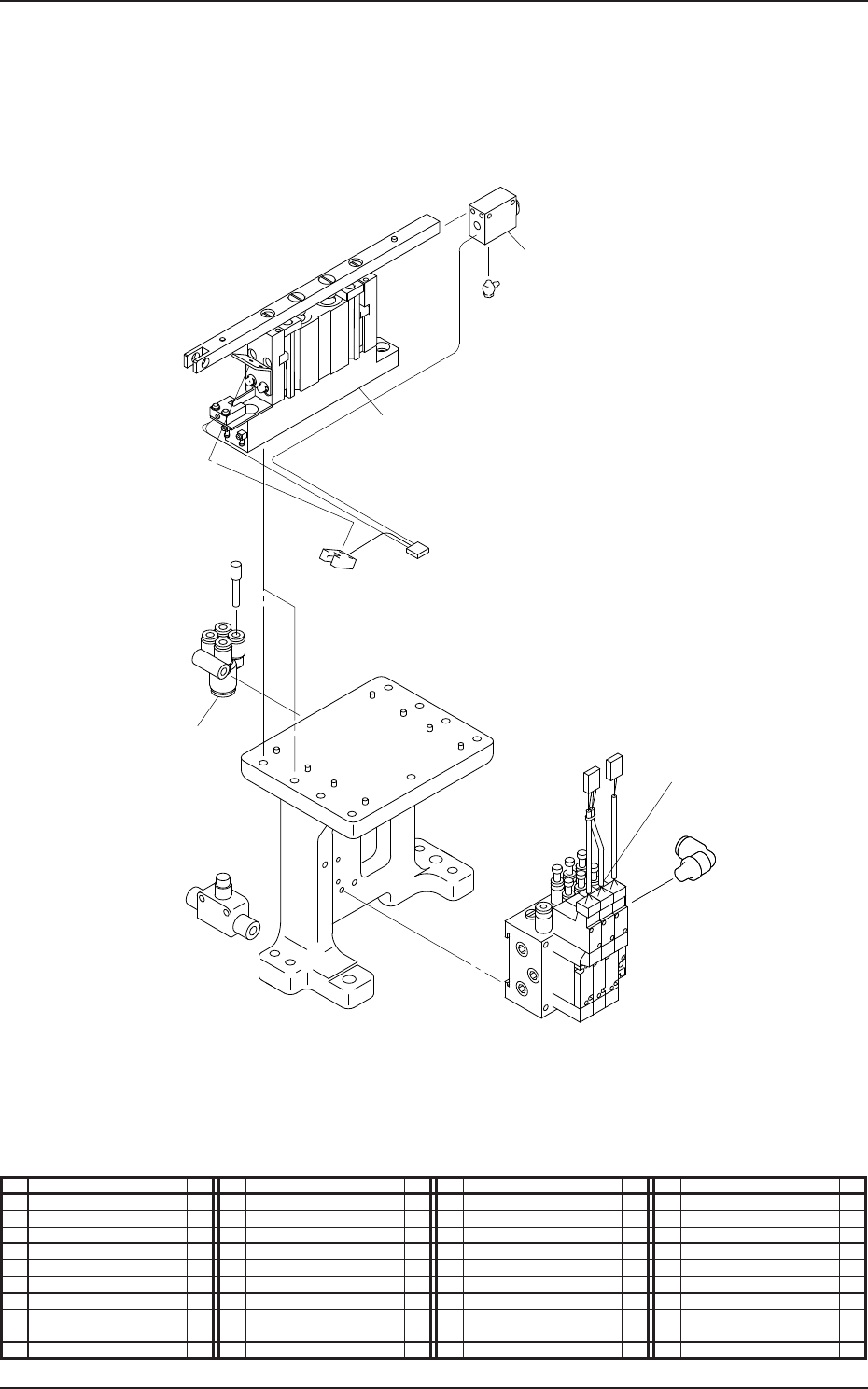

吸嘴储料器 ( 实际贴装图 )
9
4
5
6
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
4 Solenoid Valve 1
5 Cylinder 1
6 Cylinder 1
9 Union Y
1-15
气路图及实际贴装图
5OM-1752
1306-002

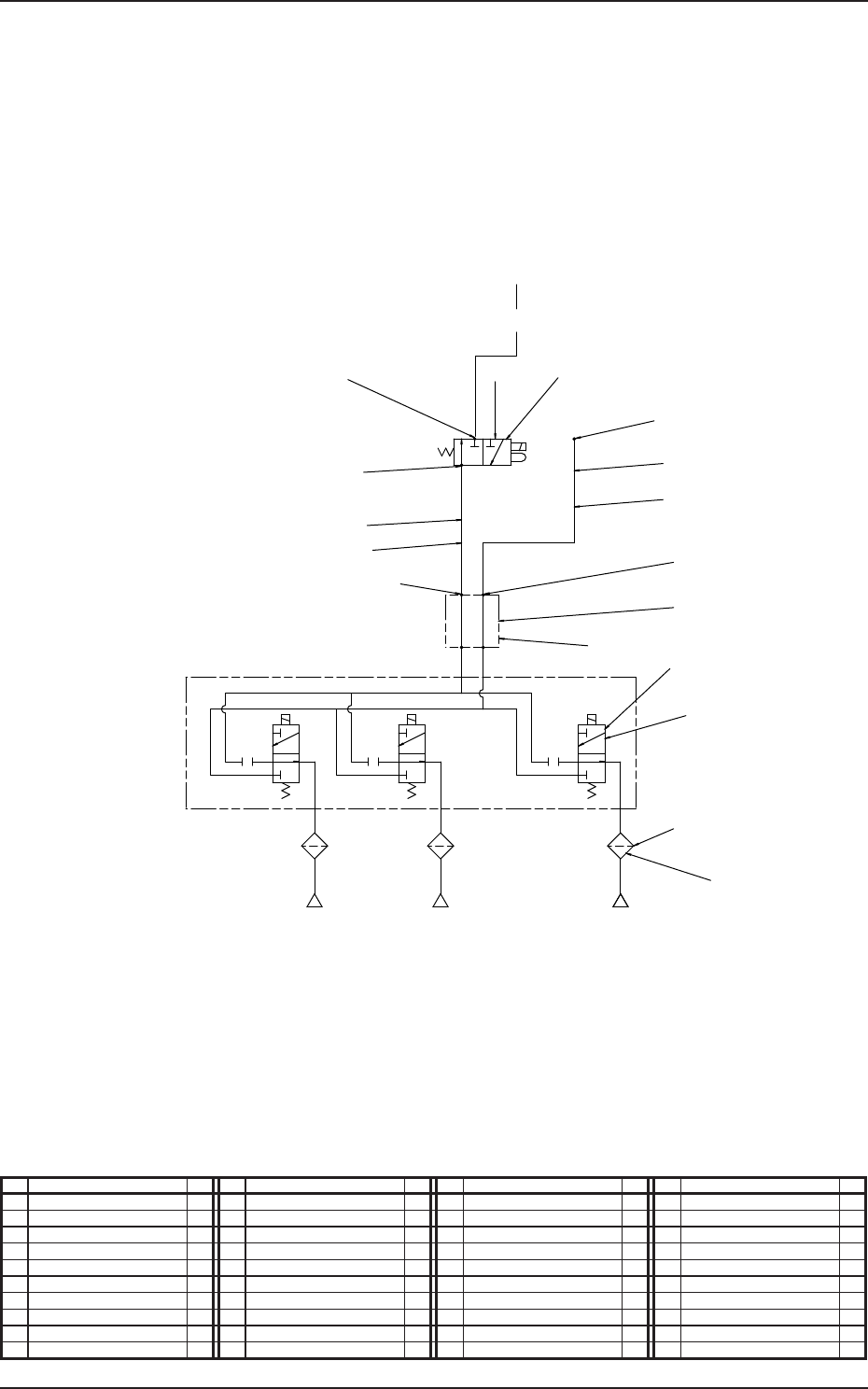

安装头部 ( 气路图 )
A
V
P
R
A
P
A
V
P
A
V
P
Valve
Filter
Rotary Joint
φ8 Fitting
φ8
φ4
φ8 Fitting
φ6 Fitting
φ4 Fitting
φ4 Fitting
Valve
3
2
1
4
5
6
From Main Body
Robot Cable
Nozzle1 Nozzle2 Nozzle15
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
1 Tube
φ
4 1
2 Tube
φ
8 1
3 Solenoid Valve 1
4 Rotary Joint 1
5 Solenoid Valve 15
6 Filter 15
1-16
气路图及实际贴装图
5OM-1752
1306-002

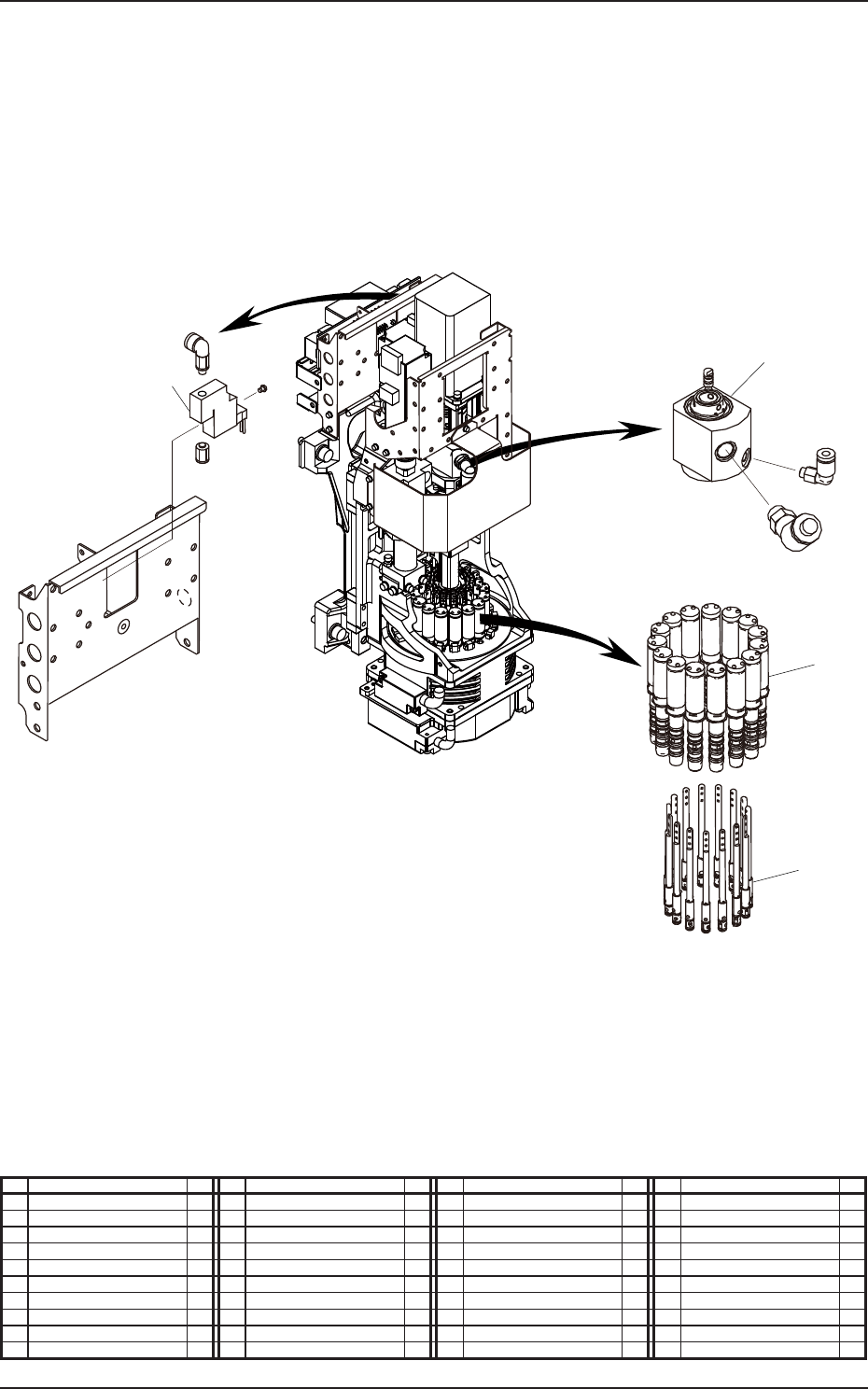

安装头部 ( 实际贴装图 )
3
5
4
6
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
3 Solenoid Valve 1
4 Rotary Joint 1
5 Solenoid Valve 15
6 Filter 15
