2-14 传感器及负载配置图 5OM-1752 1306-002 吸嘴储料器部布局 B_CMP1 B_DWN1 B_SH1 Y_OP1 Y_SH Symbol Name Symbol Name Y_SH Nozzle Stocker 2 Shutter Open/Close 1 Y_UP1 High-speed Nozzle Stocker 2 Ascending 1 B_DWN1 High-speed Nozzle Stocker 2…
2-13
传感器及负载配置图
5OM-1752
1306-002

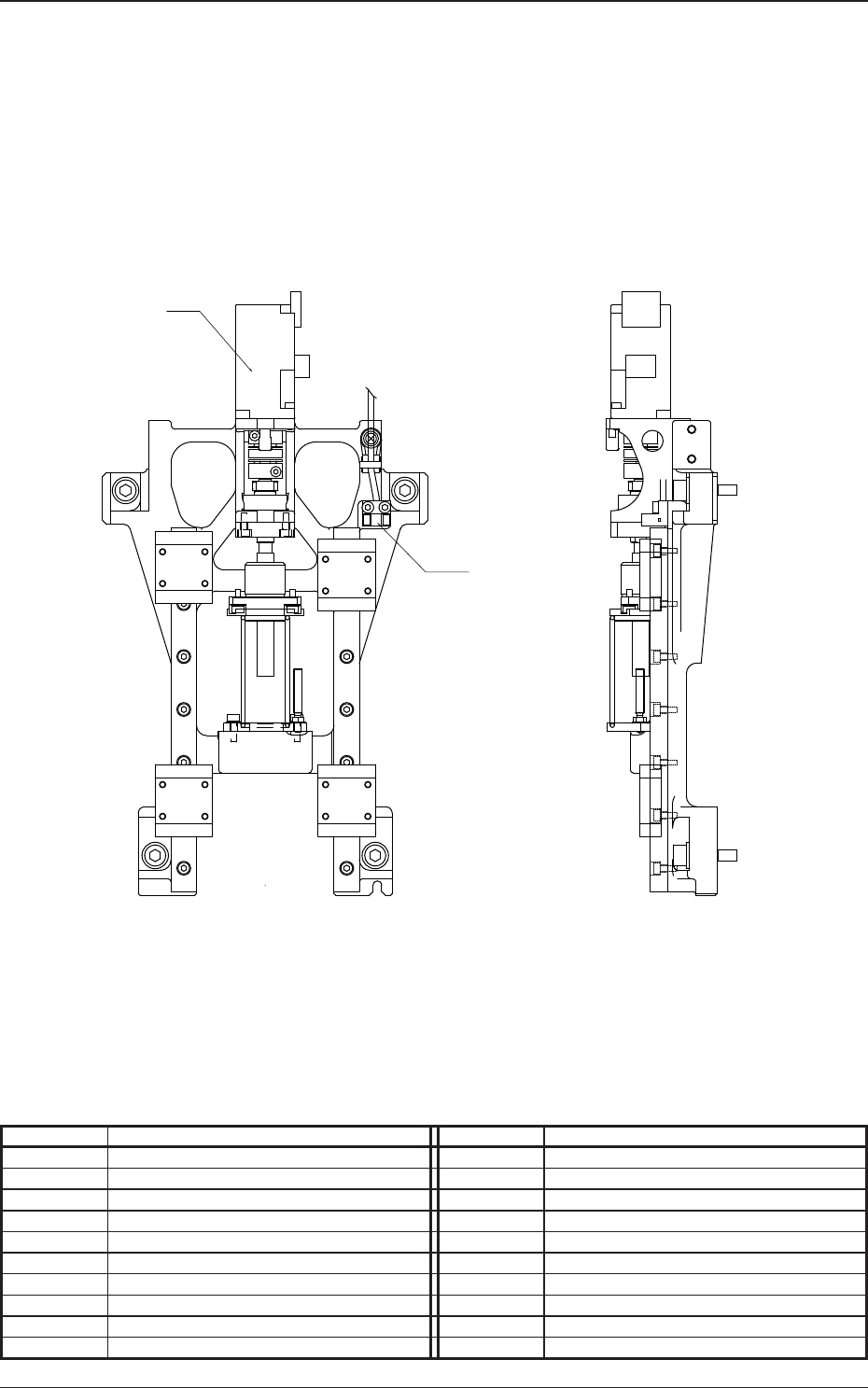

安装头部布局 ( 安装头上下部 )
M33
B0711
Symbol Name Symbol Name
M33 Head U/D (HL) Motor
B0711 Head U/D (-) Limit
2-14
传感器及负载配置图
5OM-1752
1306-002
吸嘴储料器部布局
B_CMP1
B_DWN1
B_SH1
Y_OP1
Y_SH
Symbol Name Symbol Name
Y_SH Nozzle Stocker 2 Shutter Open/Close 1
Y_UP1 High-speed Nozzle Stocker 2 Ascending 1
B_DWN1
High-speed Nozzle Stocker 2 Unit Lower Limit Detection 1
B_SH1
High-speed Nozzle Stocker 2 Shutter Close Check 1
B_CMP1 High-speed Nozzle Stocker 2 Clamp Check 1
2-15
传感器及负载配置图
5OM-1752
1306-002
传送带部布局 ( 外侧 )
6
B11002
B21002
B11004
B0830
B0831
B21003B11003
M44
M42
M43
B0832
B0833
M41
Symbol Name Symbol Name
M41 NL-L B11002 Left PCB Detection Sensor
M42
NA-L B21002 Central PCB Detection Sensor
M43 NR-L B11003 Left PCB Fiber Sensor
M44 NA-W B21003 Right PCB Fiber Sensor
B11004 Right PCB Detection Sensor
B0830 Left PCB Stopper Lower Limit Detection
B0831 Left PCB Stopper Upper Limit Detection
B0832 Right PCB Stopper Lower Limit Detection
B0833 Right PCB Stopper Upper Limit Detection
