第五卷 资 料 - 第47页
2-15 传感器及负载配置图 5OM-1752 1306-002 传送带部布局 ( 外侧 ) 6 B1 1002 B21002 B1 1004 B0830 B0831 B21003 B1 1003 M44 M42 M43 B0832 B0833 M41 Symbol Name Symbol Name M41 NL-L B1 1002 Left PCB Detection Sensor M42 NA-L B21002 Central PC…

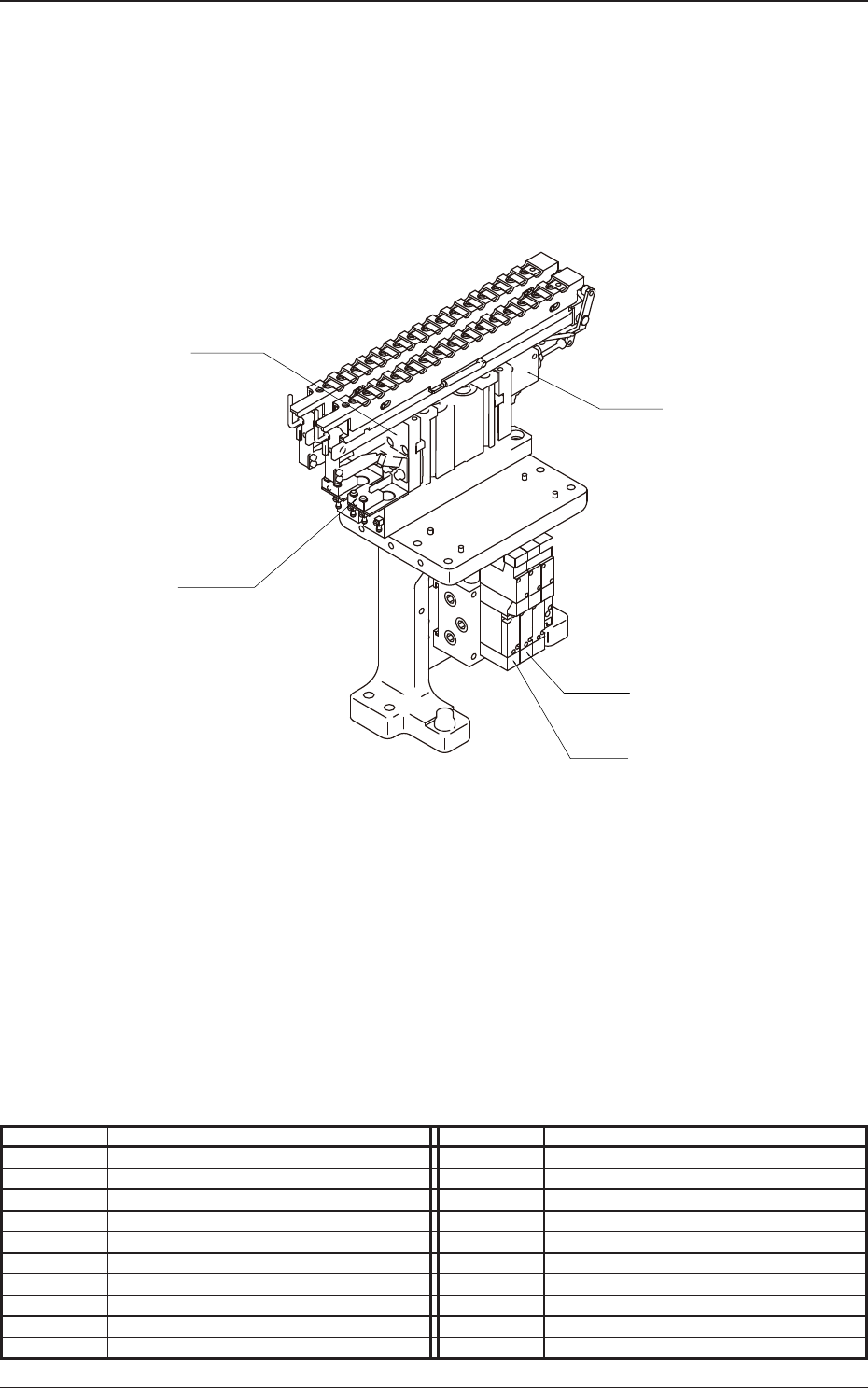

2-14
传感器及负载配置图
5OM-1752
1306-002
吸嘴储料器部布局
B_CMP1
B_DWN1
B_SH1
Y_OP1
Y_SH
Symbol Name Symbol Name
Y_SH Nozzle Stocker 2 Shutter Open/Close 1
Y_UP1 High-speed Nozzle Stocker 2 Ascending 1
B_DWN1
High-speed Nozzle Stocker 2 Unit Lower Limit Detection 1
B_SH1
High-speed Nozzle Stocker 2 Shutter Close Check 1
B_CMP1 High-speed Nozzle Stocker 2 Clamp Check 1

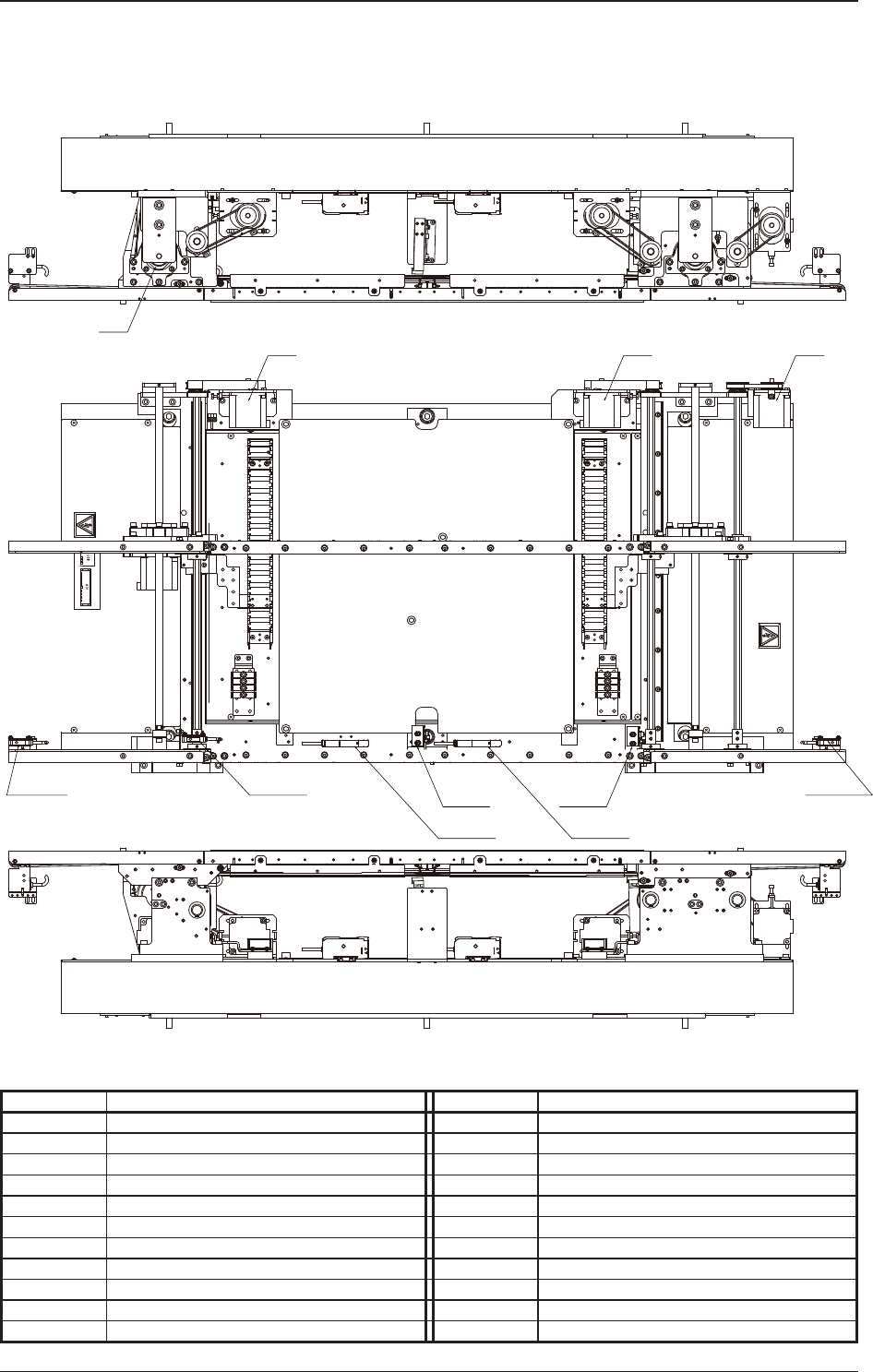

2-15
传感器及负载配置图
5OM-1752
1306-002
传送带部布局 ( 外侧 )
6
B11002
B21002
B11004
B0830
B0831
B21003B11003
M44
M42
M43
B0832
B0833
M41
Symbol Name Symbol Name
M41 NL-L B11002 Left PCB Detection Sensor
M42
NA-L B21002 Central PCB Detection Sensor
M43 NR-L B11003 Left PCB Fiber Sensor
M44 NA-W B21003 Right PCB Fiber Sensor
B11004 Right PCB Detection Sensor
B0830 Left PCB Stopper Lower Limit Detection
B0831 Left PCB Stopper Upper Limit Detection
B0832 Right PCB Stopper Lower Limit Detection
B0833 Right PCB Stopper Upper Limit Detection

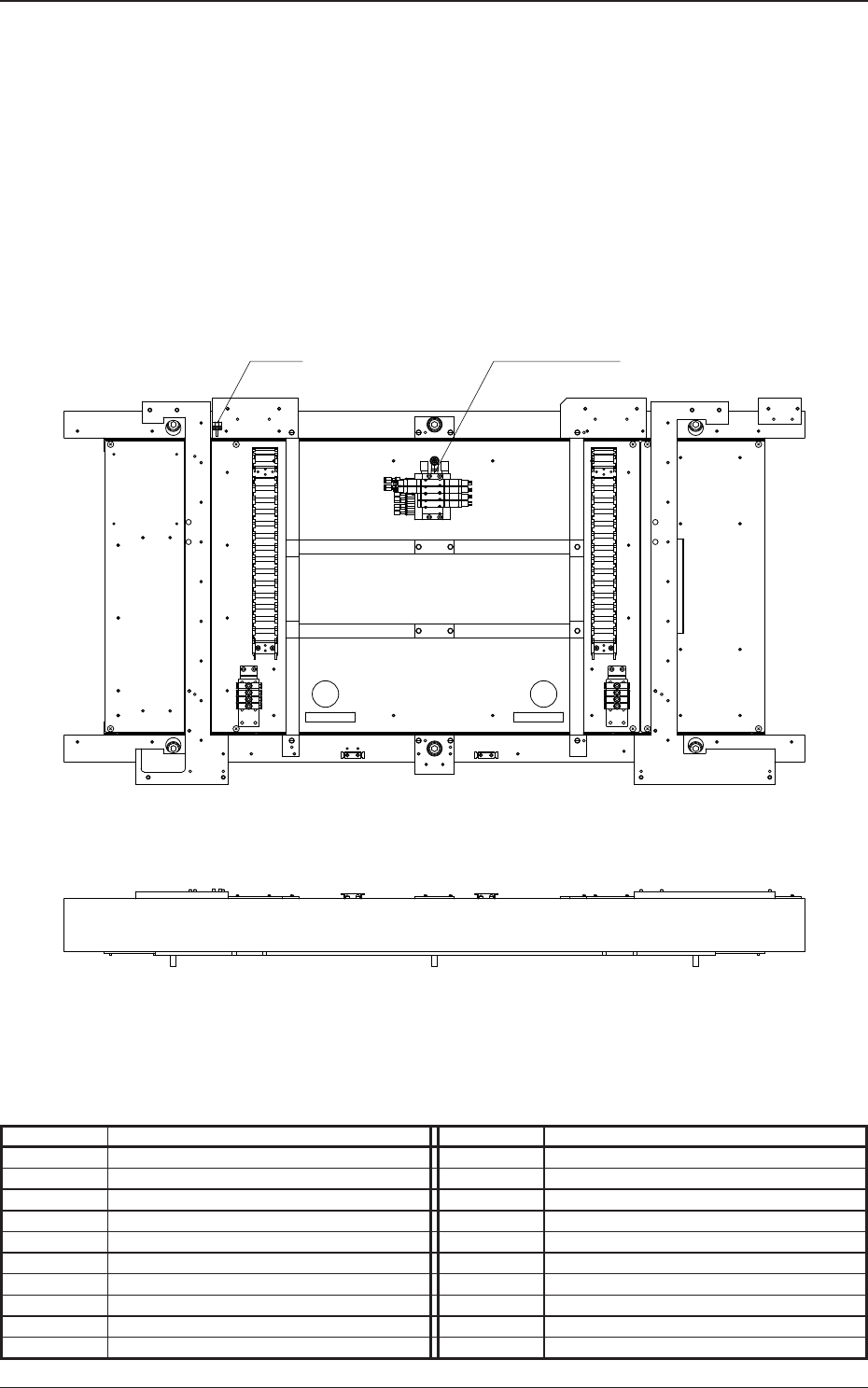

2-16
传感器及负载配置图
5OM-1752
1306-002
传送带部布局 ( 内侧 )
B1005
Y0810 to Y0815
Symbol Name Symbol Name
B1005 Movable Chute Origin Sensor
Y0810
Z-Clamp Left Cylinder Valve Descent
Y0811
Z-Clamp Left Cylinder Valve Ascent
Y0812
Z-Clamp Right Cylinder Valve Descent
Y0813
Z-Clamp Right Cylinder Valve Ascent
Y0814 Left PCB Stopper Lifting Valve
Y0815 Right PCB Stopper Lifting Valve
