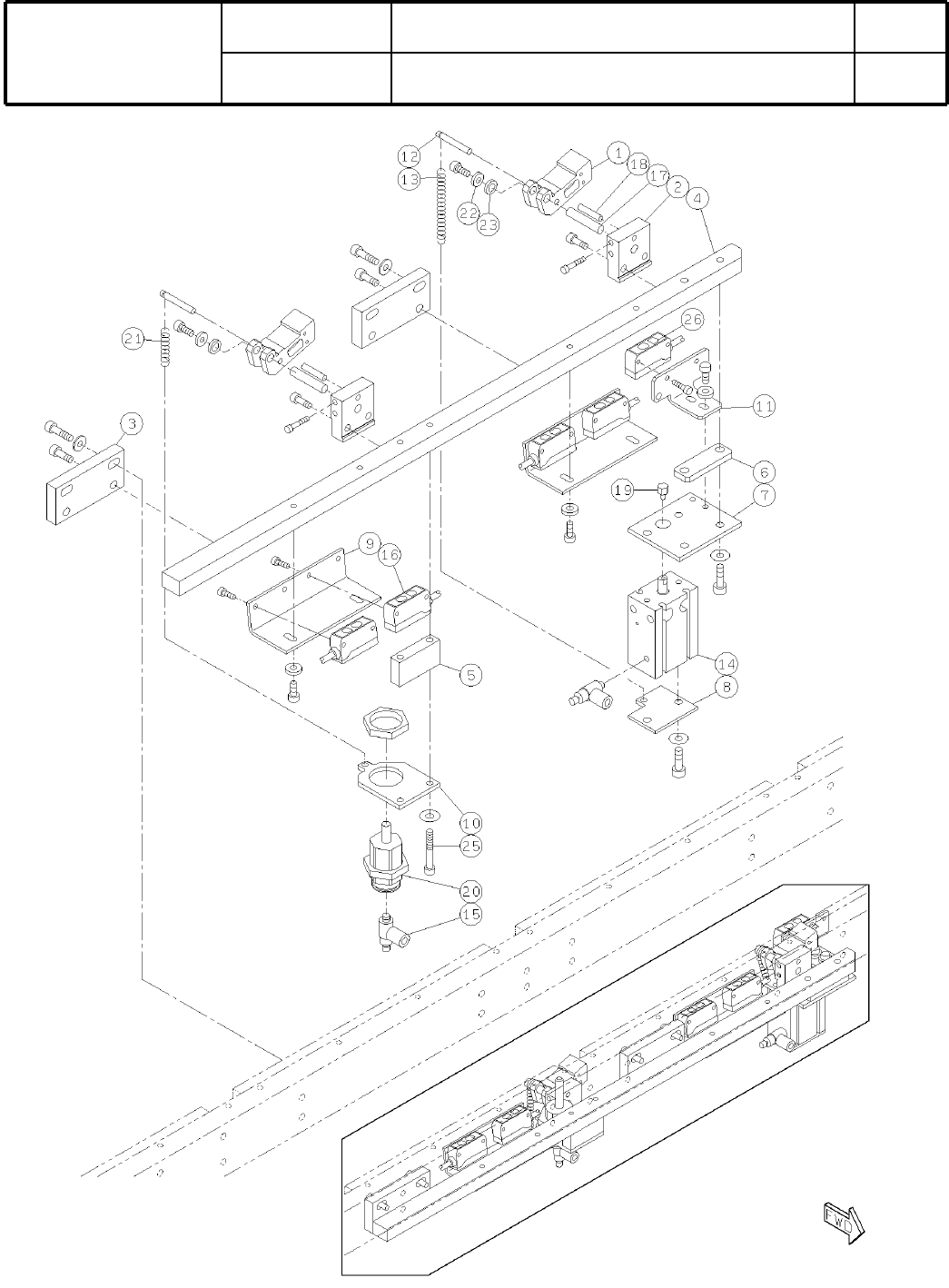

8 基 板 ストッパ Bo ar d St opp e r パーツレイアウト Ki t N o . キット 品番 Kit N am e キット名称 KXFX 036M A00 ｾｸｼｮﾝNo. PARTS LAYOUT Section No. - - M129 ( KKXFX036MA00-08 )

100%1 / 448
Ref
No.
Remarks
R
1
Q'ty
7-E
汎用ヘッド (8ノズル)
High-flexibility Head ( 8 Nozzles )
ｲﾗｽﾄ
No.
Part No.
品　　名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610055234AA
Part Name
備　　　考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
MANIFOLD
1
1 KXFB0AN1A00
BRACKET
1
2 N210010111AC
BRACKET
1
3 N210010113AC
COVER
1
4 N210010114AA
PLATE
1
5 N210010115AA
BRACKET
1
6 N210026970AA
GUIDE
1
7 N210026973AA
COVER
1
8 N210010117AB
BRACKET
1
9 N210016027AC
PLATE
1
10 N210010122AA
STOPPER
3
11 N210026972AA
STOPPER
1
12 N210026971AB
JOINT
2
13 KXF068MAA00 KQU06-08
SPACER
5
14 N510063086AA ASL-360BE
SPACER
5
15 N510063087AA CL-305BE
SCREW
4
16 N510018283AA
Cross recessed Truss head machine screw M4X8-4.8 A2S (Trivalent)
FAN
1
17 KXF0DHHAA00
S
109L0624H402(DA 0DHHA)
SCREW
4
18 N510018254AA
Cross recessed Truss head machine screw M3X6-4.8 A2S (Trivalent)
SPACER
4
19 N510015279AA ASF-310E
JOINT
1
20 KXF02BXAA00 KQL06-01S
PLUG
2
21 KXF02TGAA00 M-5P
JOINT
8
22 KXF0CSYAA00 KJS23-M5
SPACER
4
23 N510017060AA ASF-326E
SPACER
2
24 N510015651AA CF-410E
CABLE-SUPPORT
1
25 KXF0DGAAA00 HV-125
CLAMP
1
26 KXF0DUTAA00 CKS-07-L
SPACER
4
27 KXF0E156A00 CL-316B
SCREW
4
28 N510018278AA
Cross recessed Truss head machine screw M4X5-4.8 A2S (Trivalent)
M128
--
( KN610055234AA-18A-5 )
8
基
板
ストッパ
Board Stopper
パーツレイアウト
Ki
t
N
o
.
キット
品番
Kit Name
キット名称
KXFX036MA00
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
M129
( KKXFX036MA00-08 )
Ref
No.
Remarks
R
1
Q'ty
8
基
板
ストッパ
Board Stopper
ｲﾗｽﾄ
No.
Part No.
品　　名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
KXFX036MA00
Part Name
備　　　考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
STOPPER
2
1 KXFB02N4A03
BLOCK
2
2 N210022685AA
PLATE
2
3 KXFB02N6A00
PLATE
1
4 KXFB02N7C01
SPACER
1
5 KXFB02N8A00
SPACER
1
6 N210022686AA
CYL-PLATE
1
7 KXFB02NBB00
PLATE
1
8 KXFB02NCA00
BRACKET
2
9 KXFB02TYA00
PLATE
1
10 KXFB02NEA00
BRACKET
1
11 KXFB02TZC00
D-PIN
2
12 KXFB02NAA00
SPRING
1
13 KXF0C72AA00 6580
CYLINDER
1
14 KXF0DHZAA00 CU20S-T1879-15(DDA)
SPEED-CONTROLLER
2
15 KXF00YSAA00 AS1211F-M5-04
SENSOR
4
16 KXF0DSTAA00 E3S-LS3N(DA 0DSTA)
PIN
2
17 KXF0303AA00 MSTH6-30
PIN
2
18 KXF02Y8AA00 MS4-20
PIN
1
19 N210168667AA
CYLINDER
1
20 KXF0DZBAA00 CJPB15-DCG8017G-15(DDA)
SPRING
1
21 KXF0CWKAA00 H063-10
WASHER
2
22 KXF0DJJAA00 WSSB10-4-2
WASHER
2
23 KXF0CJHAA00 WSSB10-6-2
BOLT
2
25 N510017361AA
Hexagon socket head cap screw M4X30-10.9 A2J (Trivalent)
SENSOR
1
26 KXF0DSUAA00 E3S-LS3N(DA 0DSUA)
M130
--
( KKXFX036MA00-08 )
