MODEL TCM-X300 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 187 L-2 10 6 630 033 6955 PI PE FI T TI NG S(BAND) 2 8 1 2 L- - 010-106 107 630 091 3545 TU BE 1 812L--010-107 1 1 1 630 052 1986 TU BE 1 812L--01…
MODEL TCM-X300
0306-001
186
ᧄㇱ MAIN BODY SECTION

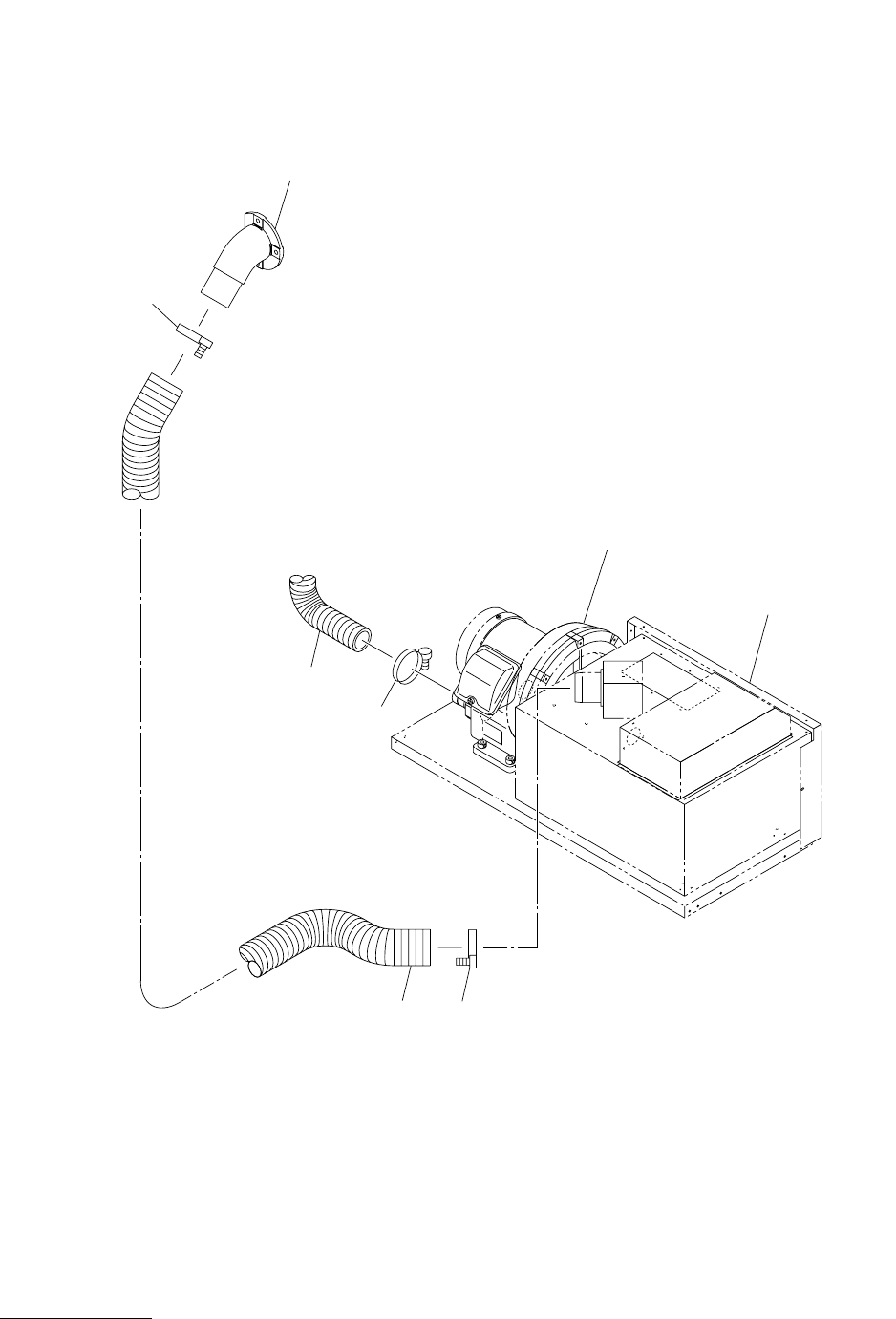

Fig. L-2 ࠳ࠢ࠻ࡎࠬ Duct Hose
111
116
See Fig.LB-1
Key No.1
See Fig.LB-1
Key No.42
107 106
Fig.L-2
TCM-X300-002
4797L-002
TCM-X100-002
TCM-X200-003
4797A-002
106
See Fig.E-1
Key No.21
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
187
L-2
106 630 033 6955 PIPE FITTINGS(BAND) 2 812L--010-106
107 630 091 3545 TUBE 1 812L--010-107
111 630 052 1986 TUBE 1 812L--010-111
116 630 009 3544 PIPE FITTINGS(BAND) 1 812L--010-116
MODEL TCM-X300
0306-001
188
ᧄㇱ MAIN BODY SECTION
Fig. L-3 ࠬࡐ࠶࠻ࠗ࠻ Spotlight
Fig.L-3
4797L-002
TCM-X300-002
209
208
207
See Fig.L-1
Key No.12
See Fig.L-1
Key No.10
204
203
202
201
201-10
205
206
