MODEL TCM-X300 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 199 MA-1 7 630 109 3529 COV ER( RFR ) 1 812 MA-010-007 9 630 1 19 9412 COV ER( RFR ) 1 812 MA-010-009 10 630 1 16 9880 COV ER( FSL ) 1 81 2 MA-010…
MODEL TCM-X300
0306-001
198
ࠞࡃㇱ COVER SECTION

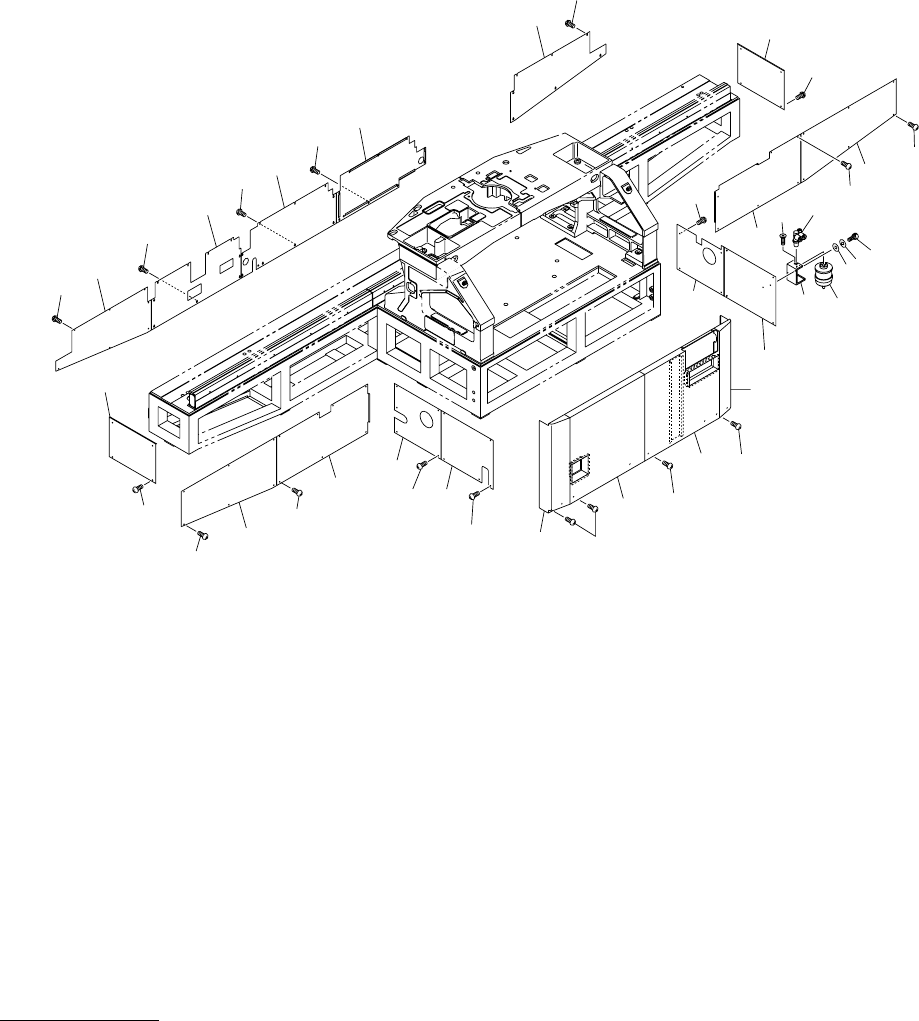

Fig. MA-1 ᧄࠞࡃ Body Cover
23
11
11
11
11
11
21
20
19
18
24
11
11
10
11
11
30
11
11
11
31
32
33
7
11
11
9
11
24
11
26
15
11
17
16
25
38
43
42
41
39
40
44
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
199
MA-1
7 630 109 3529 COVER(RFR) 1 812MA-010-007
9 630 119 9412 COVER(RFR) 1 812MA-010-009
10 630 116 9880 COVER(FSL) 1 812MA-010-010
11 411 113 9000 SCR TRS 5X8 101 812MA-010-011
15 630 121 3897 COVER(FSL) 1 812MA-010-015
16 630 109 3543 COVER(RFL) 1 812MA-010-016
17 630 120 0279 COVER(RFL) 1 812MA-010-017
18 630 097 2924 COVER(RBL) 1 812MA-010-018
19 630 120 4741 COVER(RBL) 1 812MA-010-019
20 630 117 0855 COVER(RBC) 1 812MA-010-020
21 630 122 2189 COVER(RBC) 1 812MA-010-021
23 630 119 5216 COVER(RBR) 1 812MA-010-023
24 630 120 5755 COVER(RS) 2 812MA-010-024
25 630 123 2010 COVER(FSR) 1 812MA-010-025
26 630 099 6579 COVER 1 812MA-010-026
30 630 095 1127 COVER 1 812MA-010-030
31 630 097 2139 COVER(ML) 1 812MA-010-031
32 630 098 1223 COVER(MR) 1 812MA-010-032
33 630 097 7790 COVER 1 812MA-010-033
38 630 122 4671 PIPE FITTINGS 1 812MA-010-038
39 630 123 2225 AIR CLEAN EQPT 1 812MA-010-039
40 630 123 2164 BRACKET 1 812MA-010-040
41 411 141 4107 WASHER V 5X10X1 2 812MA-010-041
42 411 141 6705 WASHER SPR 5 2 812MA-010-042
43 630 000 7756 BOLT,HEX-SCT 2 812MA-010-043
44 411 034 7208 SCR FLT 3X8 3 812MA-010-044
MODEL TCM-X300
0306-001
200
ࠞࡃㇱ COVER SECTION

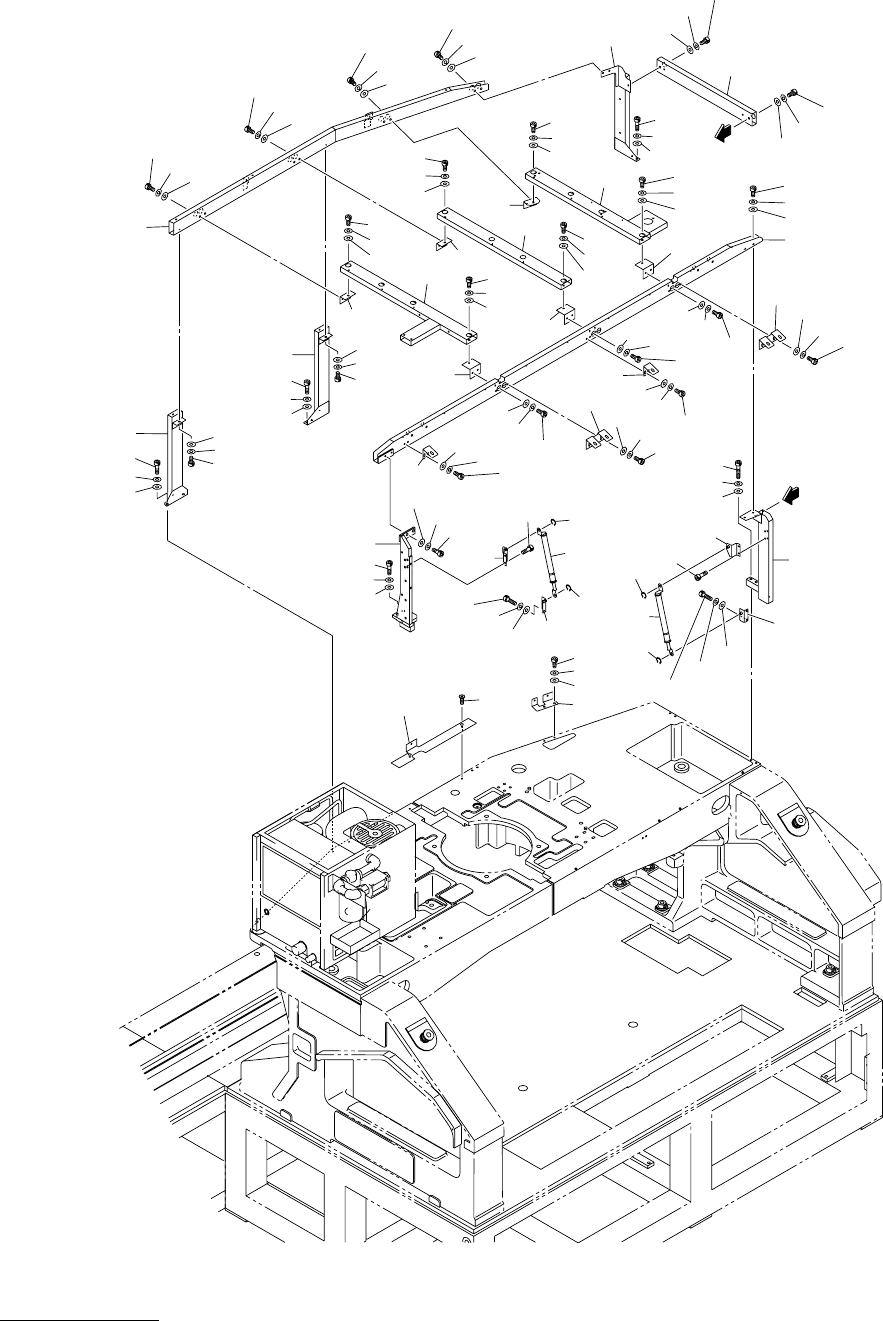

Fig. MA-2 ㇱࡈࡓ Upper Frame
147
135
148
149
140
146
147
140
113
146
147
109
140
146
147
140
108
115
146
147
140
118
140
146
147
140
146
147
140
146
147
140
146
147
107
118
146
147
147
146
140
147
146
140
135
104
148
149
135
105
148
149
140
146
147
127
147
146
140
147
146
140
128
133
146
140
129
133
146
140
128
133
146
102
138
147
146
122
140
135
148
149
120
139
123
148
135
131
149
138
146
147
132
146
140
126
147
112
133
146
129
119
140
147
146
141
139
123
116
123
116
121
147
146
140
127
127
140
146
147
A
A
111
146
140
147
103
146
140
106
123
