MODEL TCM-X300 0306-001 230 ࡈࠖ࠳ࠠࡖ࠶ࠫࠞࡃ Feeder Carriage Cover Fig. MC-3 ೨ࠞࡃࡈࡓ Front Side Cover Frame 231 207 284 281 232 221 284 291 279 275 281 284 235 208 236 261 285 285 252 234 222 21 1 202 284 212 201 21 1 291 …
MEMO
MODEL TCM-X300
0306-001
230

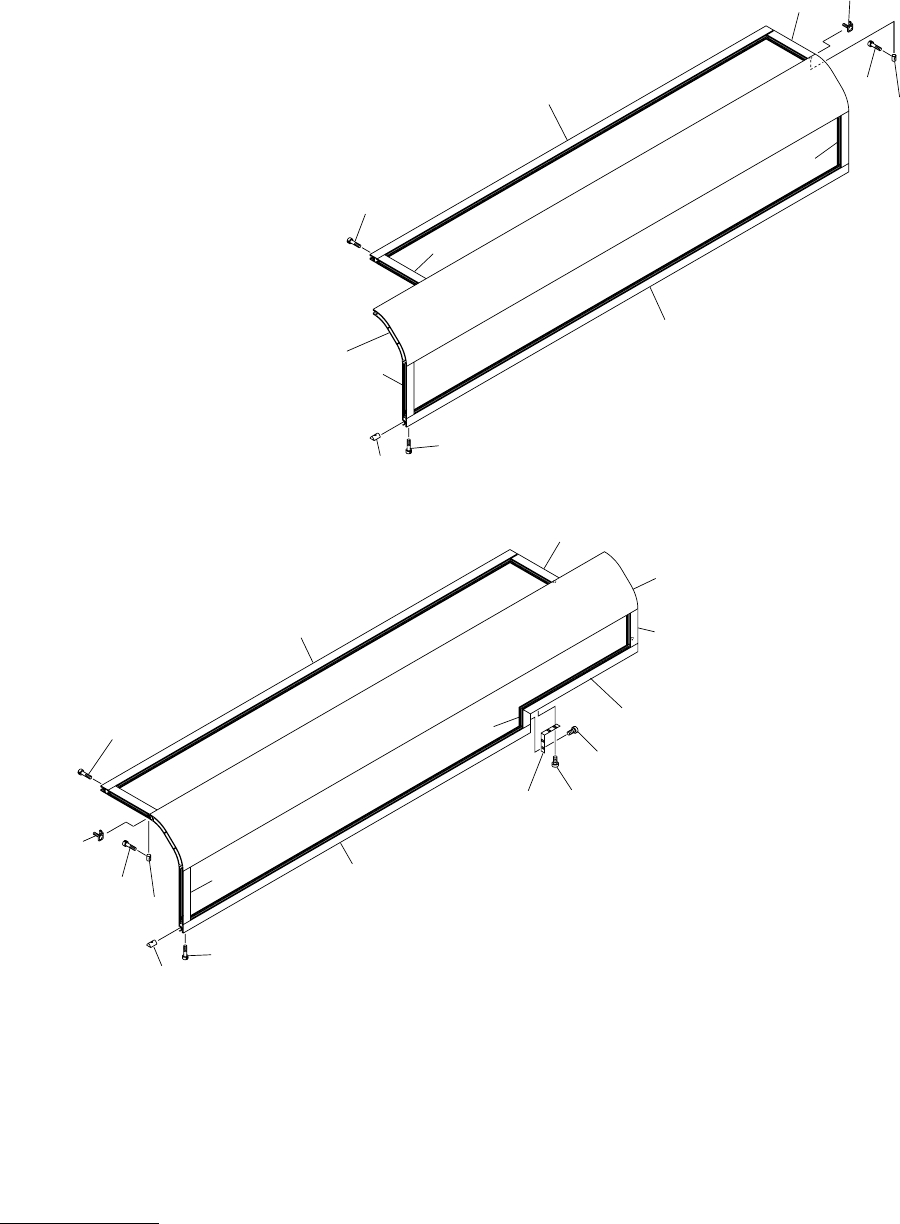

ࡈࠖ࠳ࠠࡖ࠶ࠫࠞࡃ Feeder Carriage Cover
Fig. MC-3 ೨ࠞࡃࡈࡓ Front Side Cover Frame
231
207
284
281
232
221
284
291
279
275
281
284
235
208
236
261
285
285
252
234
222
211
202
284
212
201
211
291
279
275
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
231
MC-3
201 630 119 1638 MECH PARTS(FRAME) 1
202 630 119 1645 MECH PARTS(FRAME) 1
207 630 119 1652 MECH PARTS(FRAME) 1
208 630 119 1669 MECH PARTS(FRAME) 1
211 630 119 1683 MECH PARTS(FRAME) 2
212 630 119 1690 MECH PARTS(FRAME) 2
221 630 119 1737 MECH PARTS(FRAME) 1
222 630 119 1744 MECH PARTS(FRAME) 1
231 630 119 1751 MECH PARTS(FRAME) 1
232 630 119 3212 MECH PARTS(FRAME) 1
234 630 119 3236 MECH PARTS(FRAME) 1
235 630 119 3243 MECH PARTS(FRAME) 1
236 630 123 8128 MECH PARTS(FRAME) 1
252 630 123 8135 MECH PARTS(FRAME) 1
261 630 123 8142 MECH PARTS(BRACKET) 1
266 630 098 1926 MECH PARTS(CAP) 9
275 630 098 1988 MECH PARTS(NUT) 8
279 630 098 2008 MECH PARTS(NUT) 8
281 630 103 4256 NUT 14
284 630 000 7749 BOLT,HEX-SCT 4
285 630 000 7794 BOLT,HEX-SCT 9
291 630 000 7909 BOLT,HEX-SCT 8
