MODEL TCM-X300 0306-001 252 100V 㔚Ḯㇱ 100V POWER SUPPL Y SECTION F i g . R E - 2 100V 㔚Ḯ㧞 100V Power Supply 2 158 155 166 154 163 158 156 . 157 . 160 151 . 162 151 . 159 151 . 161 151 . 152 151 . 153 . 167 See Fig.RE-1 Ke…
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
251
RE-1
51 630 116 8760 RELAY 1 K10 812RE-010-051
52 630 116 9569 RELAY 4 K29,K41,K60,K61 812RE-010-052
53 630 049 2064 SOCKET 4 812RE-010-053
54 630 099 1765 CIRCUIT PROTECTOR 2 Q110,Q111 812RE-010-054
55 630 099 1765 CIRCUIT PROTECTOR 1 Q112 812RE-010-055
56 630 094 1463 CIRCUIT PROTECTOR 1 Q113 812RE-010-056
57 630 053 8588 EM-CONTACTOR 2 KM3,KM4 812RE-010-057
58 630 100 1357 COMP,CR 2 812RE-010-058
59 630 116 8838 CIRCUIT PROTECTOR 1 Q205 812RE-010-059
60 630 109 1488 FUSE HOLDER 3 812RE-010-060
61 424 005 9408 FUSE 600V 20A 1 F120 812RE-010-061
62 424 005 9408 FUSE 600V 20A 2 F201,F203 812RE-010-062
63 630 000 1273 ACCESSORY,WIRING 1 812RE-010-063
64 630 091 1749 BRACKET,WIRING 2 812RE-010-064
65 630 119 5148 PANEL 1 812RE-010-065
66 630 071 3343 COVER 7 812RE-010-066
67 630 071 3350 COVER 5 812RE-010-067
68 630 083 5465 TERMINAL 2 812RE-010-068
69 630 083 5533 ACCESSORY,WIRING 1 812RE-010-069
70 630 048 3833 MECH PARTS(MOUNTING BASES 6 812RE-010-070
95 411 113 7501 SCR TRS 4X10 6 812RE-010-095
96 630 000 7602 BOLT,HEX-SCT 2 812RE-010-096
97 630 000 7633 BOLT,HEX-SCT 4 812RE-010-097
98 411 141 2905 WASHER SPR 4 6 812RE-010-098
99 630 001 0213 WASHER 6 812RE-010-099
MODEL TCM-X300
0306-001
252
100V 㔚Ḯㇱ 100V POWER SUPPLY SECTION

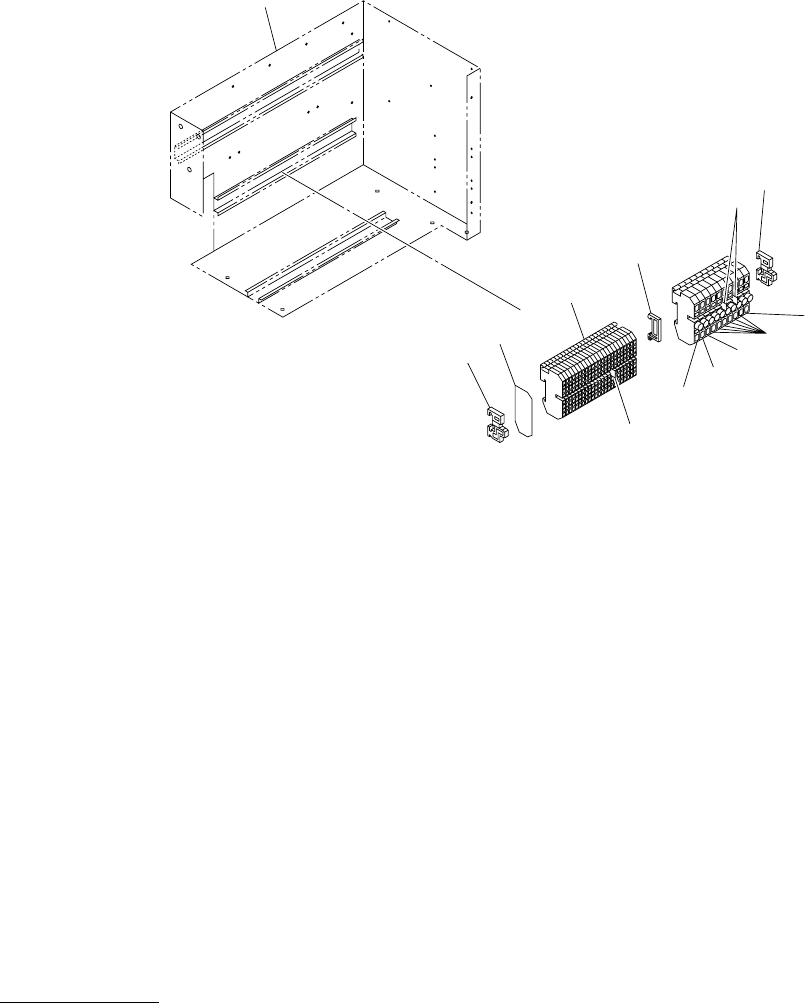

Fig. RE-2 100V 㔚Ḯ㧞 100V Power Supply 2
158
155
166
154
163
158
156
.
157
.
160
151
.
162
151
.
159
151
.
161
151
.
152
151
.
153
.
167
See Fig.RE-1
Key No.65
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
253
RE-2
151 630 083 5496 FUSE HOLDER 10 812RE-010-151
152 630 059 6632 ACCESSORY,WIRING 1 812RE-010-152
153 630 051 1512 ACCESSORY,WIRING 1 812RE-010-153
154 630 083 5465 TERMINAL 23 812RE-010-154
155 630 083 5533 ACCESSORY,WIRING 1 812RE-010-155
156 630 072 8408 ACCESSORY,WIRING 1 812RE-010-156
157 630 058 8460 ACCESSORY,WIRING 3 812RE-010-157
158 630 091 1749 BRACKET,WIRING 2 812RE-010-158
159 423 022 8005 FUSE 250V 1A 1 F105 812RE-010-159
160 423 022 8104 FUSE 250V 2A 1 F100 812RE-010-160
161 423 025 2109 FUSE 250V 6.3A 6 F106,F107,F108,F104,F110,F111
812RE-010-161
162 423 022 8500 FUSE 250V 10A 1 F101 812RE-010-162
163 630 000 1273 ACCESSORY,WIRING 2 812RE-010-163
166 630 083 5564 ACCESSORY,WIRING 1 812RE-010-166
167 630 058 8415 ACCESSORY,WIRING 3 812RE-010-167
