P-0187-001 - 第267页
MODEL TCM-X300 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 265 RH-3 25 1 630 1 16 8777 UNIT ,PO WE R 1 G1, RK W0 5- 60R 812RH-010-251 25 2 630 085 9560 UNI T ,PO WE R 1 G2 A, P AA 100F-12-RN 812RH-010-252 …
MODEL TCM-X300
0306-001
264
ᓮࡏ࠶ࠢࠬㇱ CONTROL BOX SECTION

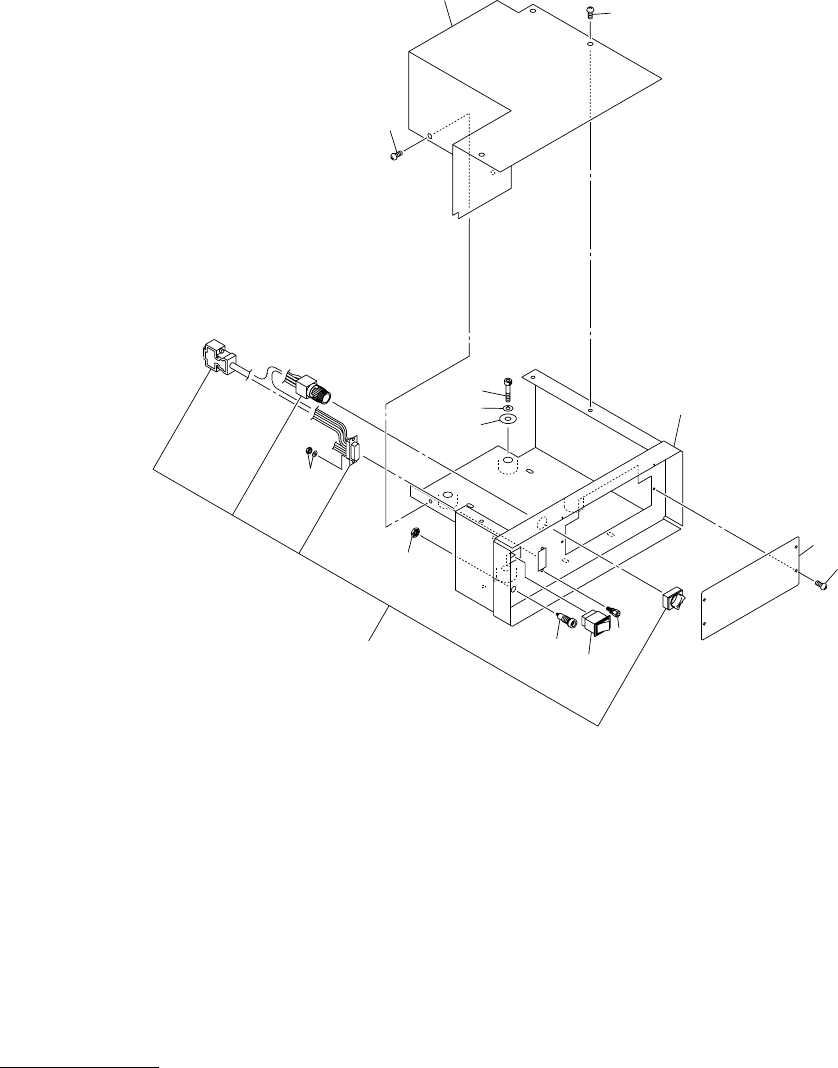

Fig. RH-3 㔚Ḯ࡙࠾࠶࠻ Power Supply Unit
297
298
299
290
255
253
254
252
291
297
292
292
298
299
294
295
296
294
295
296
256
251
291
293
257
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
265
RH-3
251 630 116 8777 UNIT,POWER 1 G1,RKW05-60R 812RH-010-251
252 630 085 9560 UNIT,POWER 1 G2A,PAA100F-12-RN 812RH-010-252
253 630 085 9577 UNIT,POWER 1 G2B,PAA50F-12-RN 812RH-010-253
254 630 115 3483 BOX 1 812RH-010-254
255 630 115 2301 PLATE 1 812RH-010-255
256 630 119 4837 PLATE 1 812RH-010-256
257 630 115 3476 COVER 1 812RH-010-257
290 411 034 7208 SCR FLT 3X8 2 812RH-010-290
291 411 035 2707 SCR FLT 4X8 4 812RH-010-291
292 411 114 7807 SCR PAN+SW+W 4X10 4 812RH-010-292
293 411 051 2804 SCR TRS 4X8 4 812RH-010-293
294 630 000 7626 BOLT,HEX-SCT 4 812RH-010-294
295 411 141 2905 WASHER SPR 4 4 812RH-010-295
296 411 141 4008 WASHER V 4X9X0.8 4 812RH-010-296
297 630 000 7756 BOLT,HEX-SCT 3 812RH-010-297
298 411 141 6705 WASHER SPR 5 3 812RH-010-298
299 411 141 4107 WASHER V 5X10X1 3 812RH-010-299
