MODEL TCM-X300 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 269 RL-1 51 630 085 4138 UN IT ,PO WE R 2 G4 ,G 5, P AA-300F-24 812RL-010-051 52 630 085 7498 R EL A Y 3 K1,K 5,K6 812RL-010-052 53 630 049 2422 B…
MODEL TCM-X300
0306-001
268
51
98
98
69
69
95
96
97
91
61
51
92
93
94
69
62
99
84
84
69
85
86
87
84
84
93
92
94
64
63
60
58
55
6867
60
93
94
53
52
92
89
90
65
88
5654 57
ᯏ᪾ᑫࠅ㧝 MISCELLANEOUS PARTS-1

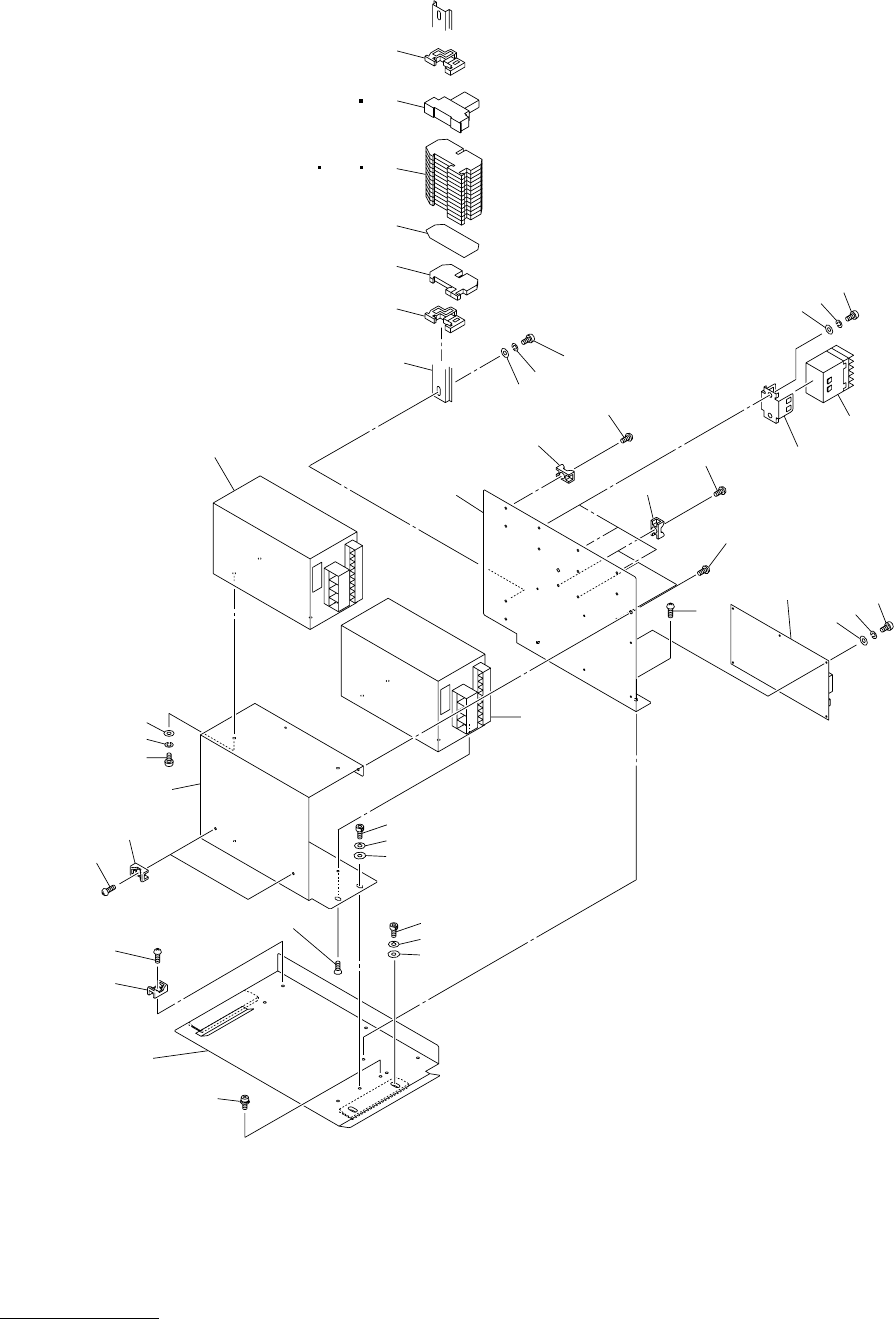

Fig. RL-1 㔚Ḯ࡙࠾࠶࠻ Power Supply Unit
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
269
RL-1
51 630 085 4138 UNIT,POWER 2 G4,G5,PAA-300F-24 812RL-010-051
52 630 085 7498 RELAY 3 K1,K5,K6 812RL-010-052
53 630 049 2422 BRACKET,WIRING 3 812RL-010-053
54 630 083 5465 TERMINAL 12 812RL-010-054
55 630 083 5533 ACCESSORY,WIRING 1 812RL-010-055
56 630 072 8408 ACCESSORY,WIRING 1 812RL-010-056
57 630 058 8460 ACCESSORY,WIRING 4 812RL-010-057
58 630 083 5489 TERMINAL 1 812RL-010-058
60 630 091 1749 BRACKET,WIRING 2 812RL-010-060
61 630 119 4684 PLATE 1 812RL-010-061
62 630 115 3377 BOX 1 812RL-010-062
63 630 115 3391 COVER 1 812RL-010-063
64 630 089 6497 RAIL,WIRING 1 812RL-010-064
65 630 117 1166 P.C.B,MOUNT 1 #UB02 812RL-010-065
67 630 068 9723 RELAY 1 K7 812RL-010-067
68 630 049 2064 SOCKET 1 812RL-010-068
69 630 048 3833 MECH PARTS(MOUNTING BASES 14 812RL-010-069
84 411 113 7501 SCR TRS 4X10 14 812RL-010-084
85 630 000 7626 BOLT,HEX-SCT 2 812RL-010-085
86 411 141 2905 WASHER SPR 4 2 812RL-010-086
87 411 141 4008 WASHER V 4X9X0.8 2 812RL-010-087
88 411 040 6202 SCR PAN 3X10 6 812RL-010-088
89 411 086 4408 WASHER SPR 3 6 812RL-010-089
90 411 119 1909 WASHER V 3X7X0.5 6 812RL-010-090
91 411 114 7807 SCR PAN+SW+W 4X10 2 812RL-010-091
92 411 043 5004 SCR PAN 4X8 10 812RL-010-092
93 411 008 1706 WASHER SPR 4 10 812RL-010-093
94 411 119 2104 WASHER V 4X9X0.8 10 812RL-010-094
95 630 000 7749 BOLT,HEX-SCT 2 812RL-010-095
96 411 141 6705 WASHER SPR 5 2 812RL-010-096
97 411 141 4107 WASHER V 5X10X1 2 812RL-010-097
98 411 051 1708 SCR TRS 4X6 4 812RL-010-098
99 411 035 2707 SCR FLT 4X8 2 812RL-010-099
MODEL TCM-X300
0306-001
270
See Fig.L-1
Key No.9
158
194
195
196
157
194
195
196
190
194
195
196
193
155
154
153
192
191
199
198
197
190
156
199
198
197
199
198
197
199
198
197
151
159
159
190
189
160
ᯏ᪾ᑫࠅ㧝 MISCELLANEOUS PARTS-1

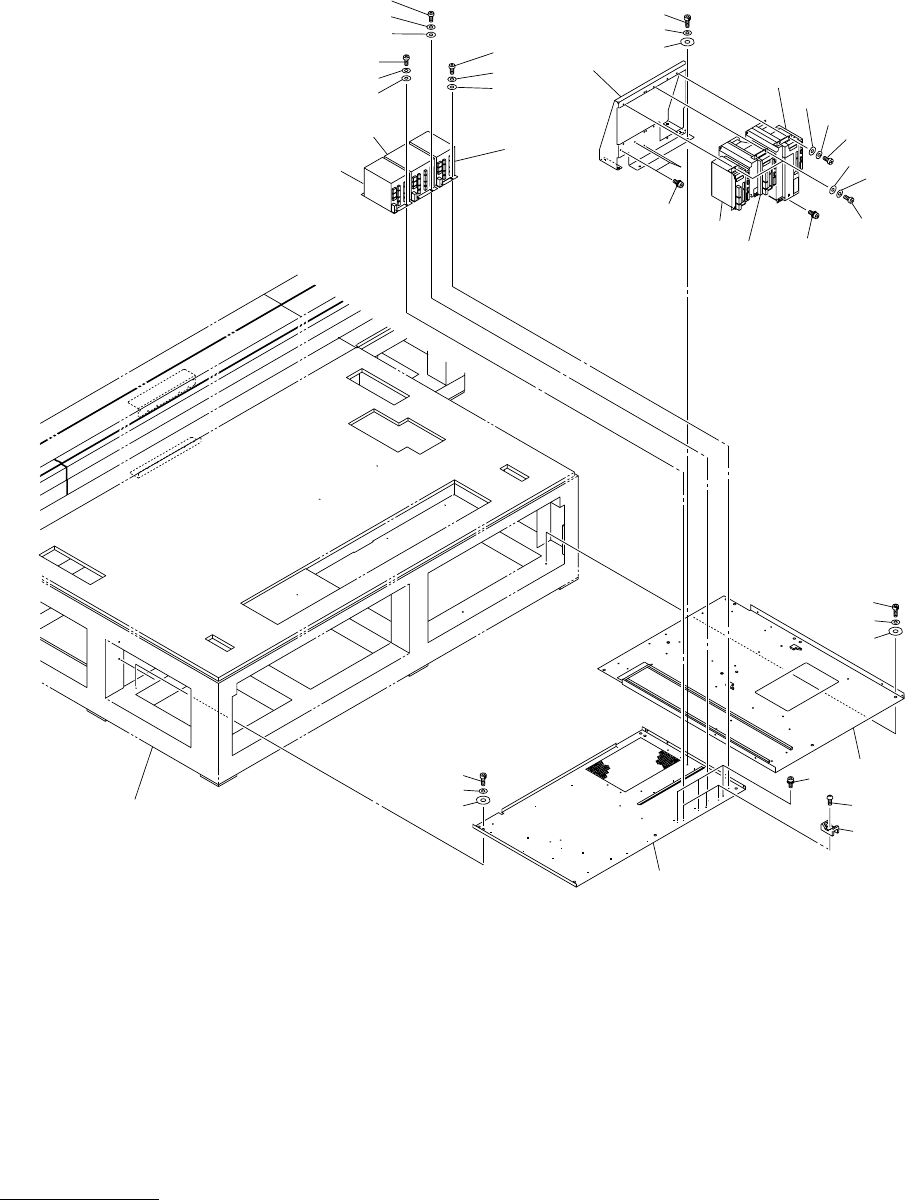

Fig. RL-2 XY ࡕ࠲࠼ࠗࡃ XY Motor Drivers
