MODEL TCM-X300 0306-001 296 ࠤࡉ࡞㈩✢ CABLE WIRING Fig. SB-8 ᧄㇱ㧞 Main Body Section-2 752 See Fig.RL-2 Key No.155 See Fig.RL-2 Key No.154 See Fig.RL-2 Key No.153 ASMD6(X) ASMD7(Y) ASMD8(XYTR) 751 753 759 758 See Fig.RL-5 Ke…
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
295
SB-6
551 630 086 8173 CORD 2 812SB-010-551
552 630 086 8180 CORD 1 812SB-010-552
553 630 091 5808 CORD(C32-MZ-PG) 2 812SB-010-553
554 630 092 3575 ASSY,CORD(X200MOT H) 1 812SB-010-554
MODEL TCM-X300
0306-001
296

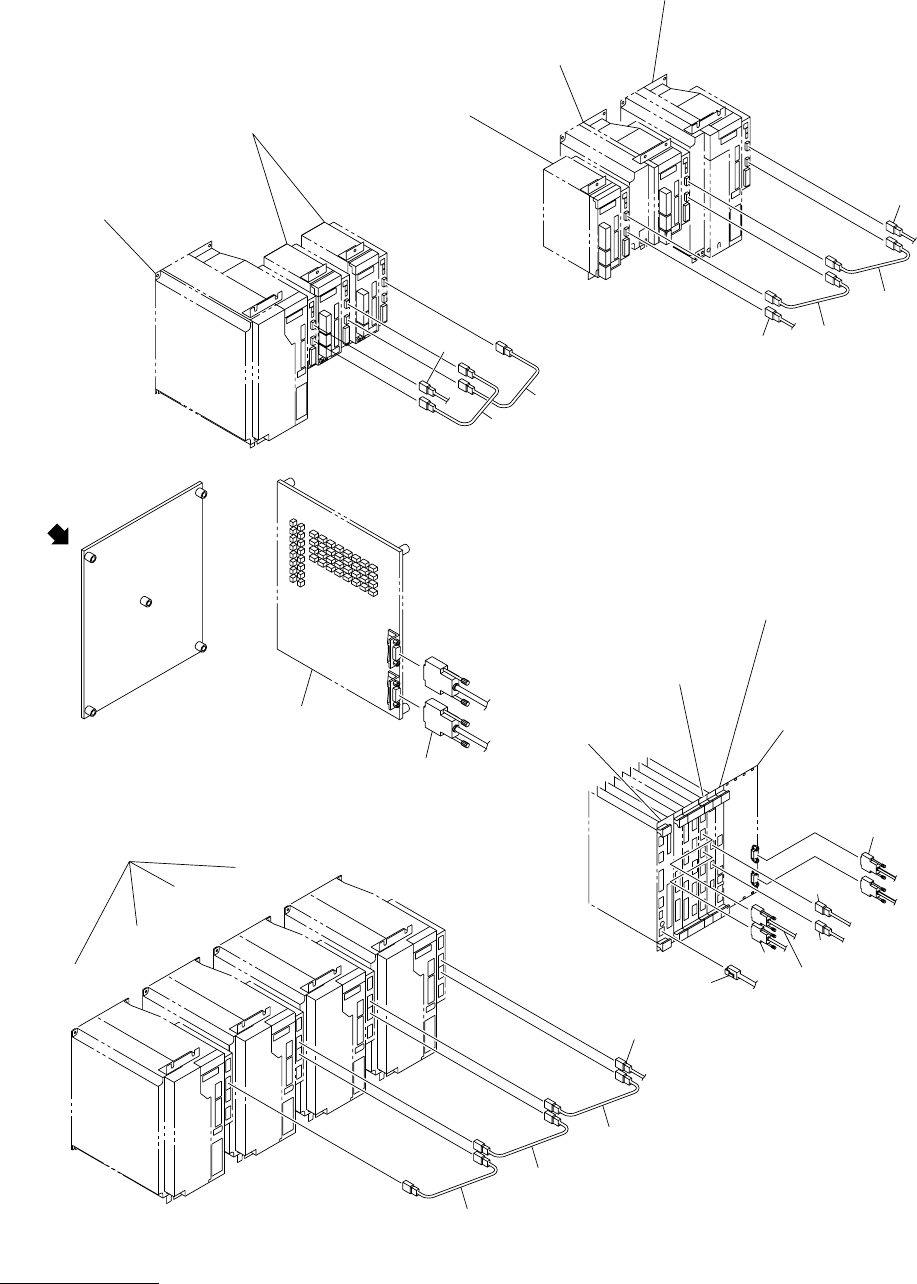

ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-8 ᧄㇱ㧞 Main Body Section-2
752
See Fig.RL-2
Key No.155
See Fig.RL-2
Key No.154
See Fig.RL-2
Key No.153
ASMD6(X)
ASMD7(Y)
ASMD8(XYTR)
751
753
759
758
See Fig.RL-5
Key No.453
ASMD2
(F1)
ASMD3
(F2)
ASMD4
(F3)
ASMD5
(F4)
757
756
760
See Fig.RM-1
Key No.54
ASMD1(H)
753
774
See Fig.RH-1
Key No.53
See Fig.RH-1
Key No.55
See Fig.RH-1
Key No.61
770
CPU1 PCB
SIO PCB
JAMMC-EB005 PCB
See Fig.RH-1
Key No.52
769
768
760
759
See Fig.RM-1
Key No.55
ASMD10
(MZ)
ASMD9
(CZ)
755
754
T1 PCB
See Fig.RG-1
Key No.63
767
VIEW "A"
A
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
297
SB-8
751 630 121 7208 ASSY,CORD(MECH-LINK 0.5M) 1 XCN60(X)-XCN61(Y) 812SB-010-751
752 630 121 7208 ASSY,CORD(MECH-LINK 0.5M) 1 XCN62(Y)-XCN69(XYTR)
812SB-010-752
753 630 121 7222 ASSY,CORD(MECH-LINK 4.5M) 1 XCN70(XYTR)-XCN63(H)
812SB-010-753
754 630 121 7208 ASSY,CORD(MECH-LINK 0.5M) 1 XCN64(H)-XCN65(CZ)
812SB-010-754
755 630 121 7208 ASSY,CORD(MECH-LINK 0.5M) 1 XCN66(CZ)-XCN67(MZ)
812SB-010-755
756 630 121 7208 ASSY,CORD(MECH-LINK 0.5M) 1 XCN52(F1)-XCN53(F2)
812SB-010-756
757 630 121 7208 ASSY,CORD(MECH-LINK 0.5M) 1 XCN54(F2)-XCN55(F3)
812SB-010-757
758 630 121 7208 ASSY,CORD(MECH-LINK 0.5M) 1 XCN56(F3)-XCN57(F4)
812SB-010-758
759 630 121 7215 ASSY,CORD(MECH-LINK 3.0M) 1 XCN59(X)-XCN22(UA57)
812SB-010-759
760 630 121 7215 ASSY,CORD(MECH-LINK 3.0M) 1 XCN51(F1)-XCN23(UA57)
812SB-010-760
767 630 092 4145 ASSY,CORD(X200SB102) 1 XCN20(UA51)-X320(T1)
812SB-010-767
768 630 092 4169 ASSY,CORD(X200SB104) 1 XCN12- 812SB-010-768
769 630 092 4176 ASSY,CORD(X200SB105) 1 XCN13- 812SB-010-769
770 630 119 7906 ASSY,CORD(X210SB185) 1 XCN34- 812SB-010-770
774 630 092 4237 ASSY,CORD(X200SB110) 1 XCN8-XCN184 812SB-010-774
