P-0187-001 - 第58页
MODEL TCM-X300 0306-001 56 ⼂࡙࠾࠶࠻ㇱ RECOGNITION UNIT SECTION Fig. EB-7 ㇱຠ⼂ࠞࡔ Recognition Camera Key No.119 See Fig.EB-2 601 602 603 654 655 656 652 604 606 605 606 605 604 656 655 653 651 651 651 See Fig.EB-2 Key No.117
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
55
EB-3
201 630 117 0329 SUPPORT 1 812EB-010-201
202 630 000 7909 BOLT,HEX-SCT 4 812EB-010-202
203 411 141 3001 WASHER SPR 6 4 812EB-010-203
204 411 141 4305 WASHER V 6X12.5X1.6 4 812EB-010-204
214 630 089 2918 BLOCK 1 812EB-010-214
215 630 000 7817 BOLT,HEX-SCT 2 812EB-010-215
216 411 141 6705 WASHER SPR 5 7 812EB-010-216
217 630 001 0220 WASHER 4 812EB-010-217
218 630 086 1372 SUPPORT 1 812EB-010-218
219 630 000 7794 BOLT,HEX-SCT 3 812EB-010-219
222 630 090 1252 BRACKET 1 812EB-010-222
223 630 000 7756 BOLT,HEX-SCT 2 812EB-010-223
224 630 090 1269 BLOCK(AIR BLOW) 1 812EB-010-224
225 630 000 7534 BOLT,HEX-SCT 2 812EB-010-225
226 411 141 2806 WASHER SPR 3 5 812EB-010-226
227 411 141 3902 WASHER V 3X7X0.5 3 812EB-010-227
228 630 029 6389 PIPE FITTINGS 1 812EB-010-228
232 411 141 4107 WASHER V 5X10X1 3 812EB-010-232
237 630 000 7565 BOLT,HEX-SCT 3 812EB-010-237
238 630 001 0206 WASHER 2 812EB-010-238
253 630 085 5616 ASSY,SCOPE UNIT 1 #SHT029-69U 812EB-010-253
254 630 085 3124 LIGHTING UNIT 1 #MLA-L31F-1 812EB-010-254
MODEL TCM-X300
0306-001
56
⼂࡙࠾࠶࠻ㇱ RECOGNITION UNIT SECTION

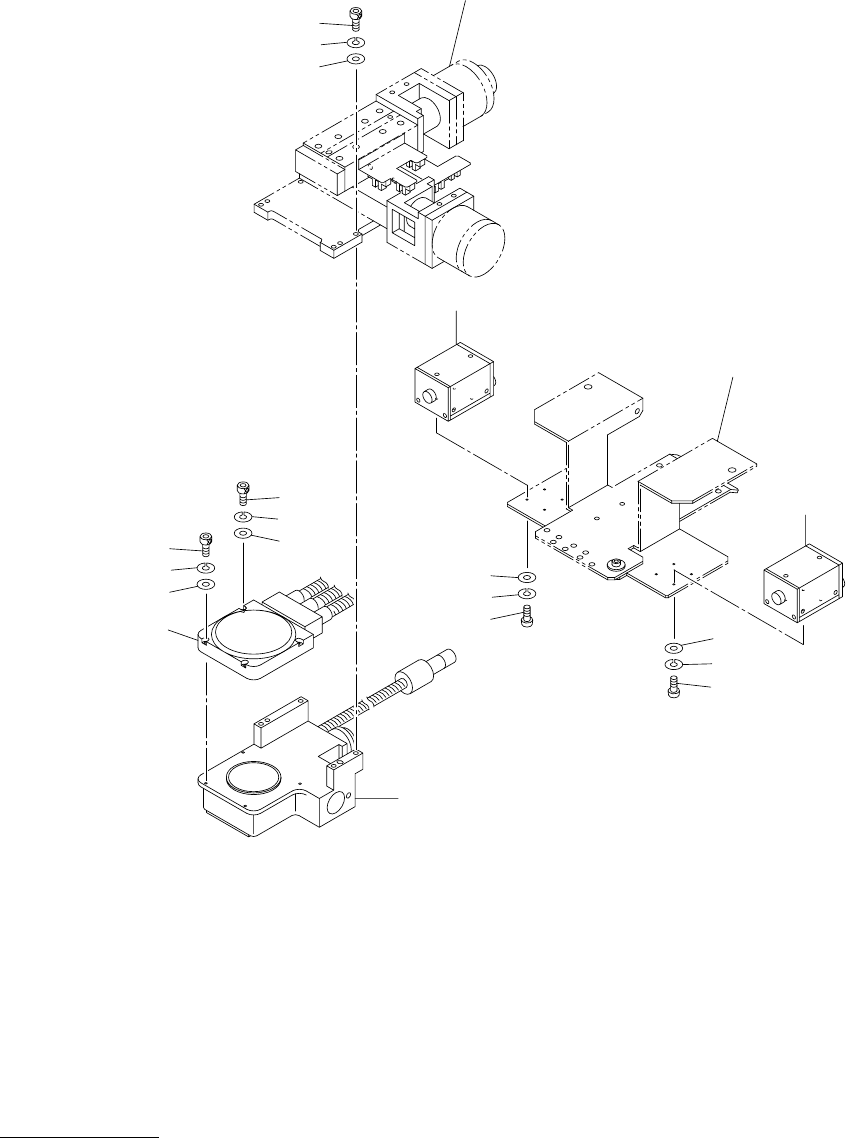

Fig. EB-7 ㇱຠ⼂ࠞࡔ Recognition Camera
Key No.119
See Fig.EB-2
601
602
603
654
655
656
652
604
606
605
606
605
604
656
655
653
651
651
651
See Fig.EB-2
Key No.117
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
57
EB-7
601 630 000 7770 BOLT,HEX-SCT 4 812EB-010-601
602 411 141 6705 WASHER SPR 5 4 812EB-010-602
603 411 141 4107 WASHER V 5X10X1 4 812EB-010-603
604 411 039 2604 SCR PAN 2X6 8 812EB-010-604
605 411 141 2509 WASHER SPR 2 8 812EB-010-605
606 411 141 3605 WASHER V 2X5X0.3 8 812EB-010-606
651 630 117 0794 ASSY,SCOPE UNIT 1 #KD-4812CU 812EB-010-651
652 630 117 0770 LIGHTING UNIT 1 #SRP36W-1650S-B 812EB-010-652
653 630 000 7503 BOLT,HEX-SCT 2 812EB-010-653
654 630 000 7558 BOLT,HEX-SCT 2 812EB-010-654
655 411 141 2806 WASHER SPR 3 4 812EB-010-655
656 411 141 5807 WASHER F 3X6X0.5 4 812EB-010-656
