MODEL TCM-X300 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 63 EC-2 10 2 630 090 9388 NUT ,HE X 1 812EC-0 10-102 10 6 630 001 1081 ROD END 1 BRF8L 812 EC-0 10-10 6 10 7 630 048 4960 PIN ,HI NG E 1 812EC- 01…
MODEL TCM-X300
0306-001
62
ࠞ࠶࠲ㇱ CUTTER SECTION
Fig. EC-2 ࠞ࠶࠲ࡠ࠶࠼ Cutter Rod
111
102
110
109
108
107
106
See Fig.KC-3
Key No.210
See Fig.KC-1
Key No.27
126
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
63
EC-2
102 630 090 9388 NUT,HEX 1 812EC-010-102
106 630 001 1081 ROD END 1 BRF8L 812EC-010-106
107 630 048 4960 PIN,HINGE 1 812EC-010-107
108 411 141 1007 NUT HEX 8 1 812EC-010-108
109 411 141 3100 WASHER SPR 8 1 812EC-010-109
110 411 141 4503 WASHER V 8X17X1.6 1 812EC-010-110
111 630 117 0909 ROD 1 812EC-010-111
126 411 108 8704 NUT HEX 8 1 812EC-010-126
MODEL TCM-X300
0306-001
64
࠻ࡦࠬࡈࠔㇱ TRANSFER SECTION

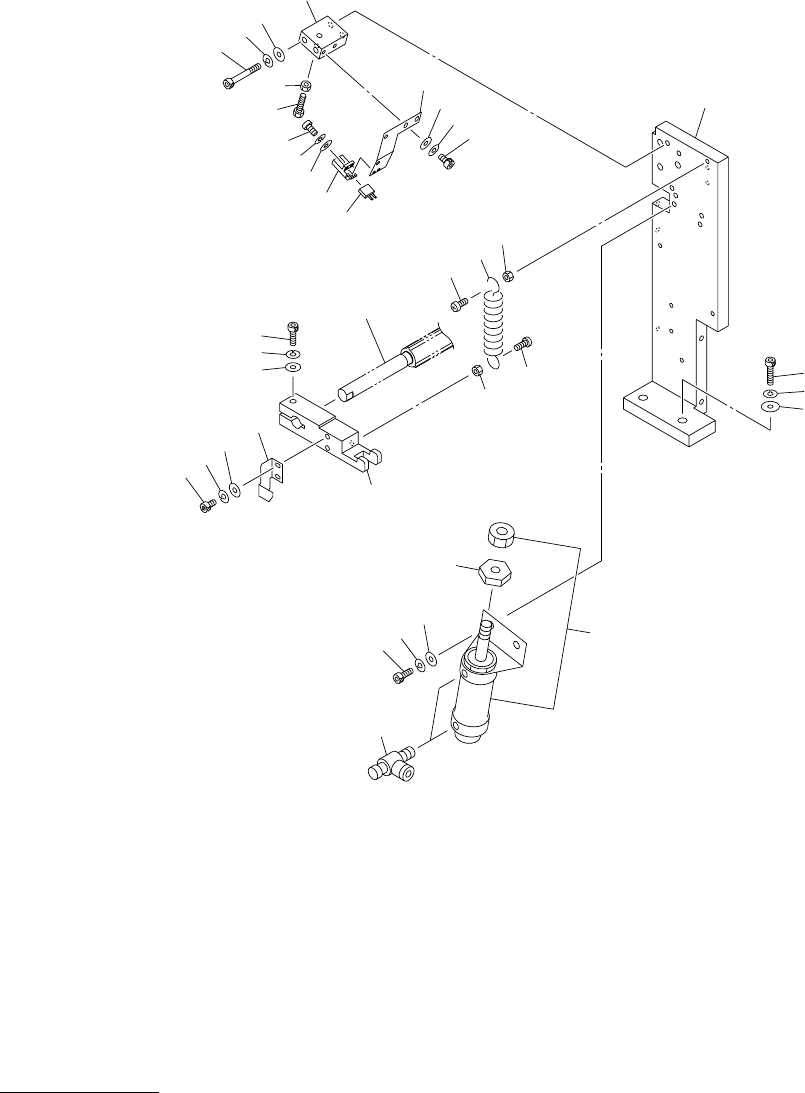

Fig. F-1 ၮ᧼⒖タῪਅࠪࡦ࠳ Transfer Claw Leveller Cylinder
30
31
32
44
43
42
40
41
13
14
12
See Fig.F-2
Key No.106
15
16
17
18
22
23
21
19
11
24
26
27
25
28
29
20
3
2
4
1
36
37
38
39
33
34
35
