MODEL TCM-X300 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 91 G-7 60 2 630 006 0409 GE AR ,R E DUCTION 1 4 G N12.5K 812G--010-602 60 3 630 092 9782 ASSY ,MOTOR,REVERSIBLE 1 M3 812G--010-603 60 4 630 000 78…
MODEL TCM-X300
0306-001
90
L ࠦࡦࡌࠕㇱ L CONVEYOR SECTION

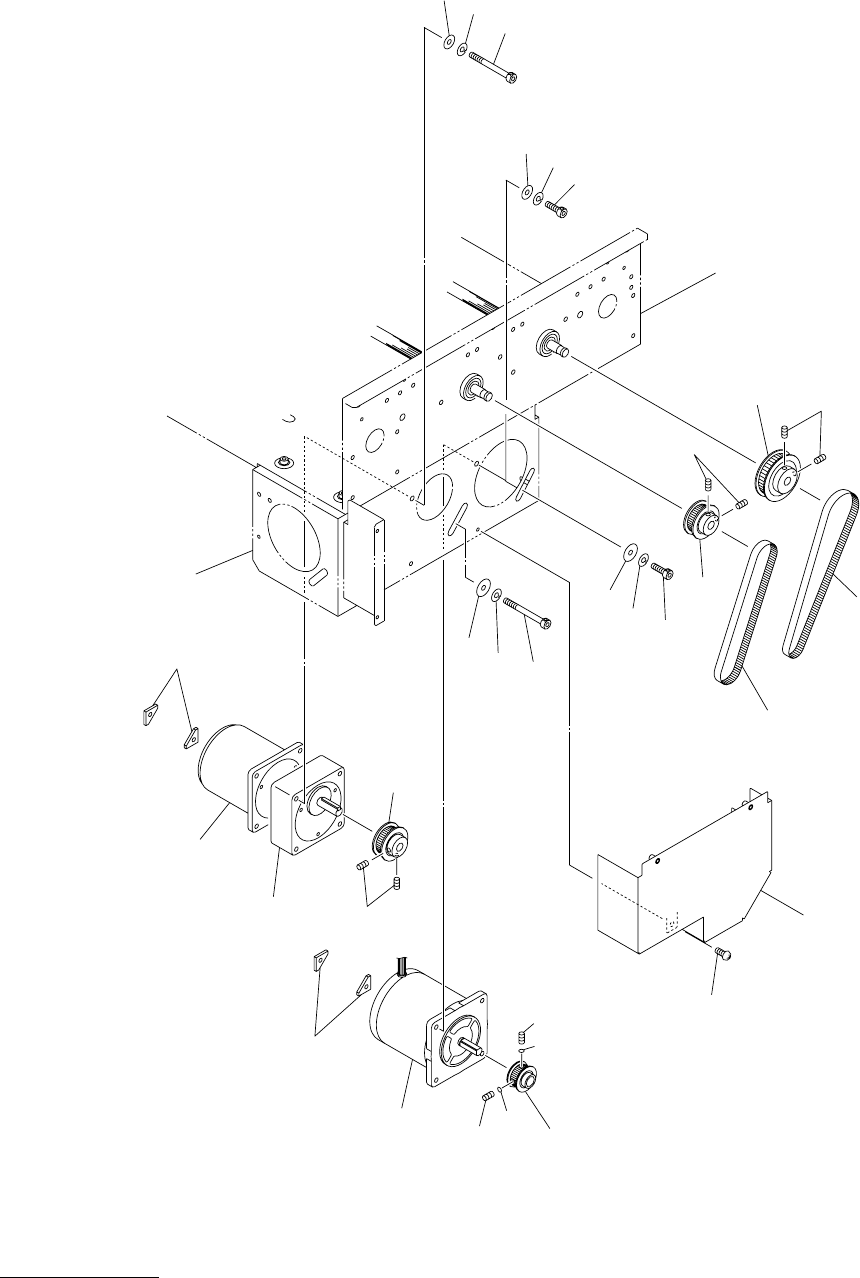

Fig. G-7 ࠦࡦࡌࠕࡌ࡞࠻㚟േㇱ Conveyor Belt Driver
615
621
621
615
614
610
620
616
610
611
610
607
612
608
608
603
602
605
613
606
605
613
606
605
604
607
605
604
627
626
609
609
See Fig.G-1
Key No.1
See Fig.G-5
Key No.413
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
91
G-7
602 630 006 0409 GEAR,REDUCTION 1 4GN12.5K 812G--010-602
603 630 092 9782 ASSY,MOTOR,REVERSIBLE 1 M3 812G--010-603
604 630 000 7848 BOLT,HEX-SCT 2 812G--010-604
605 411 141 6705 WASHER SPR 5 4 812G--010-605
606 411 141 4107 WASHER V 5X10X1 2 812G--010-606
607 630 001 0220 WASHER 2 812G--010-607
608 630 085 7788 NUT 4 812G--010-608
609 630 009 2684 PULLEY,TIMING 2 812G--010-609
610 630 000 8951 SET SCREW 6 812G--010-610
611 630 066 9992 BELT,TIMING 1 812G--010-611
612 630 118 2476 ASSY,MOTOR,STEPPING 1 MPM22(L2CV) 812G--010-612
613 630 000 7770 BOLT,HEX-SCT 2 812G--010-613
614 630 119 7951 PULLEY,TIMING 1 812G--010-614
615 630 008 2296 SET SCREW 2 812G--010-615
616 630 053 4351 BELT,TIMING 1 812G--010-616
620 630 107 0025 PULLEY,TIMING 1 812G--010-620
621 630 119 9290 SHEET 2 812G--010-621
626 630 123 8463 COVER(MOTOR) 1 812G--010-626
627 411 051 2804 SCR TRS 4X8 1 812G--010-627
MODEL TCM-X300
0306-001
92
R ࠦࡦࡌࠕㇱ R CONVEYOR SECTION
Fig. H-1 ࿕ቯࠦࡦࡌࠕࠪࡘ࠻ Fixed Side Conveyor Chute
5
4
3
26
23
5
4
3
26
23
35
2
26
39
44
43
42
38
40
41
27
33
31
30
25
20
21
46
45
35
26
17
31
33
30
29
6
17
26
18
17
26
35
21
28
31
32
30
46
45
8
9
22
3
4
5
3
4
5
8
9
22
37
8
9
22
37
22
9
8
1
22
9
8
48
49
47
