- - 1. BASEUNIT&G UIDEUNITCOMPON ENTS

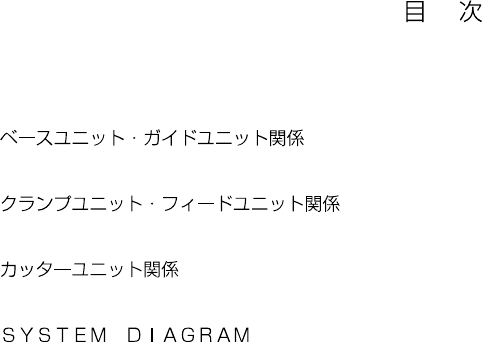

CONTENTS

1.BASEUNIT&GUIDEUNITCOMPONENTS ......................................................................................................................1

2.CLAMPUNIT&FEEDUNITCOMPONENTS .....................................................................................................................3

3.CUTTERUNITCOMPONENTS...........................................................................................................................................5

4.SYSTEMDIAGRAM.............................................................................................................................................................7

- -

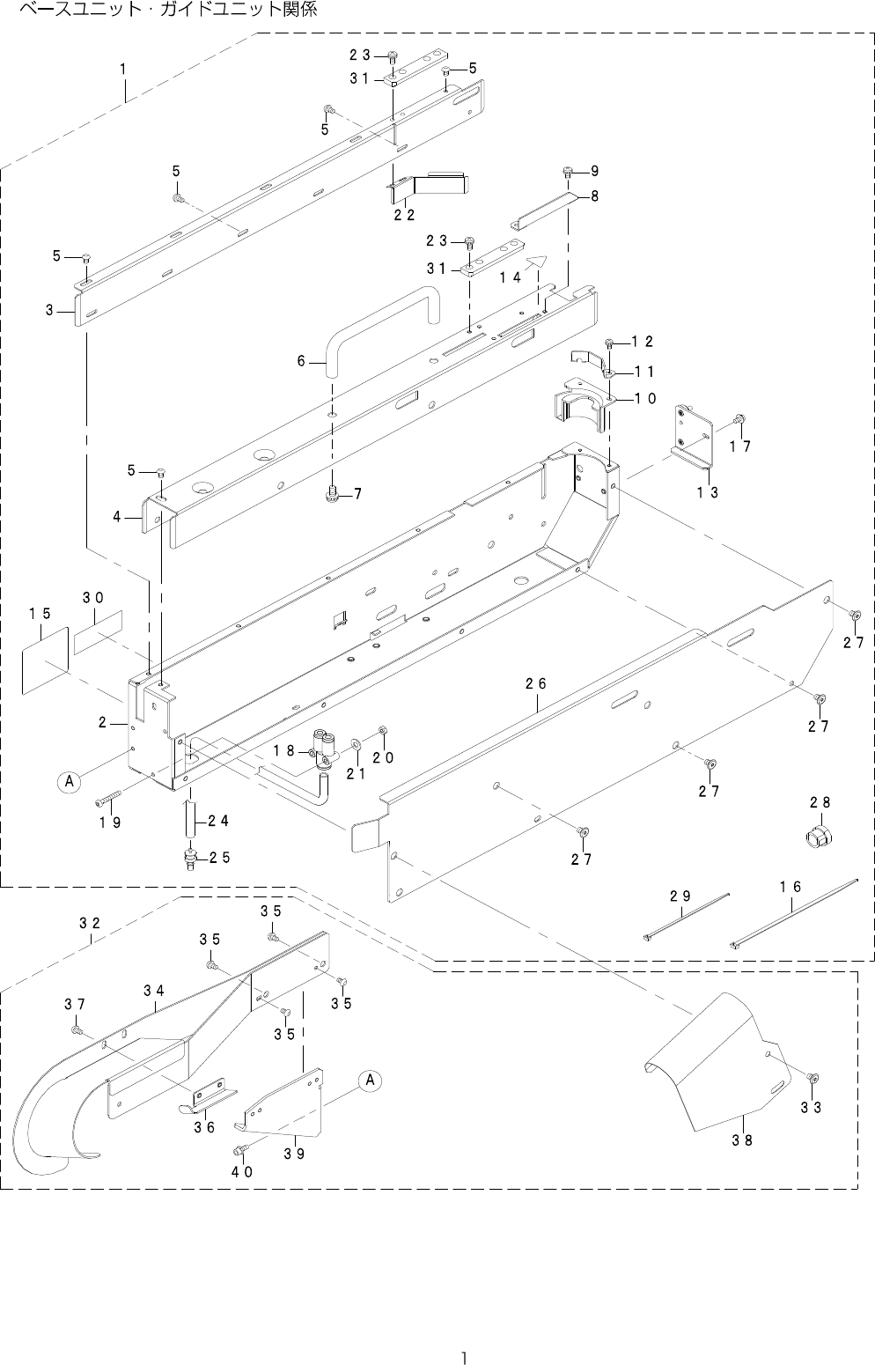

1. BASEUNIT&GUIDEUNITCOMPONENTS

- -

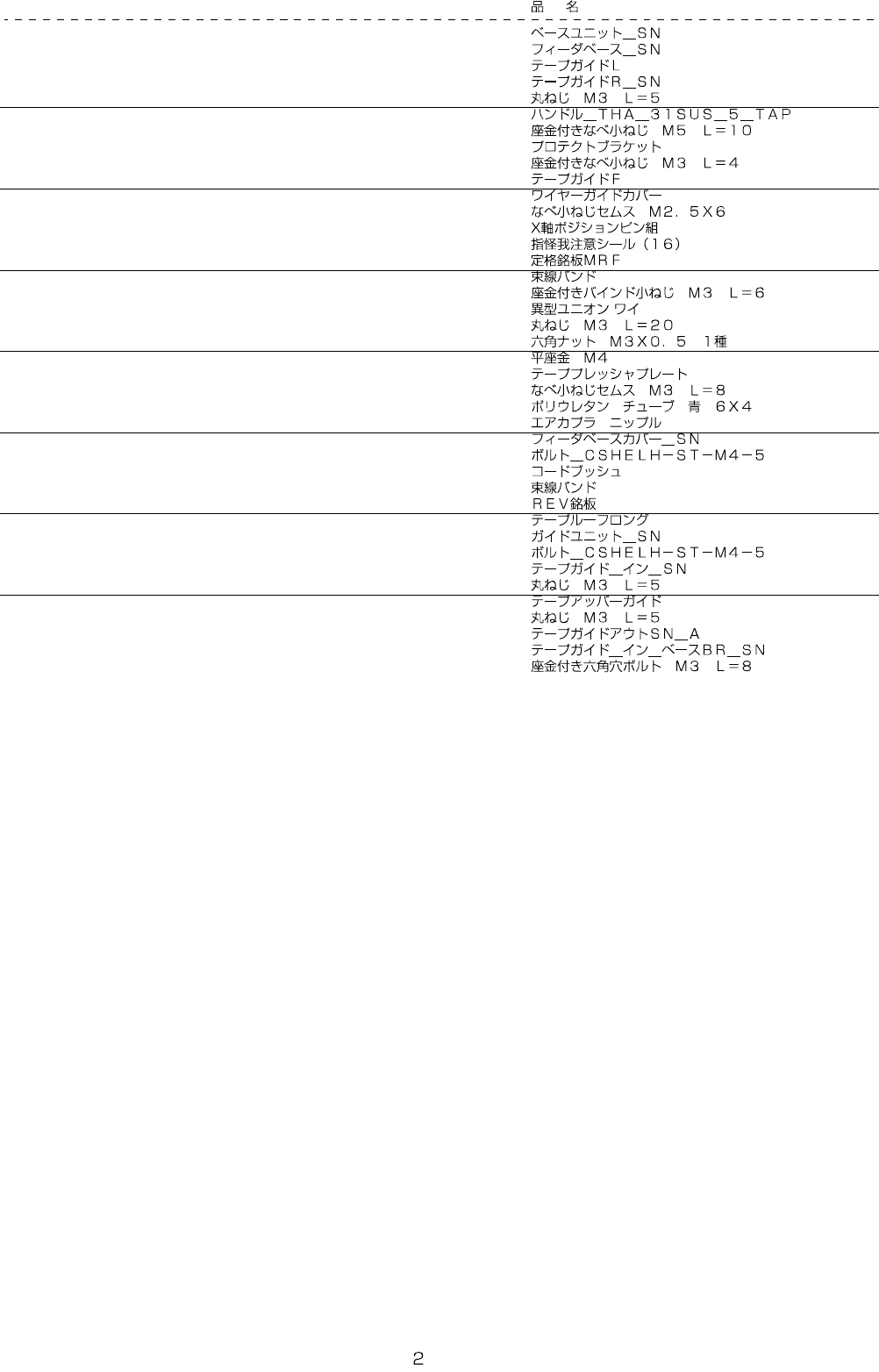

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-37462 BASE_UNIT_SN 1

2 402-37471 FEEDER_BASE_SN (1)

3 401-35019 TAPEGUIDEL (1)

4 402-37472 TAPE_GUIDE_R_SN (1)

5 SM-3030552-TN SCREWM3L=5 (12)

6 402-37484 HANDLE_THA_31SUS_5_TAP (1)

7 SL-4051091-SC SCREWM5L=10 (2)

8 401-17478 PROTECTBR (1)

9 SL-4030481-SF SCREWM3L=4 (2)

10 401-15811 TAPEGUIDEF (1)

11 401-17508 WIREGUIDECOVER (1)

12 SL-4850691-SC SCREWM2.5X6 (2)

13 402-37467 X_AXIS_POSITION_PIN_ASM (1)

14 CM-3002000-01 FINGERINJURYCAUTIONLABEL(16) (1)

15 401-18320 RATINGLABELMRF (1)

16 EA-9500B02-00 CABLEBAND (1)

17 SL-5030635-SN SCREWM3L=6 (2)

18 PJ-3080600-08 DIFFERENTDIAMETERUNIONY (1)

19 SM-3032052-TN SCREWM3L=20

(1)

20 NM-6030001-SC NUTM3X0.5TYPE1 (1)

21 WP-0430801-SC WASHERM4 (1)

22 401-35031 TAPEPRESSUREPLATE (1)

23 SL-4030891-SC SCREWM3X8 (4)

24 BT-0600400-EC URETHANETUBEBLUE6X4 (0.5)

25 PJ-0320090-05 AIRCOUPLERNIPPLE (1)

26 402-37473 FEEDER_BASE_COVER_SN (1)

27 402-37480 BOLT_CSHELH-ST-M4-5 (8)

28 HX-0002100-00 CORDBUSHING (1)

29 EA-9500B01-00 CABLEBAND (2)

30 E9635-455-000 REVISIONSEAL (1)

31 401-66359 TAPE_ROOF_LONG (2)

32 402-37466 GUIDE_UNIT_SN 1

33 402-37480 BOLT_CSHELH-ST-M4-5 (2)

34 402-37482 TAPE_GUIDE_IN_SN (1)

35 SM-3030552-TN SCREWM3L=5 (4)

36 401-15808 TAPEUPPERGUIDE (1)

37 SM-3030552-TN SCREWM3L=5 (2)

38 402-56450 TAPE_GUIDE_OUT_SN_A (1)

39 402-37481 TAPE_GUIDE_IN_BASE_BR_SN (1)

40 SL-6030892-TN SCREWM3L=8 (2)
