3.16 - 24 Head board SP6 -12 - compon ent mounti ng diagra m (Sh. 2 of 2 ) SIPLACE 80S-20 Head board SP6-12 - compo nent m ounting diagra m (Sh. 2 of 2) C0005N7 2.dwg 003212 14-07 0101ND 3 Head b oard SP6- 12 - co mpone …
SIPLACE 80S-20 Head board SP6-12 - component mounting diagram (Sh. 1 of 2) 3.16 - 23

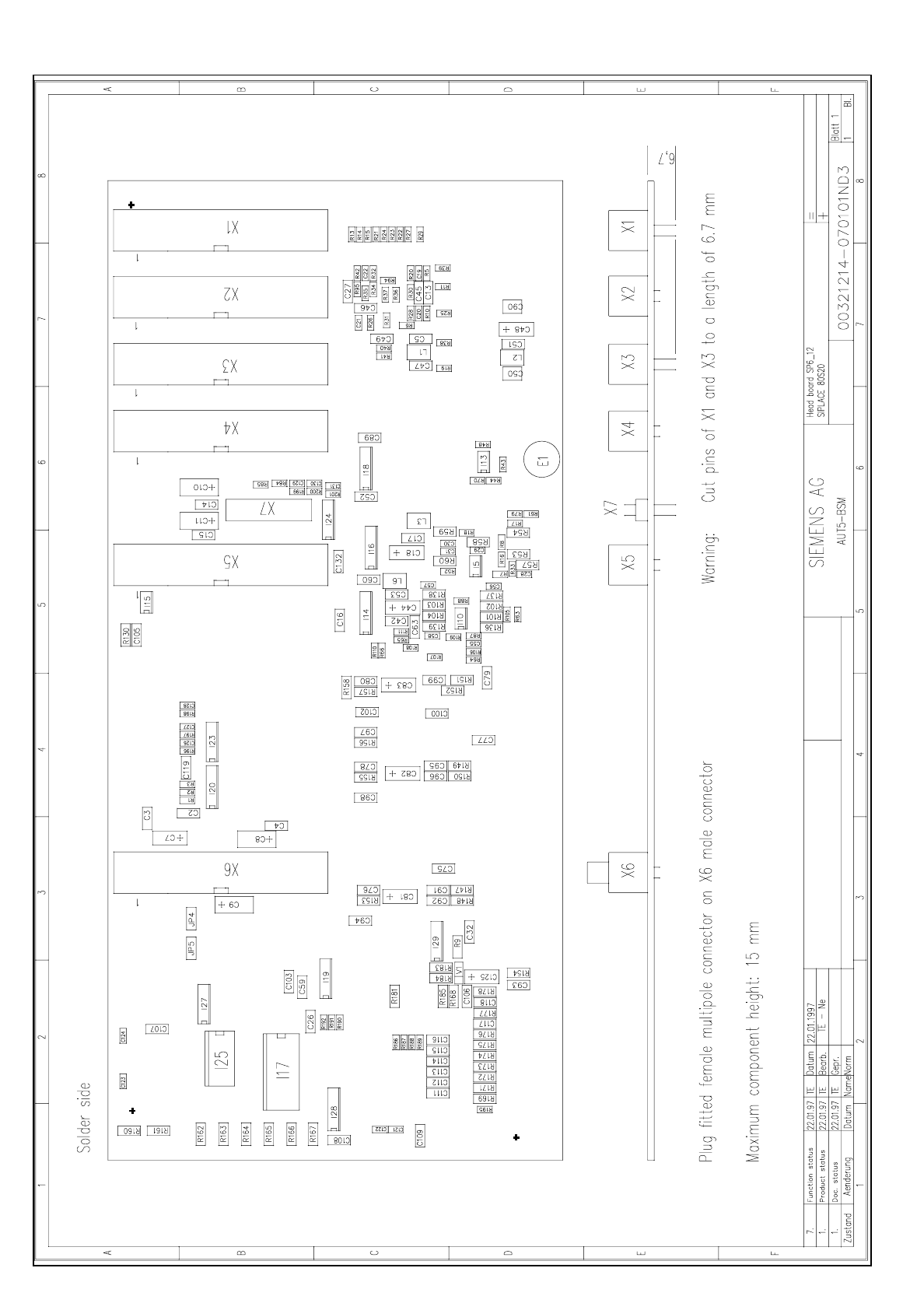

Head board SP6-12 - component mounting diagram (Sh. 1 of 2)
C0005N71.dwg
00321214-070101ND3 Head board SP6-12 - component mounting diagram (Sh. 1 of 2)
3.16 - 24 Head board SP6-12 - component mounting diagram (Sh. 2 of 2) SIPLACE 80S-20
Head board SP6-12 - component mounting diagram (Sh. 2 of 2)
C0005N72.dwg
00321214-070101ND3 Head board SP6-12 - component mounting diagram (Sh. 2 of 2)
SIPLACE 80S-20 Motor/tachoY axis 3.16 - 25
Motor/tachoY axis
C0420L01.dwg
1710470-C0420-000-01-L-01-4 Motor/tacho Y axis
