9.6 - 8 Conve rsi on in stru cti ons for S ipl ace fr om 23 0/4 00V t o 11 0/208 V (S h. 6 of 6) OPTIO NS Conve rsion inst ructions for Si place from 230/40 0V to 11 0/208V (Sh. 6 of 6) Y0921L5 6.dwg 171047 0-Y0 921-000-…

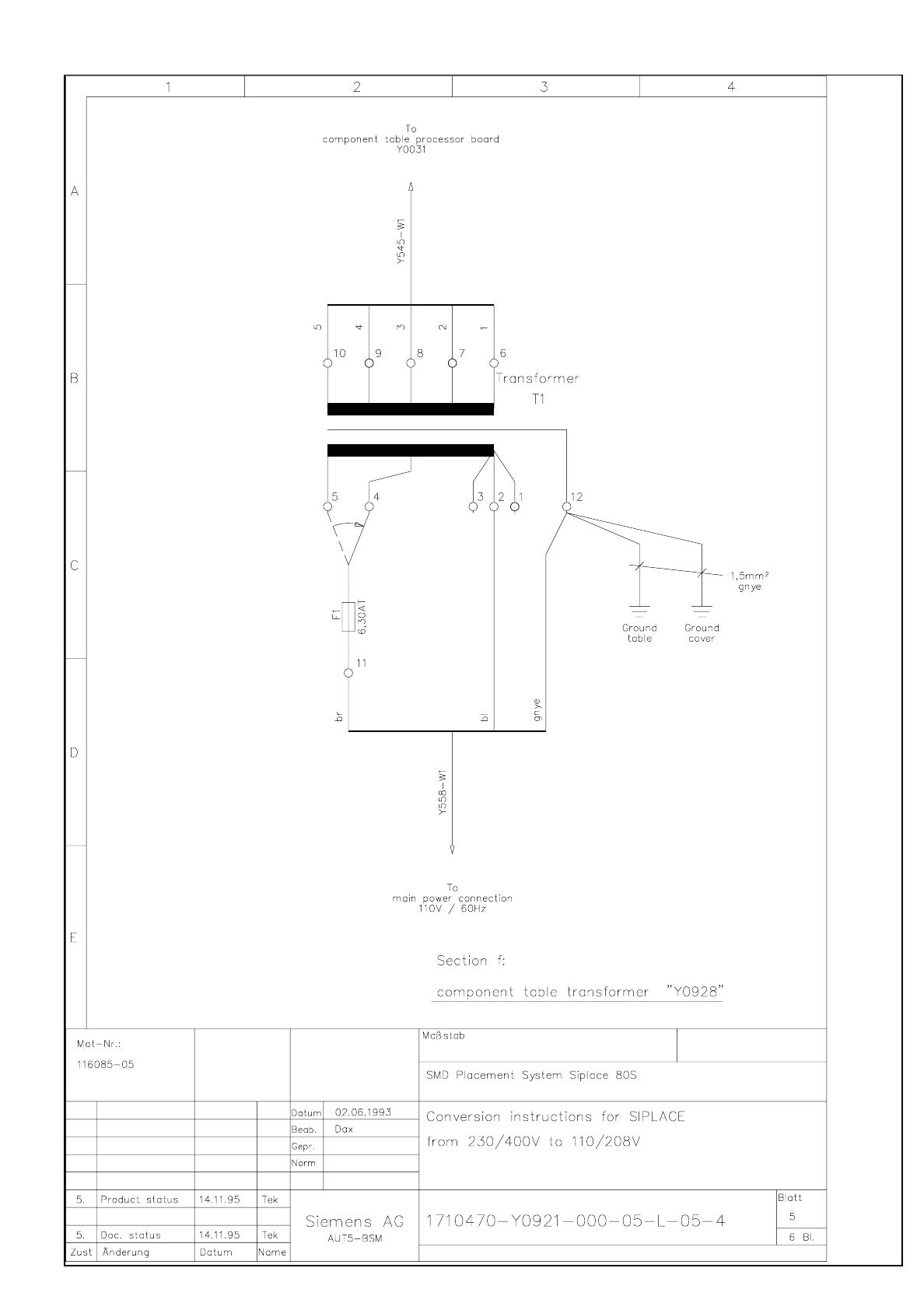

OPTIONS Conversion instructions for Siplace from 230/400V to 110/208V (Sh. 5 of 6) 9.6 - 7
Conversion instructions for Siplace from 230/400V to 110/208V (Sh. 5 of 6)
Y0921L55.dwg
1710470-Y0921-000-05-L-05-4 Conversion instructions for Siplace from 230/400V to 110/208V (Sh. 5 of 6)

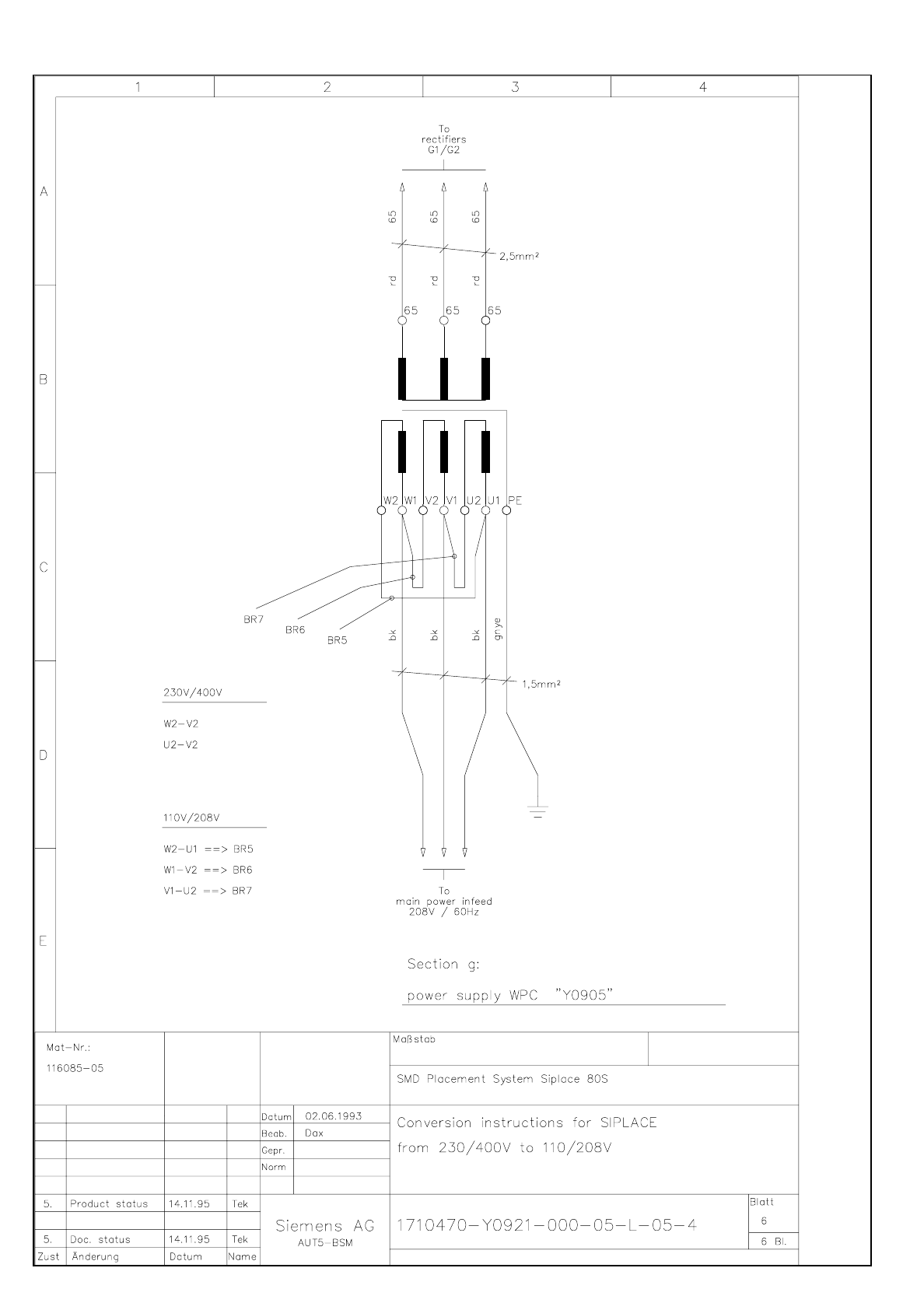

9.6 - 8 Conversion instructions for Siplace from 230/400V to 110/208V (Sh. 6 of 6) OPTIONS
Conversion instructions for Siplace from 230/400V to 110/208V (Sh. 6 of 6)
Y0921L56.dwg
1710470-Y0921-000-05-L-05-4 Conversion instructions for Siplace from 230/400V to 110/208V (Sh. 6 of 6)

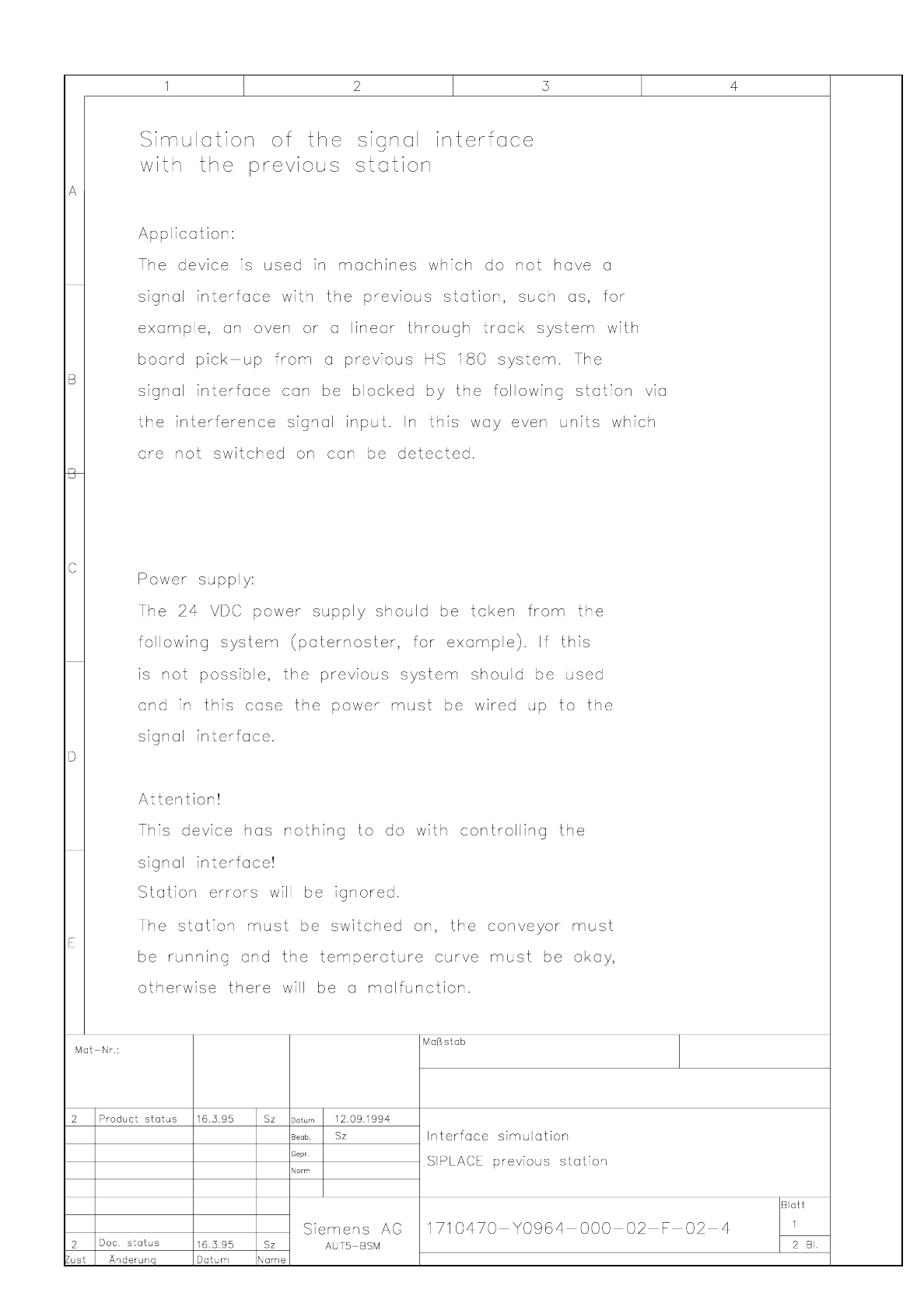

OPTIONS Interface simulation previous station SIPLACE (Sh. 1 of 2) 9.7 - 1
9.7 Interface simulation SIPLACE (00160044-02, 00160045-02)
Interface simulation previous station SIPLACE (Sh. 1 of 2)
Y0964F21.dwg
1710470-Y0964-000-02-F-02-4 Interface simulation previous station SIPLACE (Sh. 1 of 2)
