3D Koplan SIPLACE X4 S / X3 S Page 8 / 8 22.11.2021 Pos. Item no. Description Part marking PC SX4A 24 03102026-01 SUPPORT SHEET MET. LEFT CPL. BOX PC SX4A 25 03002842S01 KLETTOSTAR FLEECE 20X80 STANDARD PARTS 03104469-01…
3D Koplan SIPLACE X4 S / X3 S
Page 6 / 8 22.11.2021
3D Koplan SIPLACE X4 S / X3 S
Page 7 / 8 22.11.2021
Pos. Item no. Description Part marking
00519807-01 3D COPLANARITY SIPLACE X 4S / X3
S
2 03120423S05 BOXPC ABP402-A CPU1020E 2XPCI
SSD240 W10
SPARE PART
03054677S01 3D COPLANARITY SENSOR +
TRANSMISSION
SPARE PART
03052591-01 CAMERA LINK INTERFACE NI
PCI-1428
5 03052362-01 3D - COPLANARITY SENSOR
03053017-01 CABLE: CAMERA LINK 3D SENSOR
(5 METERS)
03091019-02 CABLE SET 3D COPLANARITY X4 S /
X3 S
03090848-01 ADAPTER CABLE POWER BOXPC
UND COPLAN. PC
SPARE PART
03090849-01 CABLE: POWER 3D COPLANARITY
SENSOR
SPARE PART
00805141-01 CABLE TIE W=3.6MM L=140MM TY
24M
STANDARD PARTS
03055217-01 CABLE: AXIS SIGNALS 3D SENSOR
03055267-01 CONNECTOR RJ45 INCL. BEND
PROTECTION
03068957-01 SENSOR CONNECTOR M12 MALE
4POLE STRAIGHT
03103212-01 DVI EXTENSION CABLE DVI-D 24+1
2M
SPARE PART
03103204-01 PATCH CABLE CAT.5E S-FTP L=2M
GY
03057639-01 USB EXTENSION CABLE A-PLUG - A-
JACK 1.8M
03106783-01 PATCH CABLE CAT.6A S-FTP 3M
SIC8-030 RTF
SPARE PART
18 03095549-01 ASSEMBLY HOLDER, COPLANARITY
SENSOR
19 03100624-02 HOLDER, COPLANARITY SENSOR
20 03095431-02 RETAINING PLATE 3D COPLANARITY
SENSOR
21 03100623-02 HOLDER, COPLANARITY SENSOR,
FRAME

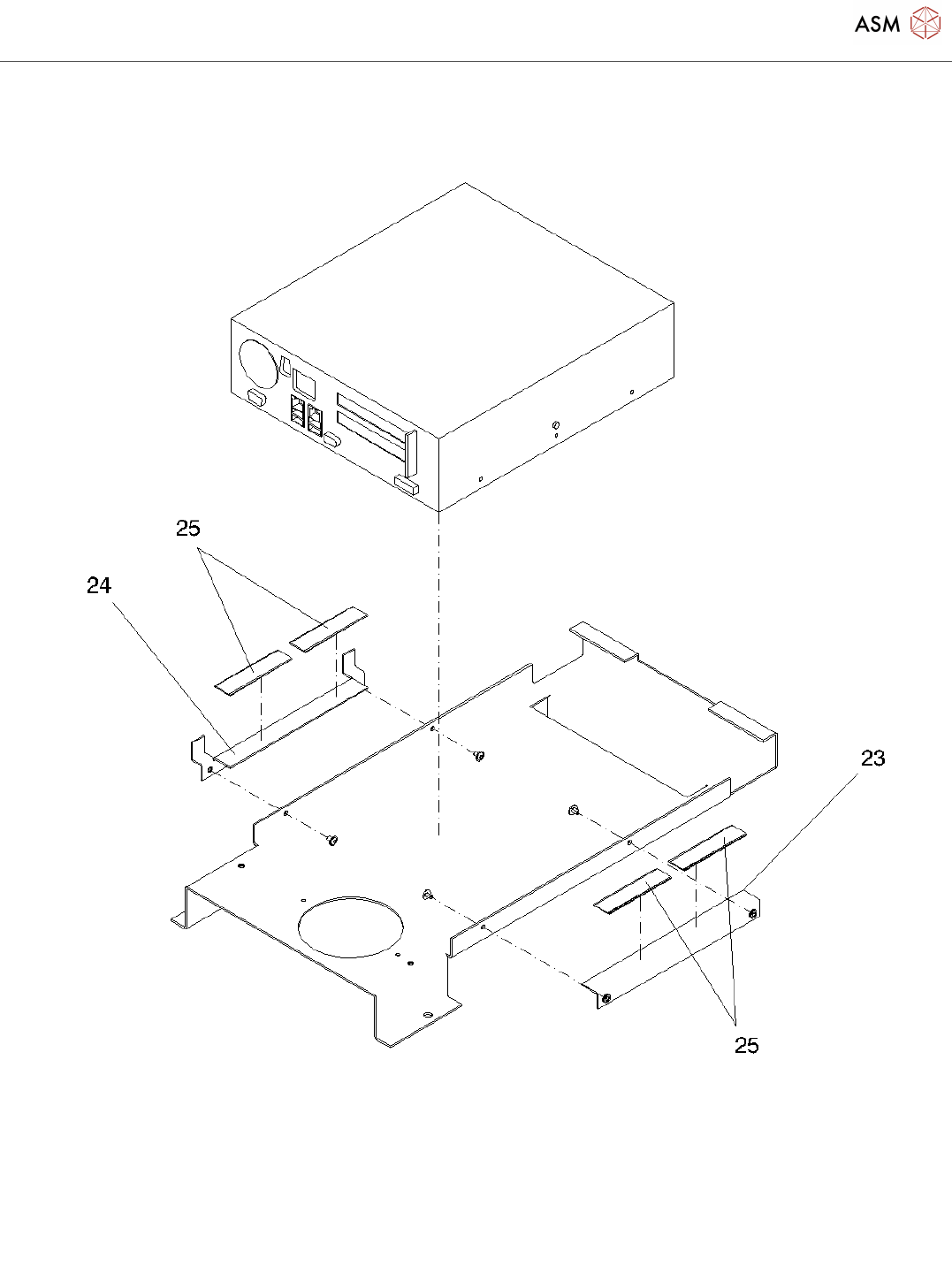

22 03102011-01 INSTALLATION ASSEMBLY BOX-PC
SX4A
23 03102046-01 SUPPORT SHEET MET. RI. CPL. BOX
3D Koplan SIPLACE X4 S / X3 S
Page 8 / 8 22.11.2021
Pos. Item no. Description Part marking
PC SX4A
24 03102026-01 SUPPORT SHEET MET. LEFT CPL.
BOX PC SX4A
25 03002842S01 KLETTOSTAR FLEECE 20X80 STANDARD PARTS
03104469-01 ASSEMBLY MATERIAL 3D-SENSOR X-
SERIES S
00315365-03 EICHTEIL,KOPLANARITAETSMODUL TOOL
00315365-03 EICHTEIL,KOPLANARITAETSMODUL TOOL
03010316-01 WARNSCHILD NR. 216
00805141-01 CABLE TIE W=3.6MM L=140MM TY
24M
STANDARD PARTS
31 03118416-01 LAN CARD PCI EXPRESS 2X GIGABIT
LAN
SPARE PART
03099405-02 MAIN MEMORY SDRAM DDR3
PC3-8500 2GB
SPARE PART
