Fully Integrated, Repeatable Volumetric Accuracy
Imagine a complete solution that ensures high volumetric dispense accuracy for one- and two-component applications. A
solution that does not require a third-party control box or productivity-limiting rell cycles. Nordson Electronic Solutions
delivers that solution with the Vortik
®

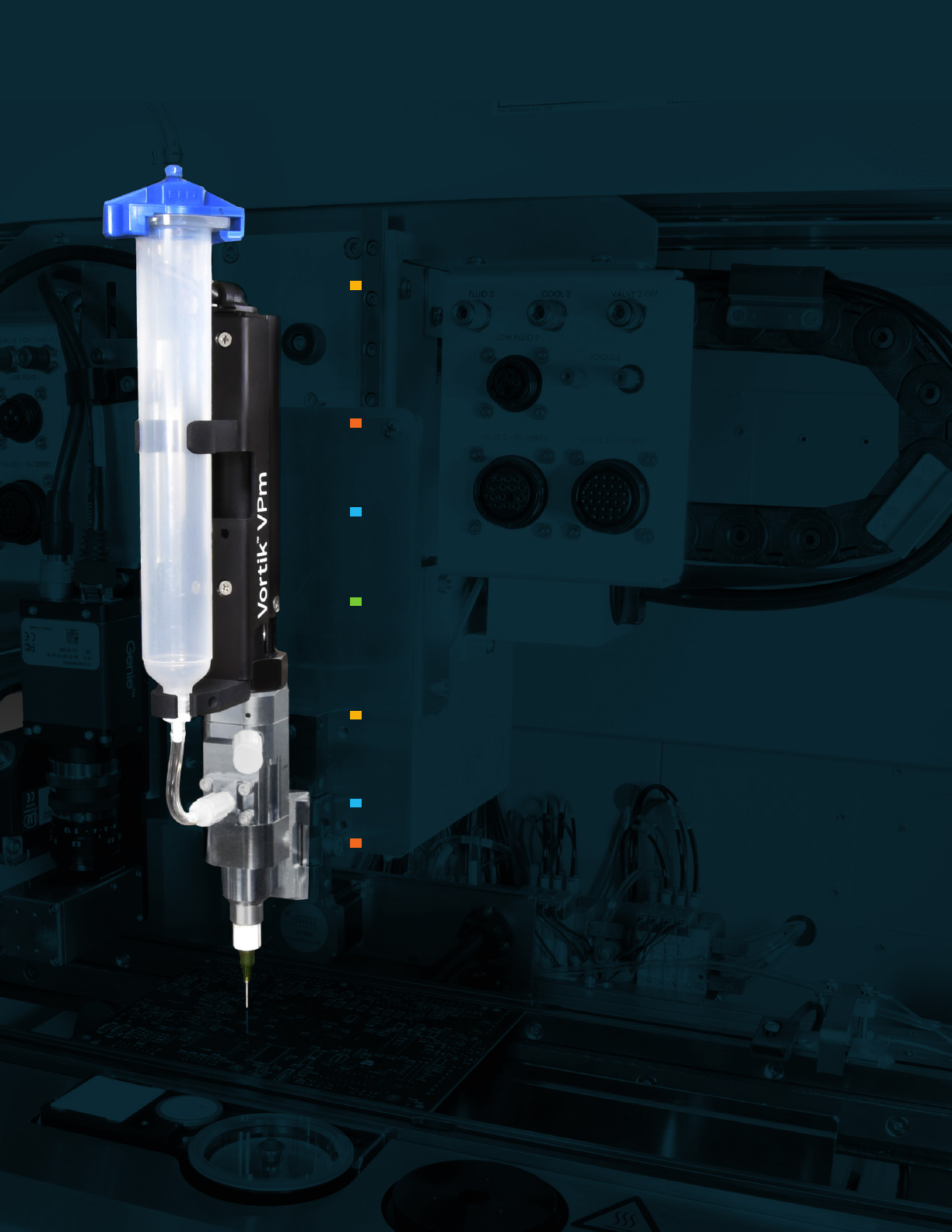

family of progressive cavity pumps (PCP). Vortik PCP pumps are fully integrated with
our industry-leading dispensing systems and software to deliver repeatable volumetric accuracy without interruption. The
solutions are ideal for demanding MEMs, PCBA, electromechanical, packaging, and automotive assembly applications such as
bonding, sealing, encapsulation, and potting.
ASYMTEK
Vortik
Progressive Cavity Pumps
nordsonasymtek.com | +1.760.431.1919
Vortik Sets the Standard
A fully integrated system solution, complete with process
controls — patent pending ASYMTEK Automated Ratio
Calibration (ARC
™
) Technology for two-component
applications and Mass Flow Calibration (MFC) that ensures
consistently accurate mix ratios by volume or weight.
True positive displacement of a xed volume with each
rotation regardless of ambient temperature conditions or
uid pressure variations.
Two-component material dispensing in various mix
ratios — increasing UPH up to 250% over one-component
applications.
Continuous needle dispensing of one- and two-
component uids with the capability to deliver a
dispense accuracy of <± 1% per revolution — for reduced
cycle time and increased reliability and productivity.
Supports a wide range of volume deposits from
microelectronics to medium and large volume dispensing
applications.
Supports a wide range of viscosities from 1 – 500,000 cps.
Optimized uid break-o — with suckback through
reverse rotation of the rotor.
2 | ASYMTEK Vortik® Progressive Cavity Pump Solutions
Everything is
controlled through
one system —
eliminating the
need for an external
control box.
Dedicated ASYMTEK Fluidmove®
soware with patent pending
ARC
™
Technology for two-
component applications.
A family of Vortik
progressive cavity
pumps (PCP) for one-
and two-component
volumetric dispensing.
2
3
1
All-in-One
Volumetric Dispensing Solutions
ASYMTEK Vortik® Progressive Cavity Pump Solutions | 3
