Flow Rates
Vortik
progressive cavity pumps (PCP) come in three sizes for small volume (VPs), medium volume (VPm) and large
volume (VPg) dispensing of one- and two-component materials. Each size features two models with diering rotor
sizes that dispense a specic volume per revolution. At 0.28 microliters per second, the Vortik VPs oers the lowest
ow rate and smallest depositions available in the market today.

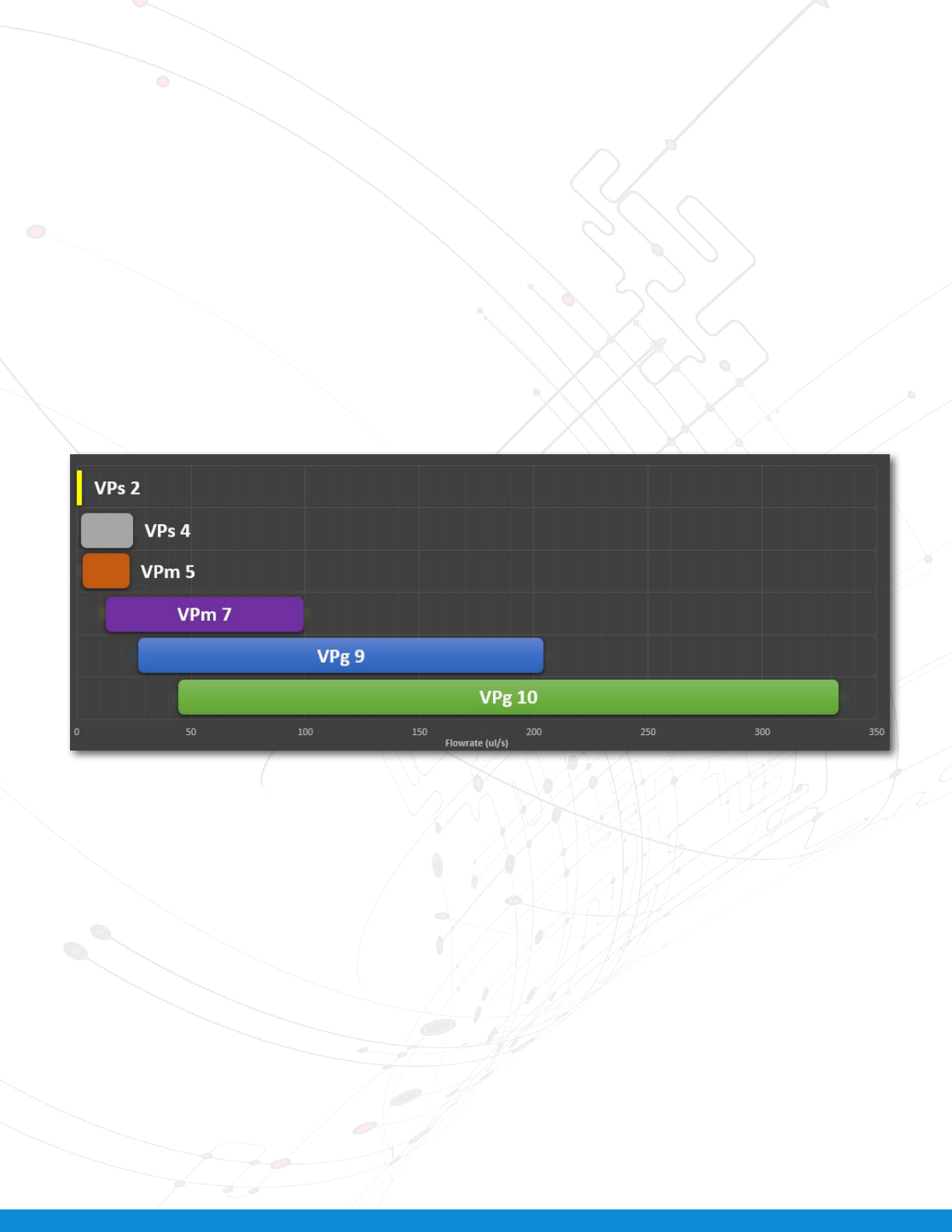

The following table shows each of the one-component VPs, VPm and VPg sizes with corresponding ow rates in
microliters per second.
4 | ASYMTEK Vortik® Progressive Cavity Pump Solutions
Advanced Two-Component Calibration Assist
with Award-Winning ARC Technology
Convenient Fluid Management
All two-component Vortik pumps are equipped
with a patent-pending ASYMTEK Quick
Disconnect Manifold that prevents contact
between part A and part B materials for easy
transition between calibration, production, and
overnight modes.
The plug blocks uid ow when the application
is not running.
ARC
Technology in Fluidmove
At Nordson, we focus on next-level technologies and innovation to provide you with complete solutions.
Two-component materials are becoming more desirable because they oer a lower cost of ownership and greater
process exibility. However, setting up an application to accurately dispense the correct ratio of part A and part
B materials can be complicated. Controlling metering and mix ratios is critical to any two-component dispensing
application. To fully address this challenge, we’ve added two advanced calibration assist features to streamline the
two-component dispensing process – another Nordson rst.
1 — Quick Disconnect Manifold
2 — Plug
Setup in 5 Easy Steps
Take the guesswork out of application setup
with the patent-pending ASYMTEK Automated
Ratio Calibration Technology (ARC
™
Technology) and Mass Flow Calibration (MFC).
ARC Technology, a Global SMT & Packaging
2020 Global Technology Award winner, ensures
consistently accurate mix ratios by volume or
weight. With ARC Technology, you can quickly
determine the optimal speed for the targeted
mix ratio and dispense volume without manual
calculations or time-consuming test iterations.
Enter basic information, including the mix
ratio method (mass or volume), mix ratio,
uid density, and desired material ow rate, to
complete your application setup in minutes.
Log les provide excellent traceability allowing
you to monitor dispensing process data.
ASYMTEK Vortik® Progressive Cavity Pump Solutions | 5
Vortik VPs
Small-Volume Dispensing
Combine the Vortik VPs progressive cavity pump
with the ASYMTEK Spectrum
®
II S2-900 uid
dispensing system to support mobile electronics
and MEMS dispensing applications that require
high-precision and small volumes.
Mobile Device and
MEMs
Applications
Micro potting
Conductive epoxy
Solder paste with high volumetric accuracy
Adhesives
