KY8030-2XDL(2P) Part List (20120430) - 第139页
1. 1. PO WER UNIT BL OCK DIA GRAM 5
4
No. : Table Index Number
Item Code No : Manufacturing products code
Specification : Part or Assembly Specification
Description : Part or Assembly Description
Type : 1. Electric Type – Electric Part
2. Cable Type – E043-XXXXXXX: Electric Cable Part
3. Vision Type – Vision Part
Q’TY : Quantity required
(X) – Option Quantity required
Remark : Remark and Part mark for the Assembly
No. Item Code No. Specification Description Type Q’TY Remark
1 552111-000001 30A-3P MAIN POWER T/B Electric 1
2 E043-0231100 Dual I/O Extend Cable Cable 1(1)
Example)
USING THIS PART LIST

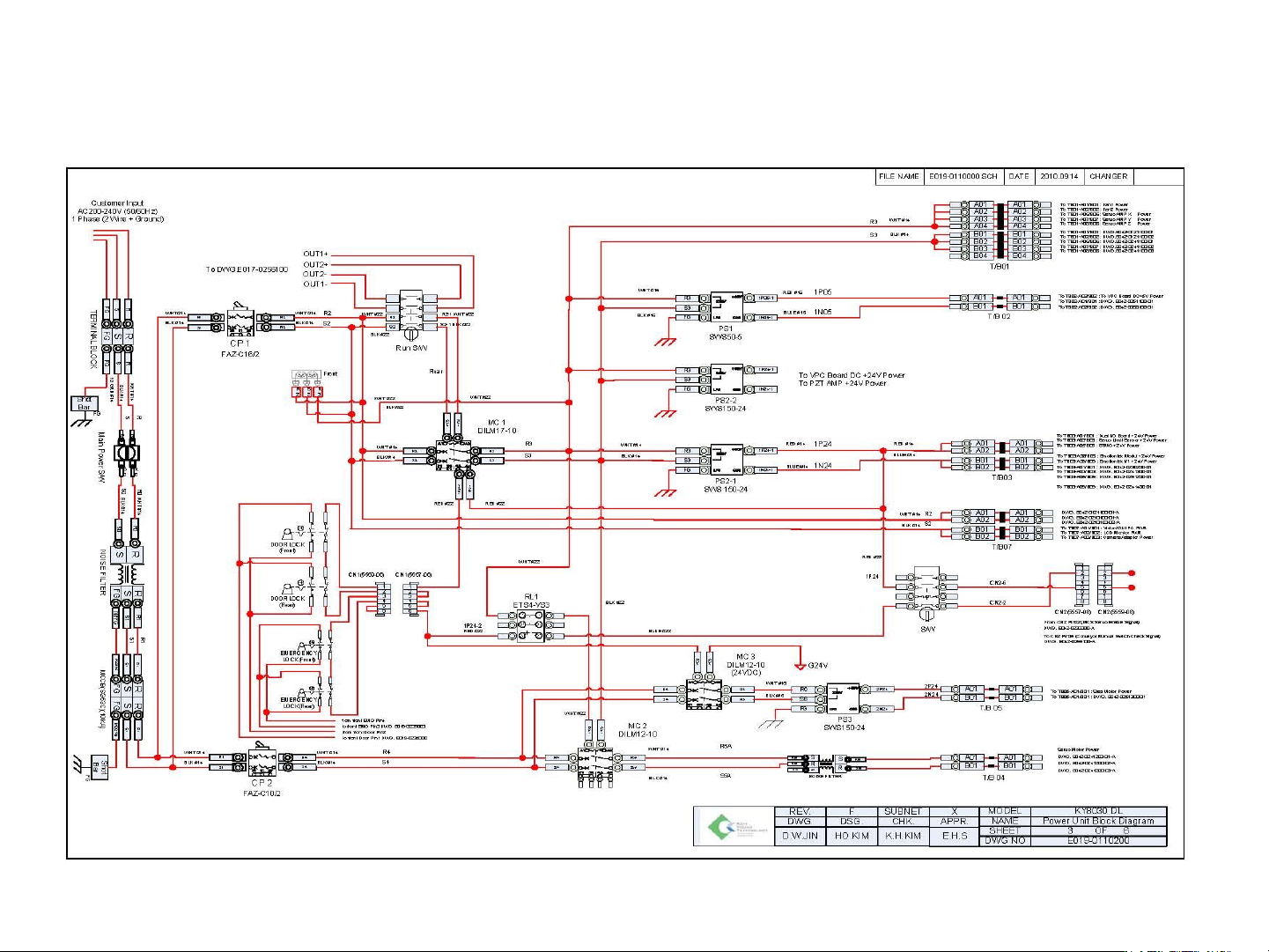

1. 1. POWER UNIT BLOCK DIAGRAM
5
No.
Item Code No.
Specification
Description
Type
Q’TY
Remark
1
552111-000001
30A-3P
Terminal Block(Main Power)
Electric
1
TERMINAL BLOCK
2
551615-000001
TO-2-1/EA/SVB
Main Switch
Electric
1
MAIN POWER S/W
3
551711-000001
MBS-1220-22
Noise Filter
Electric
2
NF1, NF2
4
551918-000005
SG53C
MCCB
Electric
1
MCCB
5
552012-000005
FAZ-C10/2
CP
Electric
1
CP2
6
552012-000006
FAZ-C16/2
CP
Electric
1
CP1
7
551612-000004
M22-WRS/KW40(1a*6EA)
KEY SWITCH
Electric
1
RUN S/W
8
551919-000002
DILM12-10(24DC)
MC
Electric
1
MC3
9
551919-000004
DILM12-10
MC
Electric
1
MC2
10
551919-000005
DILM17-10
MC
Electric
1
MC1
11
551913-000003
ETS4-VS3
Power Relay
Electric
1
RL1
12
552612-000005
SWS50-05V
SMPS
Electric
1
PS1
13
552612-000006
SWS150-24V
SMPS
Electric
3
PS2-1, PS2-2, PS3
14
552112-000001
249-116 (End Stop)
Terminal Block
Electric
2
Terminal ASS’Y
15
552112-000003
280-402 (2P Jumper)
Terminal Block
Electric
12
Terminal ASS’Y
16
552112-000004
280-833 (2:2 Grey)
Terminal Block
Electric
10
T/B01, T/B04
17
552112-000005
280-834 (2:2 Blue)
Terminal Block
Electric
4
T/B02, T/B05, T/B10
18
552112-000006
280-835 (2:2 Orange)
Terminal Block
Electric
10
T/B03, T/B07
19
552112-000007
280-837 (2:2 Ground)
Terminal Block
Electric
4
T/B FG
