FILE NAME E019-0210000.SCH DATE 2010.09.14 CHANGER A DSG. HO.KIM REV. DWG. Y.M.LEE SUBNET CHK. K.H.KIM X APPR. E.H.S MODEL NAME SHEET DWG NO KY8030 DL MAIN PC Power Cable 2 OF 7 E019-0210100 1 LABE L TUB E LENG TH ( incl…
FILE NAME E019-0210000.SCH DATE 2010.09.14 CHANGER
LCD(Front)
KEY BOARD
(Front)
MOUSE(Front)
MAIN CONTROL PC
MONITER
USB
KEY BOARD
POWER
COM2
I-LUG
COM1
LAN1
E019-0210100-01
To T/B07-A/B02
USB CABLE
PS/2 CABLE
Extension
Serial
COM4
COM5
* Extension Serial
COM4 : Barcode 1(LN1 TOP) or NG-BUFFER
COM5 : Barcode 2(LN1 BOTTOM) or NG-BUFFER
COM6 : Barcode 3(LN2 TOP)
COM7 : Barcode 4(LN2 BOTTOM)
COM6
COM7
A
DSG.
HO.KIM
REV.
DWG.
Y.M.LEE
SUBNET
CHK.
K.H.KIM
X
APPR.
E.H.S
MODEL
NAME
SHEET
DWG NO
KY8030 DL

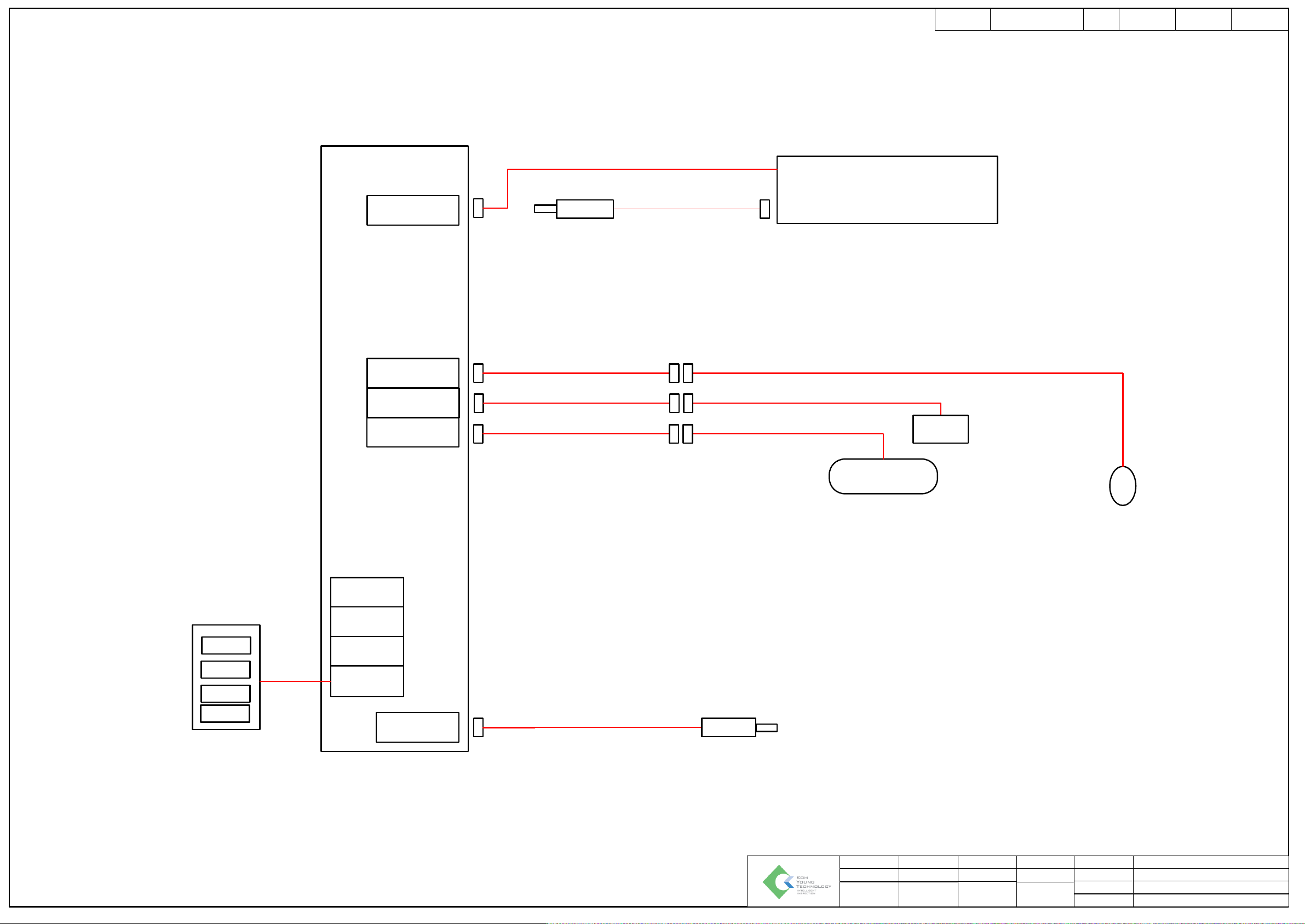

MAIN PC Block Diagram
1 OF 7
E019-0210000
I-LUG
E019-0210100-02
To T/B07-A/B03
USB
USB
(Front)
USB CABLE
FILE NAME E019-0210000.SCH DATE 2010.09.14 CHANGER
A
DSG.
HO.KIM
REV.
DWG.
Y.M.LEE
SUBNET
CHK.
K.H.KIM
X
APPR.
E.H.S
MODEL
NAME
SHEET
DWG NO
KY8030 DL
MAIN PC Power Cable
2 OF 7
E019-0210100
1
LABELTUBE
LENGTH(include connector)
80
HARNESS EXAMPLE
S
R
Y TERMINAL
BROWN
BLUE
LABEL
ASS
'Y : A
TUBE
I-LUG
I-LUG
I-LUG
BROWN
F.G
BLUE
120mm
BR
BL
ASS’Y “A” HARNESS PIN MAPPING
1
ASS’Y : ”A”
ASS’Y
RIGHTLEFT
LABEL
RIGHTLEFT
CONNECTOR
CABLE
LENGTH
(mm)
TYPE
Q’TY
(EA)
SERIAL
NUMBER
A
VS/GUI-PC PWR
T/B07-A02
PC POWER
CONN.
I-LUG
UL,2969,#18*2C 2600 1 01
T/B07-B02 I-LUG
FG I-LUG
1
A
MONITOR PWR
T/B07-A03
PC POWER
CONN.
I-LUG
UL,2969,#18*2C 2800 1 02T/B07-B03 I-LUG
FG I-LUG
1
FILE NAME E019-0210000.SCH DATE 2010.09.14 CHANGER
B
SIGN.
REV.
DWG.
D.W.JIN
SUBNET
APPR.
HO.KIM
X
SIGN.
MODEL
NAME
SHEET
DWG NO
KY8030 DL
Key Board & USB Extend Cable
3 OF 6
E019-0210200
ASS’Y
RIGHTLEFT
LABEL
RIGHTLEFT
CONNECTOR
CABLE
LENGTH
(mm)
TYPE
Q’TY
(EA)
SERIAL
NUMBER
ASS’Y : “A”
1
ASS’Y “A” HARNESS PIN MAPPING
A MOUSEMOUSE
Type “A” (Female)
Type “A” (Male)
The purchasing product 4000 2 02
1
ASS’Y : “B”
1
ASS’Y “B” HARNESS PIN MAPPING
A USBUSB
Type “A” Mount
(Female)
Type “A” (Male)
The purchasing product 4000 2 01
1
B KEY BOARDKEY BOARD PS/2 (Female)PS/2 (Male) The purchasing product 4000 1 03
1
Color
Red
White
Green
Black
Drain Wire
Sig.Name
VBUS
D-
D+
GND
Shield
NO
1
2
3
4
Shell
Color
Red
White
Green
Black
Drain Wire
Sig.Name
VBUS
D-
D+
GND
SHIELD
NO
1
2
3
4
Shell
ColorSig.Name
DATA
N·C
GND
VCC
CLOCK
N·C
Shield
NO
1
2
3
4
5
6
Shell
Color Sig.Name
DATA
N·C
GND
VCC
CLOCK
N·C
SHIELD
NO
1
2
3
4
5
6
Shell
*PURCHASE ITEM
*PART NUMBER : 504090-000001 *MODEL NUMBER : PS/2 & USB CABLE
