FI LE NAM E E0 19- 02600 00 DATE 20 10. 09. 14 CH A N G E R A DSG. D. B. Moon REV. DWG. D. B. Moon SUBNET CHK. D. B. Moon X APPR. H. Kim MODEL NAME SHEET DWG NO KY8030 DL Camera Adaptor OUT Power Cable 5 OF 24 E019-026 0…
FILE NAME E019-0260000 DATE 2010.09.14 CHANGER
A CMR-APT-PWR
T/B07-A04
PC Power CONN.
I-LUG(M4)
LG,2969,#18*2C 1200 1 01
T/B07-B04 I-LUG(M4)
A
DSG.
D. B. Moon
REV.
DWG.
D. B. Moon
SUBNET
CHK.
D. B. Moon
X
APPR.
H. Kim
MODEL
NAME
SHEET
DWG NO
KY8030 DL
Camera Adaptor IN Power Cable
4 OF 24
E019-0260310
ASS Y
RIGHTLEFT
LABEL
RIGHTLEFT
CONNECTOR
CABLE
LENGTH
(mm)
TYPE
QTY
(EA)
SERIAL
NUMBER
1
FILE NAME E016-0260000.SCH DATE 2005.11.25 CHANGER K.H.KIM
ASSY : A
ASS Y A HARNESS PIN MAPPING
I-LUG
I-LUG
RED
BLU
120mm
BR
BL
220V Power
CONN.
1

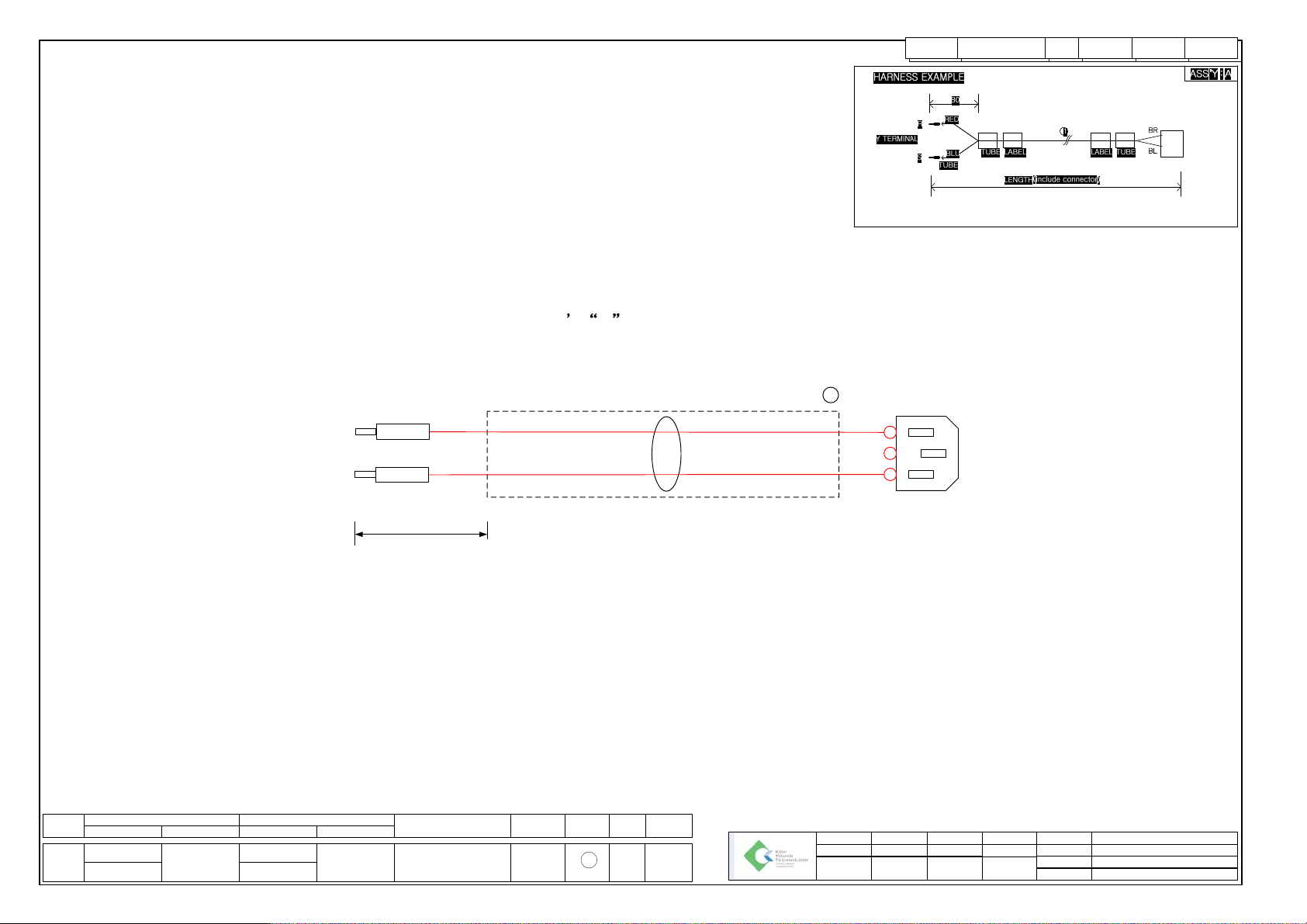

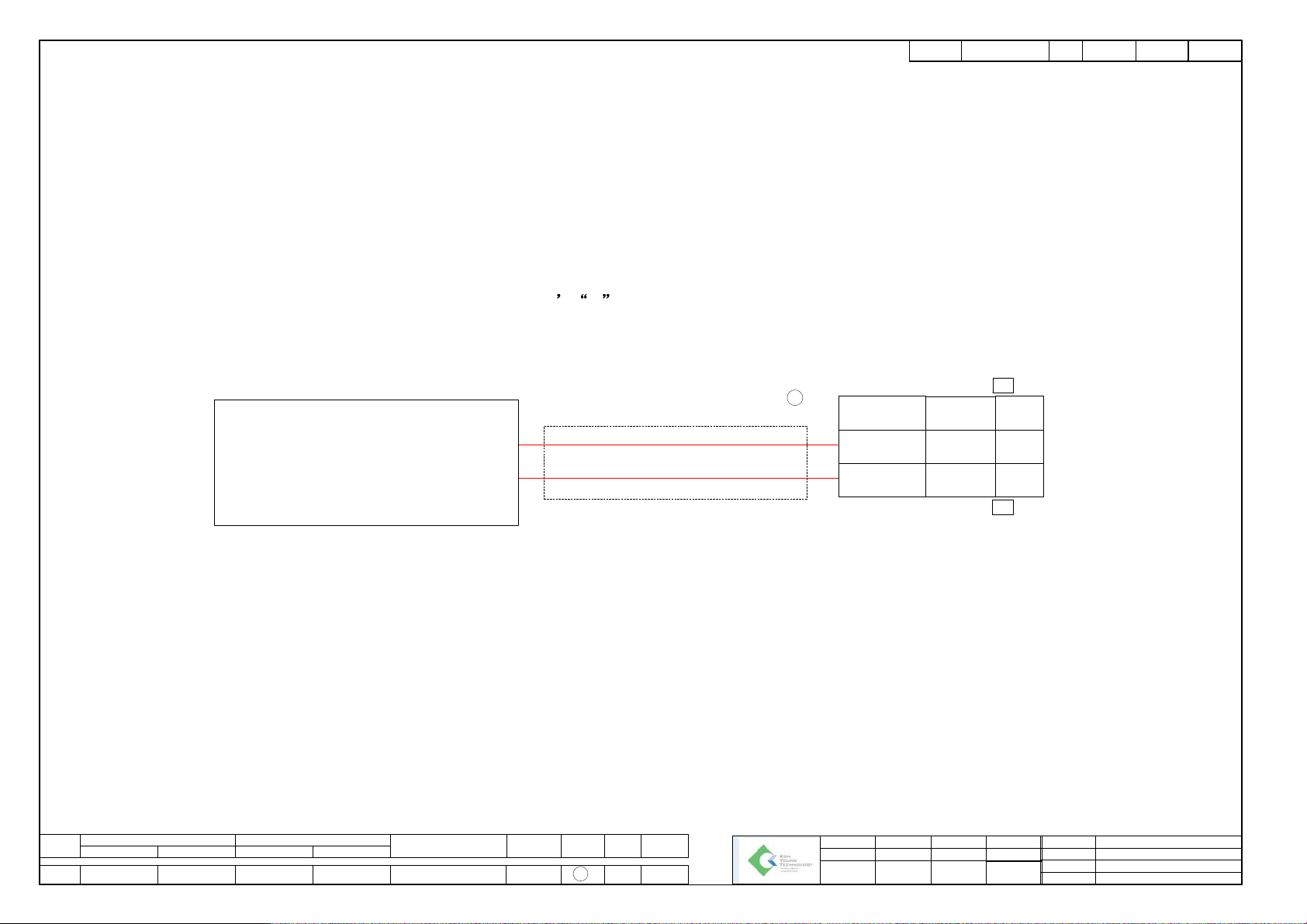

FILE NAME E019-0260000 DATE 2010.09.14 CHANGER
A
DSG.
D. B. Moon
REV.
DWG.
D. B. Moon
SUBNET
CHK.
D. B. Moon
X
APPR.
H. Kim
MODEL
NAME
SHEET
DWG NO
KY8030 DL
Camera Adaptor OUT Power Cable
5 OF 24
E019-0260400
ASS Y
RIGHTLEFT
LABEL
RIGHTLEFT
CONNECTOR
CABLE
LENGTH
(mm)
TYPE
QTY
(EA)
SERIAL
NUMBER
A CMR-PWR (Molex)5559-02 #22,2C 500 1 01
1
FILE NAME E016-0260000.SCH DATE 2005.11.25 CHANGER K.H.KIM
ASSY : A
ASS Y A HARNESS PIN MAPPING
1
No.
1
2
Color
White
Brown
Sig.Name
+12V
G12V
(Molex)5559-02
Camera Adaptor +12V
FILE NAME E019-0260000 DATE 2010.09.14 CHANGER
A
DSG.
D. B. Moon
REV.
DWG.
D. B. Moon
SUBNET
CHK.
D. B. Moon
X
APPR.
H. Kim
MODEL
NAME
SHEET
DWG NO
KY8030 DL

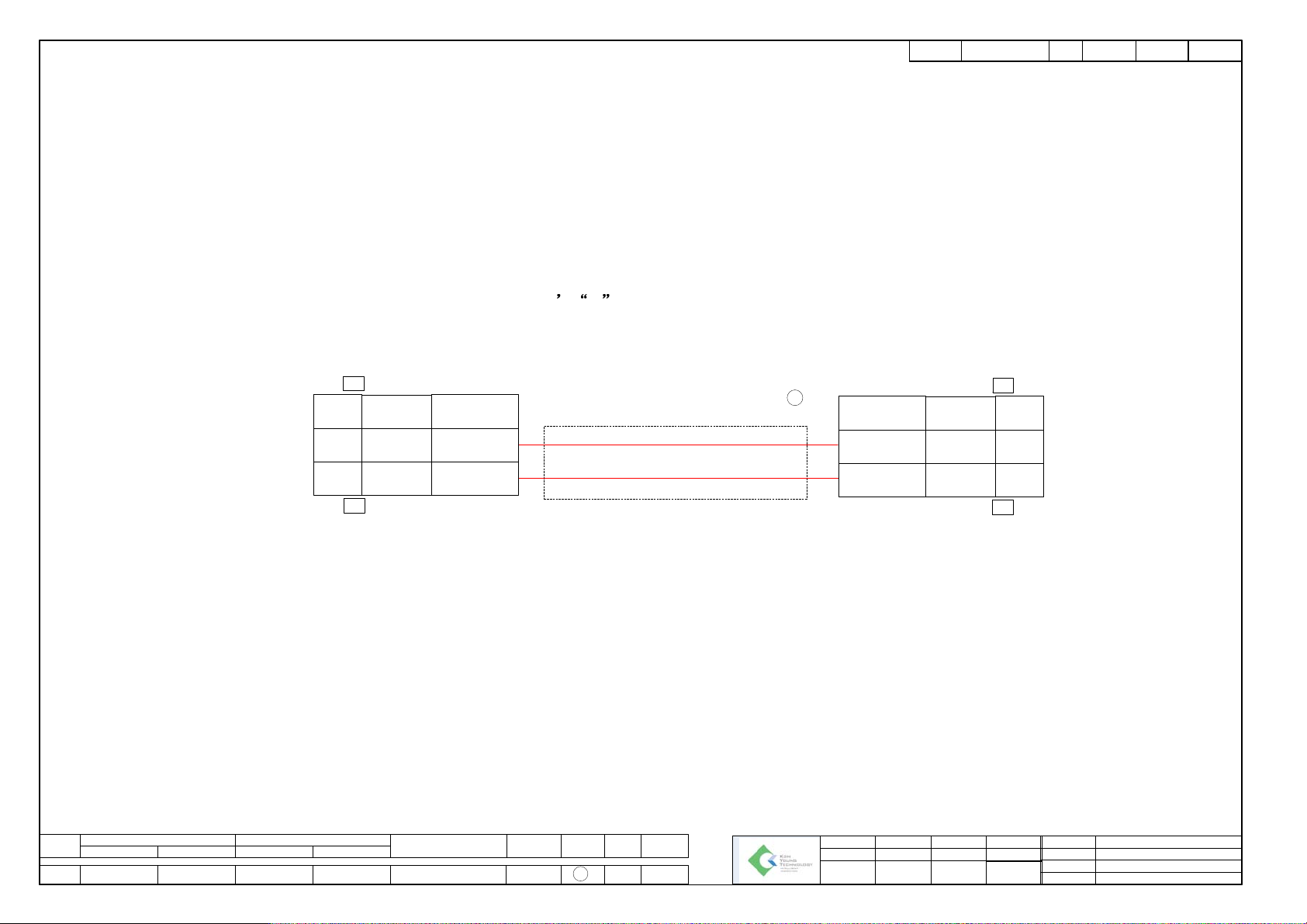

Camera Power Cable
6 OF 24
E019-0260500
ASS Y
RIGHTLEFT
LABEL
RIGHTLEFT
CONNECTOR
CABLE
LENGTH
(mm)
TYPE
QTY
(EA)
SERIAL
NUMBER
A CMR-PWRCMR-PWR (Molex)5559-02(Molex)5557-02 #22,2C 2100 1 01
1
FILE NAME E016-0260000.SCH DATE 2005.11.25 CHANGER K.H.KIM
No.
1
2
(Molex)5557-02
Color
White
Brown
Sig.Name
+12V
G12V
ASSY : A
ASS Y A HARNESS PIN MAPPING
1
No.
1
2
Color
White
Brown
Sig.Name
+12V
G12V
(Molex)5559-02
