No. Item Code No. Specification Description Type Q’TY Remark 1 555013 - 000012 SERVO MOTOR (Z AXIS) P art 1 2 P021- 910 - 002 -A MOTOR BKT Part 1 3 602611 - 000006 SDWA- 26C -6-8 COUPLING Part 1 4 609039 - 000010 EK8 - T…
2.3 Z AXIS MOTOR
32
1
5
3
4
2
6
7
No. Item Code No. Specification Description Type Q’TY Remark
1 555013-000012 SERVO MOTOR (Z AXIS) Part 1
2 P021-910-002-A MOTOR BKT Part 1
3 602611-000006 SDWA-26C-6-8 COUPLING Part 1
4 609039-000010 EK8-T2 SUPPORT UNIT Part 1
5 601611-000028 SR1002+93LC7 BALL SCREW (Z AXIS) Part 1
6 P021-910-001-A SUPPORT Part 1
7 P021-900-003-A SENSOR DOG Part 1
2.3 Z AXIS MOTOR
33

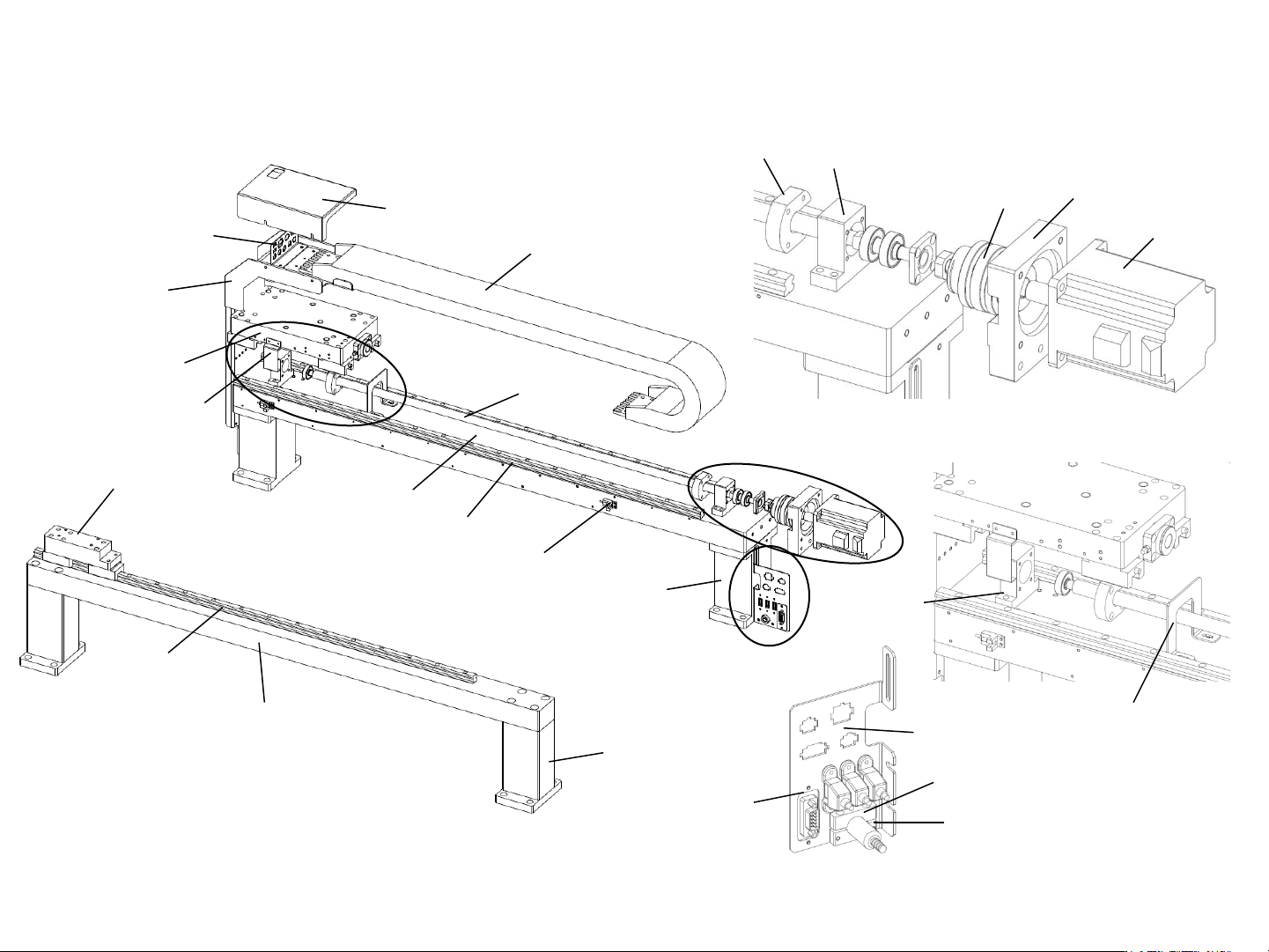

3 Y GANTRY UNIT
34
1
2
3
4
5
6
7
8
9
10
11
15
13
14
C
A
B
12
B
21
22
C
23
25
26
24
A
16
17
18
19
20
