KY8030-2XDL(2P) Part List (20120430) - 第67页
4.2.2 WOR K RING BELT ASS’Y 1 2 3 4 67
No. Item Code No. Specification Description Type Q’TY Remark
1 A010-D51007-A RING BELT RAIL Part 1
2 A010-D51016-A INLET CYLINDER BLOCK Part 1
3 609037-000007 URETHANE STOPPER STOPPER Part 2
4 A010-D51017-A INLET CYLINDER JOINT Part 1
5 A010-D51018-A INLET CYLINDER HOUSING Part 1
6 706012-000003 M-5AU-4 FITTING Part 2
7 701011-000014 CQ2A-16-10D CYLINDER Part 1
8 A010-D52012-A SENSOR DOG 1 Part 1
4.2.1 UP/DOWN RAIL 2
66
4.2.2 WORK RING BELT ASS’Y
1
2
3
4
67
No. Item Code No. Specification Description Type Q’TY Remark
1 A010-510032-A BEARING HOUSING Part 1
2 602411-000008 6803ZZ BALL BEARING Part 2
3 A010-510030-A INSERT SINK ROLLER Part 1
4 A010-510031-B INSERT ROLLER Part 2

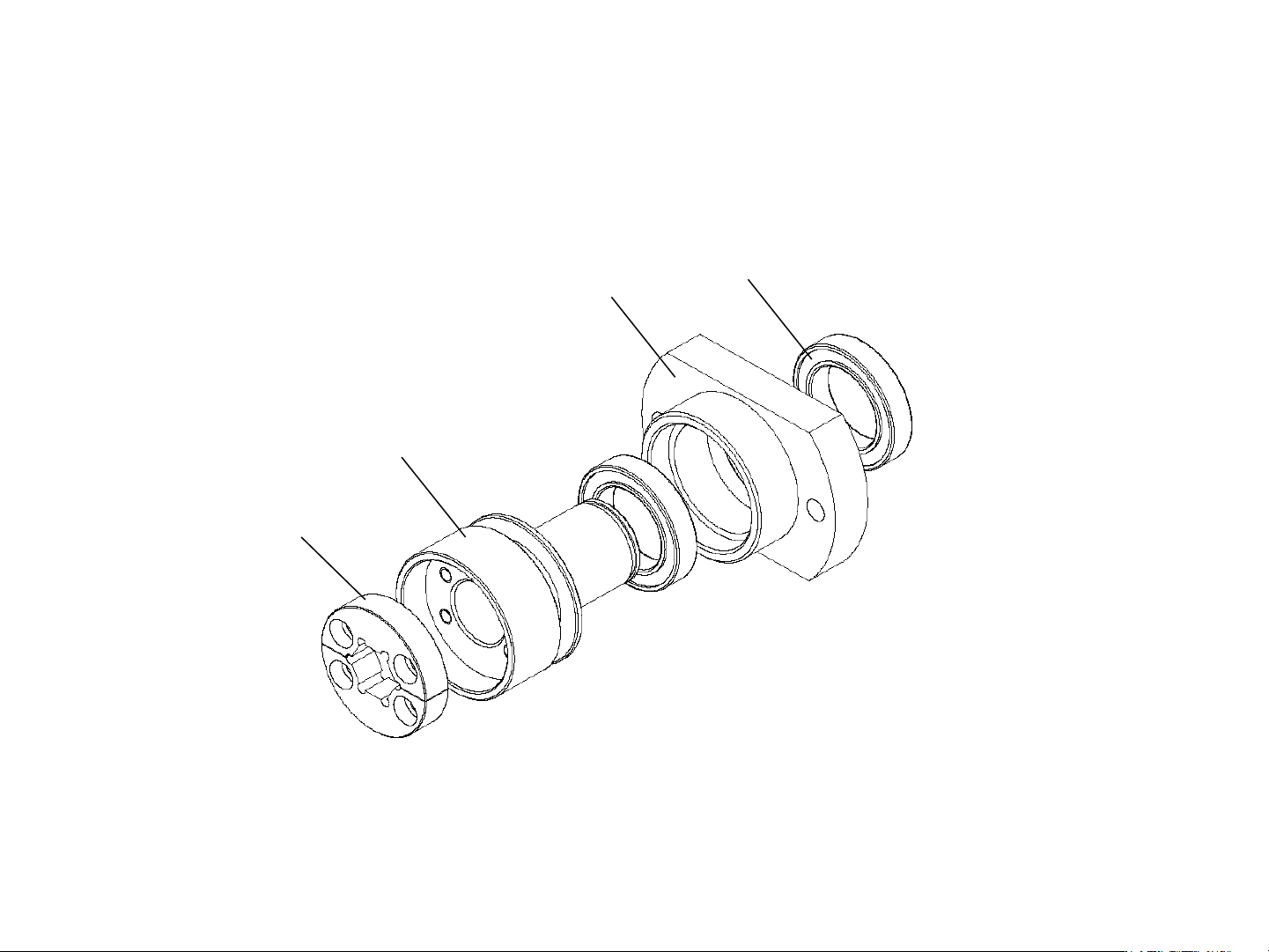

4.2.2 WORK RING BELT ASS’Y
68
