KY8030-2XDL(2P) Part List (20120430) - 第87页
4.5.1 MO T OR BKT (FRO NT) 1 2 3 4 5 6 87
4.5 MOTOR FIX BKT (FRONT)
No. Item Code No. Specification Description Type Q’TY Remark
1 V085-520008-A CABLE MOTOR COVER Part 1
2 V085-510000 MOTOR BKT Assembly 1 4.5.1
3 V085-510100 LEFT DISTRIBUTION MODULE Assembly 1 4.5.2
4 V085-510200 RIGHT DISTRIBUTION MODULE Assembly 1 4.5.3
86
4.5.1 MOTOR BKT (FRONT)
1
2
3
4
5
6
87

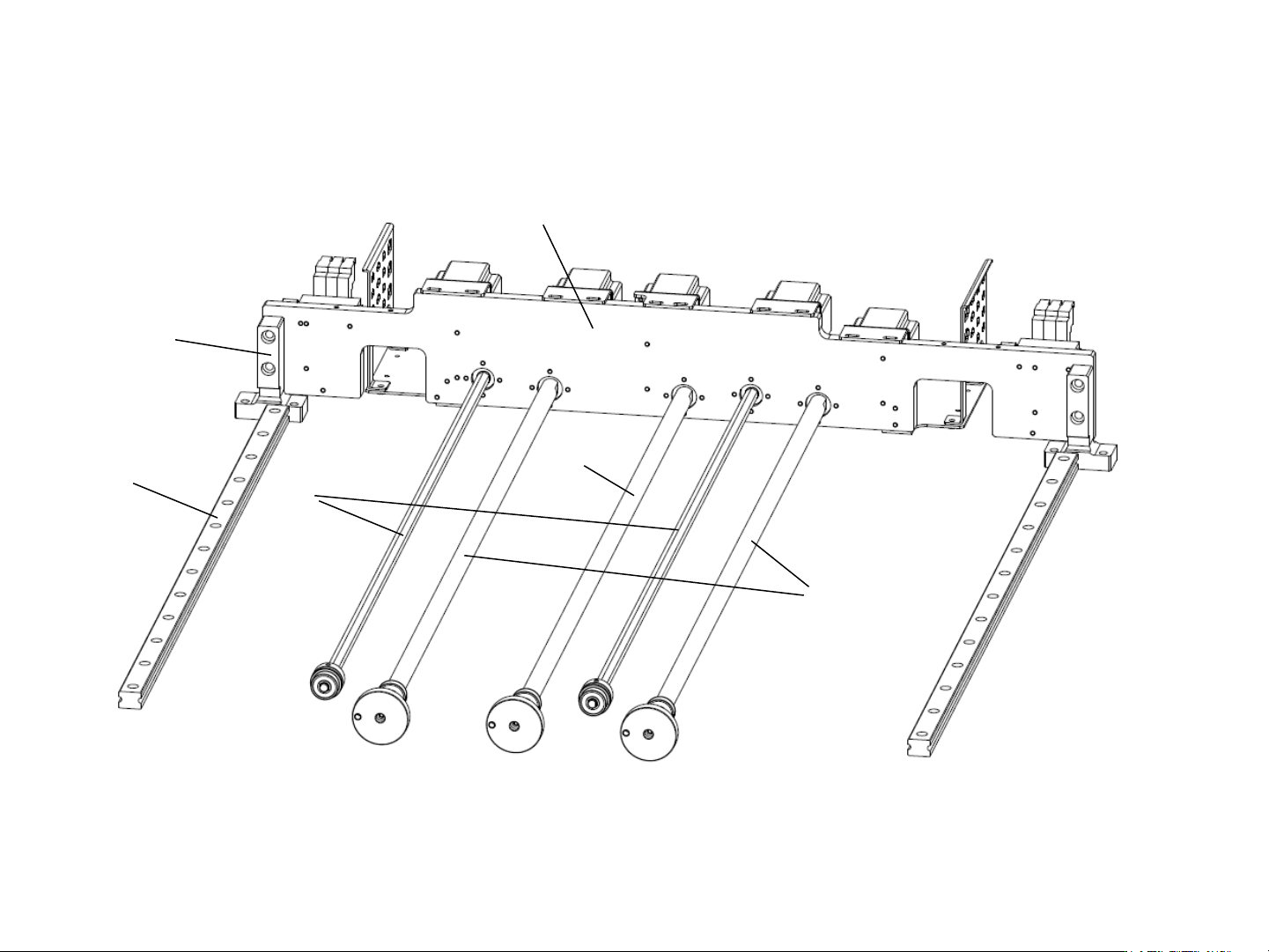

4.5.1 MOTOR BKT (FRONT)
No. Item Code No. Specification Description Type Q’TY Remark
1 A010-D51001-A CONVEYOR INTERFACE Part 2
2 V085-510001-A MOTOR FIX BLOCK Part 1
3 606011-000113 EGH20-SA-3R-750-ZA-C LM GUIDE Part 2
4 V085-510110 RING BELT WORK BAR UNIT Assembly 2 4.5.1.1
5 V085-510120 2-4 RAIL MOVER UNIT Assembly 2 4.5.1.2
6 V085-510130 3-RAIL MOVER UNIT Assembly 1 4.5.1.3
88
