Replacement instructions - Gantry c able and hose carrier SIPLACE HS / S / F 01/2007 Edition 106 2.1.4 New cable guide chain Wear p attern of the cable guide chain : 2 2 2 2 2 2 2 2 2 When the gant ry is moved, the cable…
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
105
2.1.3 Self-adhesive cable protective film for guide plate
A new adhesive film was introduced to minimize the friction between ribbon cable and guide plate.2
The new cable protective film is black and made from a PE material. This film feels very smooth.2
Before this film was introduced, a gray fabric tape was stuck to the guide plate. This tape felt
rough. 2

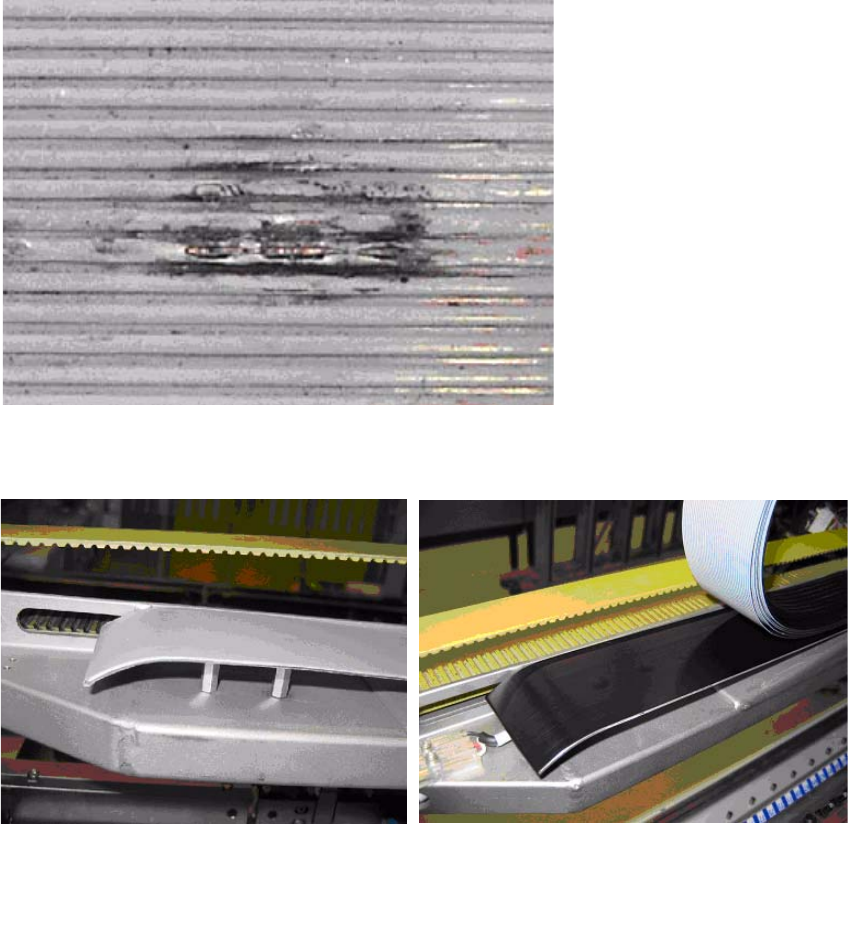

Cable wear pattern: 2
2
2
2
New PE film for S and F machines:
Self-adhesive cable protective film, 300 mm Item no.: 00375276-01
New: black, smooth PE film
Old: gray, rough fabric tape
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
106
2.1.4 New cable guide chain
Wear pattern of the cable guide chain: 2
2
2
2
2
2
2
2
2
When the gantry is
moved, the cable guide
chain should lie flush
against the cable and
hose carrier along its
entire travel. The picture
shows a worn cable guide
chain.
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
107
A new cable guide chain has been introduced. This offers greater stability, thus ensuring a longer
service life. 2
Decision-making criteria:
Old cable guide chain: the chain links are square, and the first and last link are made from
metal. 2
2
New cable guide chain: the chain links are rounded on one side, and the first and last link are
made from plastic. 2
2
Item numbers 2
2
S-20 / S-23 / S-25 HM / S-27 HM / CS Item no.: 00316753-xx
F4 / F4-6 / F5 Item no.: 00316756-xx
F5 HM / CF Item no.: 00346398-xx
Old cable guide
New cable guide
