Replacement instructions - Gantry c able and hose carrier SIPLACE HS / S / F 01/2007 Edition 118 View of both ends o f the cover strip: 2 2 2 2 2 2 Clamping plate 00375933-xx Screw 03007742-xx
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
117
2
2
2
View of the end links: 2
2
2
2
Power chain 80F 00316756Sxx
Cover strip for power chain F4 / F5 00316747-xx
The chain consists of 27 chain links. This includes the two end links that are used for fixing.
The length is 840 mm.
The length of the cover strip is 880 mm.
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
118

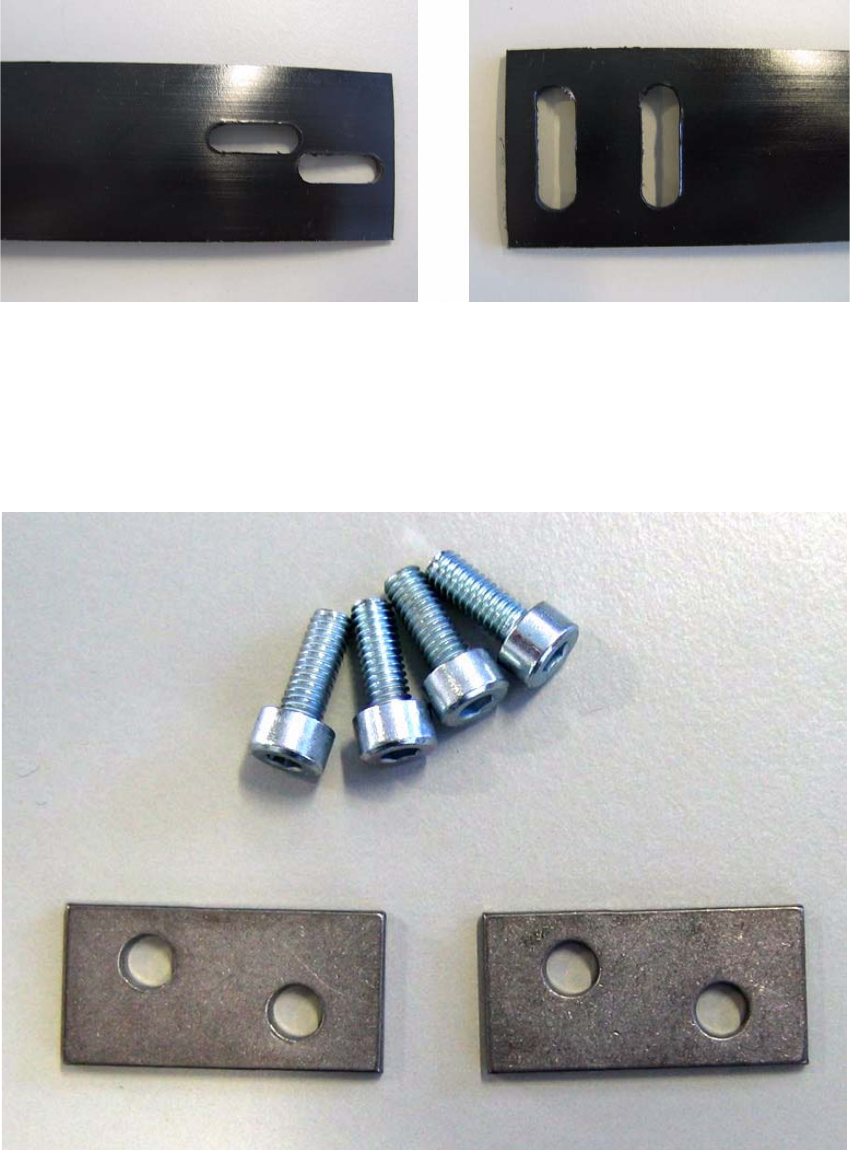

View of both ends of the cover strip: 2
2
2
2
2
2
Clamping plate 00375933-xx
Screw 03007742-xx
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
119
2.2.5.2 Retrofit kit: gantry cable with chain for F5 HM (item no.: 00378457-xx)
2
2
2
2
2

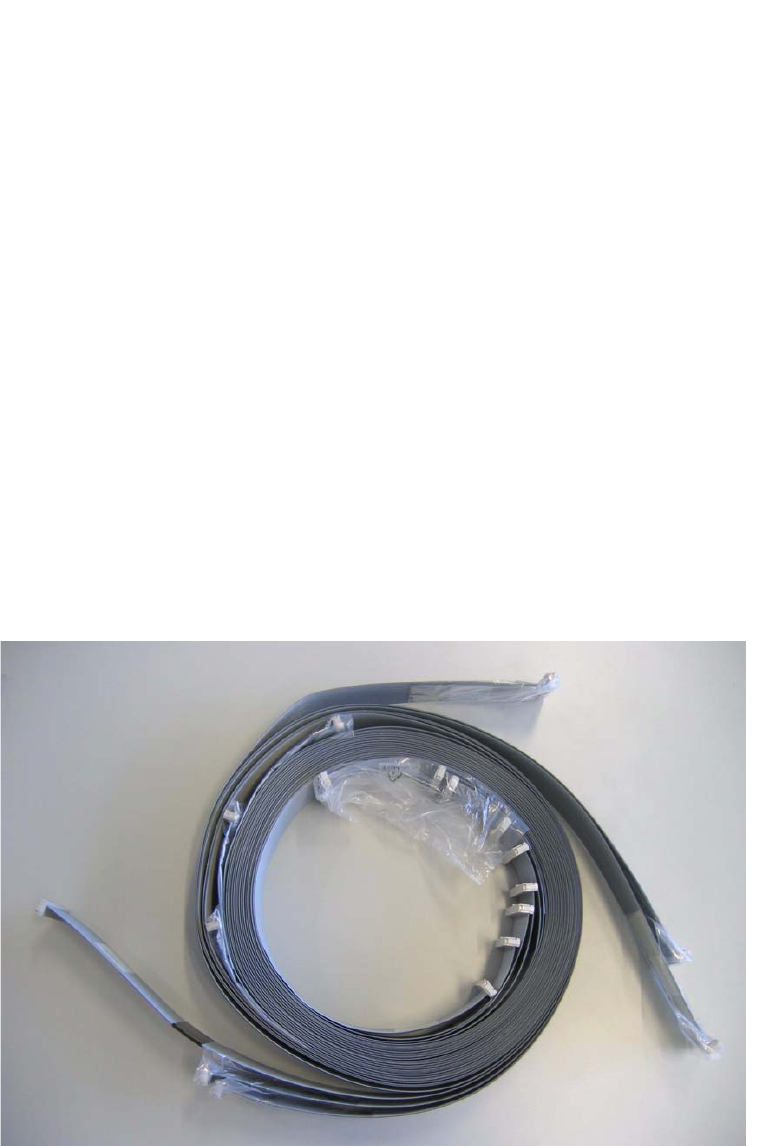

1x Ribbon cable set for the F5 HM gantry 00346192-xx
1x Strain relief for the F5HM Y cable and hose carrier 00377151-xx
1x Flexible tubing Expando 1.60 m each 00315977-xx
1x 600 mm cable protective film for S/F gantries 00375273-xx
1x Self-adhesive cable protective film, 300 mm 00375276-xx
1x X cable clamp 00325198-xx
1x Cable 00383297-xx
Power chain F5 HM, 00346398Sxx
consisting of:
1x Power chain F5 HM 00346398-xx
1x F5 HM cover tape 00346399-xx
2x Support plate, power chain F5HM 00351906-xx
2x Plain washer 00095471-xx
4x M3x12 screw 00312509-xx
Ribbon cable set for the F5 HM gantry 00346192-xx
