Replacement instructions - Gantry c able and hose carrier SIPLACE HS / S / F 01/2007 Edition 120 2 2 2 2 2 2 S train relief for Y c able and hose carrier 00377151-xx Flexible tubing Exp ando 1.60 m each 00315977-xx
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
119
2.2.5.2 Retrofit kit: gantry cable with chain for F5 HM (item no.: 00378457-xx)
2
2
2
2
2
1x Ribbon cable set for the F5 HM gantry 00346192-xx
1x Strain relief for the F5HM Y cable and hose carrier 00377151-xx
1x Flexible tubing Expando 1.60 m each 00315977-xx
1x 600 mm cable protective film for S/F gantries 00375273-xx
1x Self-adhesive cable protective film, 300 mm 00375276-xx
1x X cable clamp 00325198-xx
1x Cable 00383297-xx
Power chain F5 HM, 00346398Sxx
consisting of:
1x Power chain F5 HM 00346398-xx
1x F5 HM cover tape 00346399-xx
2x Support plate, power chain F5HM 00351906-xx
2x Plain washer 00095471-xx
4x M3x12 screw 00312509-xx
Ribbon cable set for the F5 HM gantry 00346192-xx
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
120
2
2
2
2
2
2
Strain relief for Y cable and hose carrier 00377151-xx
Flexible tubing Expando 1.60 m each 00315977-xx
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
121
2
2
2
2
2
2
2
2

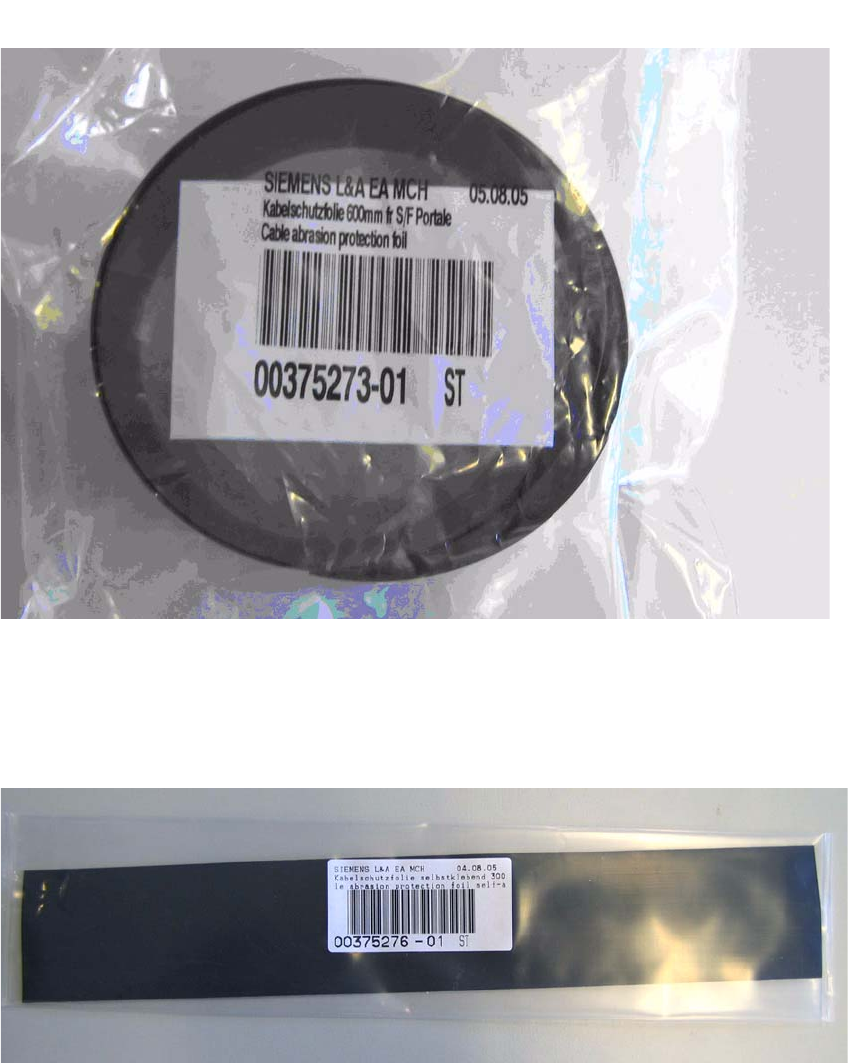

600 mm cable protective film for S/F gantries 00375273-xx
Self-adhesive cable protective film, 300 mm 00375276-xx
