Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
132
2.2.6 Tools and consumables required
– Set of hexagon socket spanners
– Tape measure
– Diagonal cutter
–Knife
– White, water-resistant pen
– Set of open-jawed wrenches
– Screwdriver
– Cable ties
2
Plus, for type S and F: 2
– Scissors
– Hammer handle or similar
– Universal pliers
– Threading aid for fabric hose (item no: 00331124-01).
2
2
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
133
2.2.7 SIPLACE HS cable and hose carrier

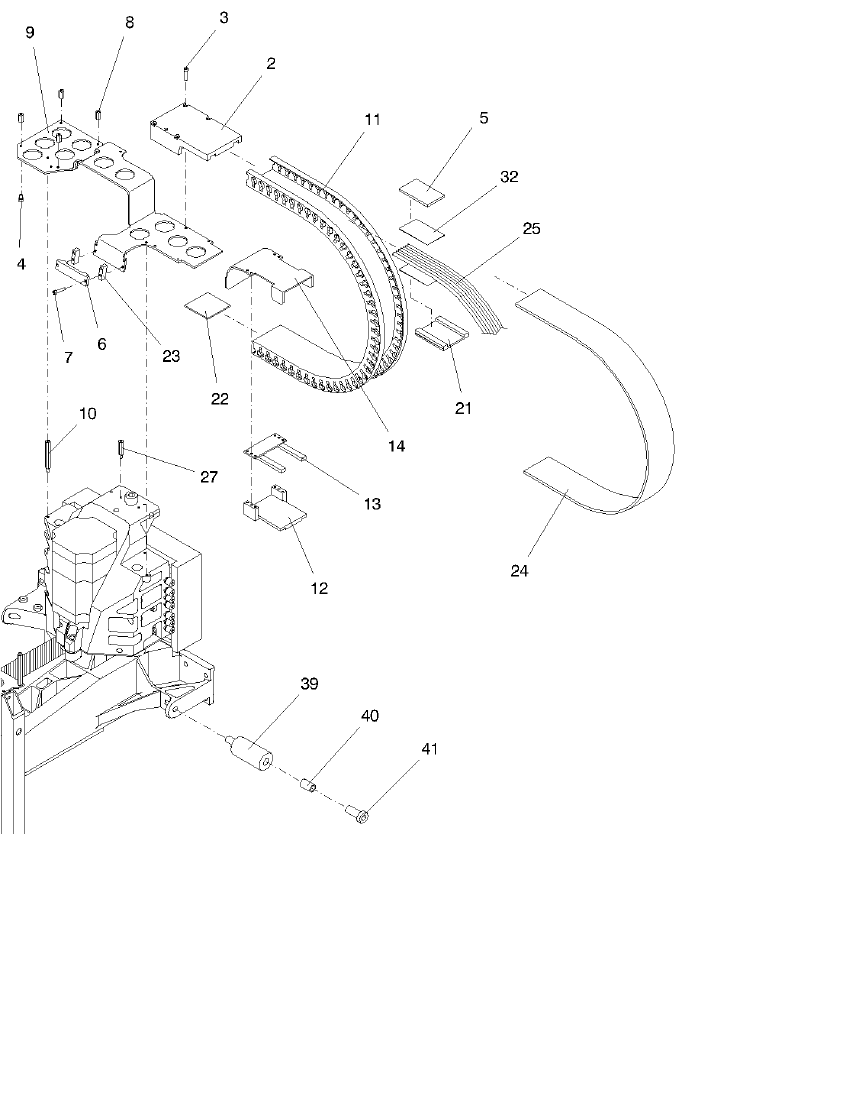

2.2.7.1 Design for the gantries 1 and 3
2
2
2 Cable clips 14 Y cable clamping
5 Partition plate 21 Guide for hose - Y
6 Cover for X cable and hose carrier for 7-way
hose
22 Separating layer
9 C4 board holder, left 23 Spacer
11 Cable guide 24 Cover strip
12 Y carrier mount 25 7-way hose, PK-3, black
13 Guide for hose - Y 32 Adhesive tape
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
134

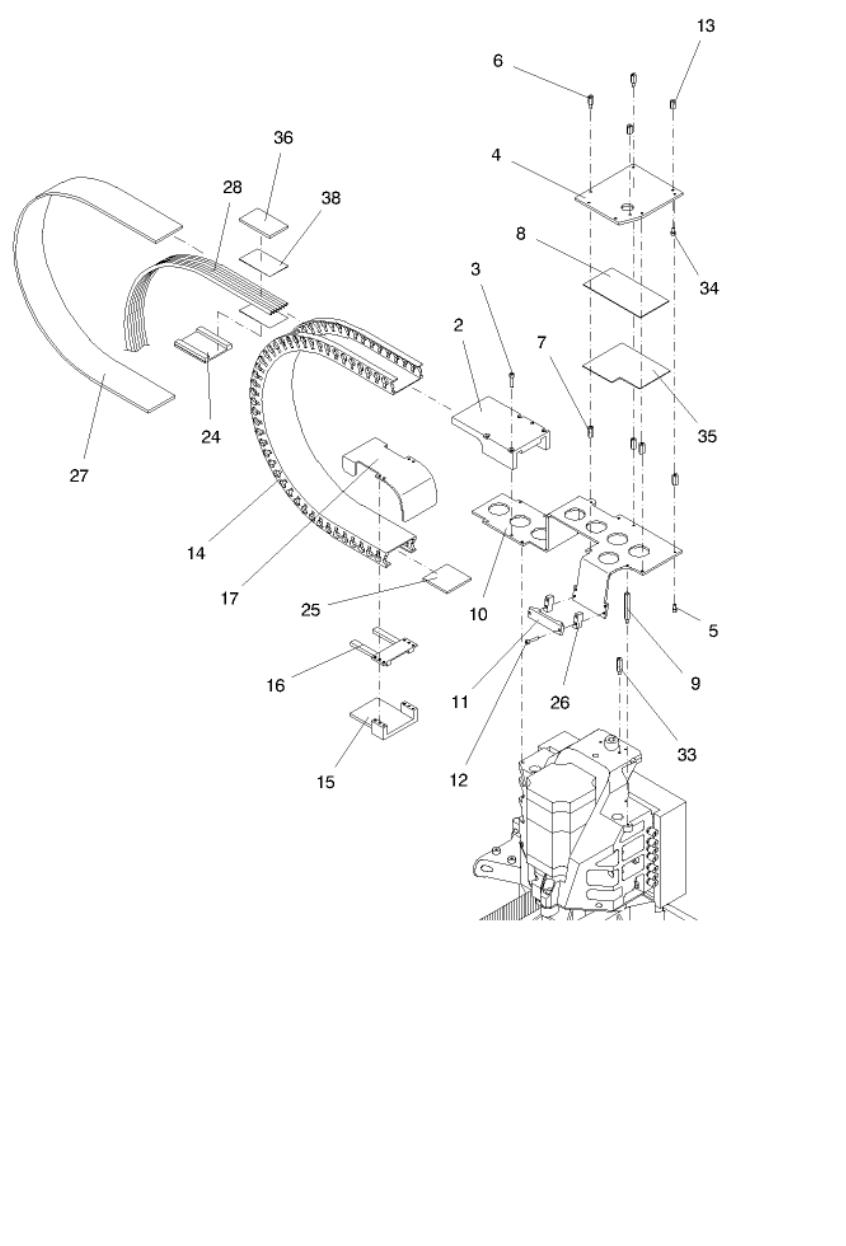

2.2.7.2 Structure of gantries 2 and 4
2
2
Cable clips 24 Hose guide - Y
4
Partition 25 Separating layer
8
Separating layer 1 26 Spacer
10
C4 board holder, right 27 Cover strip
11
Cover for X cable and hose carrier for 7-way
hose
28 7-way hose, PK-3, black
14
Cable guide 35 Separating layer 2
15
Y carrier mount 36 Partition plate
16
Guide for hose - Y 38 Adhesive tape
