Replacement instructions - Gantry c able and hose carrier SIPLACE HS / S / F 01/2007 Edition 148 2 Make sure that the cables follow a gentle ar c and are not kinked. 2 2 2 2 : Reattach any pigg y-back boards tha t you re…
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
147
: Fix the ribbon cable clamp to the placement head (2 screws).
2
2
: Plug in the ribbon cable connectors on the underside of the head board.
: Fit the head board and screw it in place.
Make sure that the ribbon cables run correctly beneath the board
(see also next page).
2
2
2 screws
4 screws
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
148
2
Make sure that the cables follow a gentle arc and are not kinked. 2
2
2
2

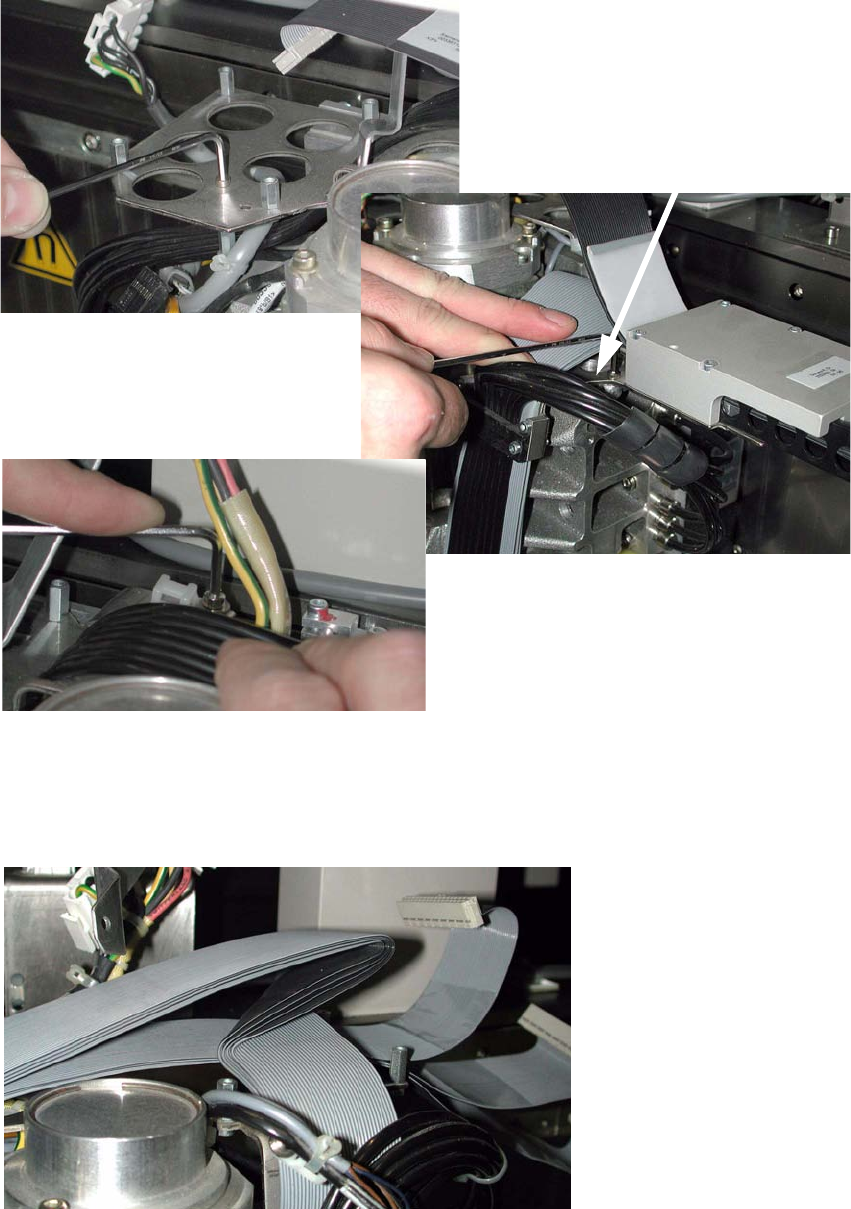

: Reattach any piggy-back boards that you removed to the head board and screw them in place
(1 screw).
2
2
: Plug in the remaining cables on the head board.
2
2
2
2
2
2
2
Run cables in an arc
Screw
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
149
: Fix the mount for the X/Y-axis distributor.
2
2
: Gantry 2 + 4 only:
Make sure that the ribbon cables run correctly beneath the partition plate.
2
Screw
