Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
152

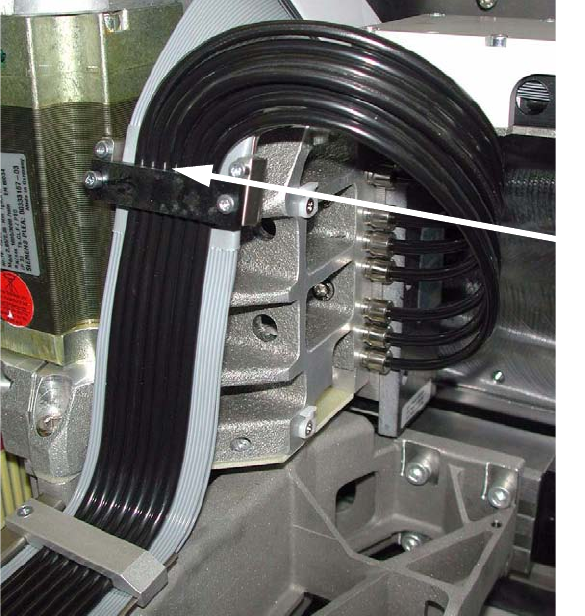

: Cut the hoses attached to the right of the X-axis motor to the correct length.
Measure from the Y-axis cable clamp (see photograph):
Gantry 1 and 3: 220 mm,
gantry 2 and 4: 250 mm.
2
2
: Separate the hoses up to approx. 1 cm before the clamp.
2
2
2
2
2
2
2
2
2
2
Measure from here
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
153

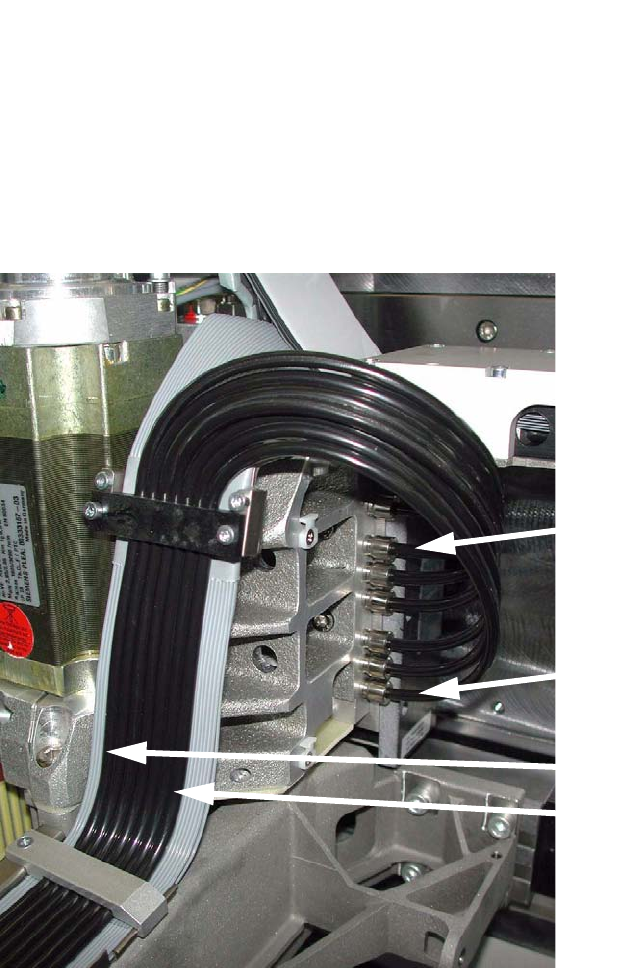

: Run the compressed air hose following the arc, and attach them to the connections on the gan-
try in the following arrangement:
2
When you attach the hose, there is a slight resistance that must be overcome before the hose is
seated correctly. 2
2
2
2
2
2
2
Compressed air hoses
No. 1 - 7 from right to left
Compressed air con-
nections
No. 1 - 7 from top to bottom
Hose 1, connection 1
Hose 1
Hose 7, connection 7
Hose 7
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
154

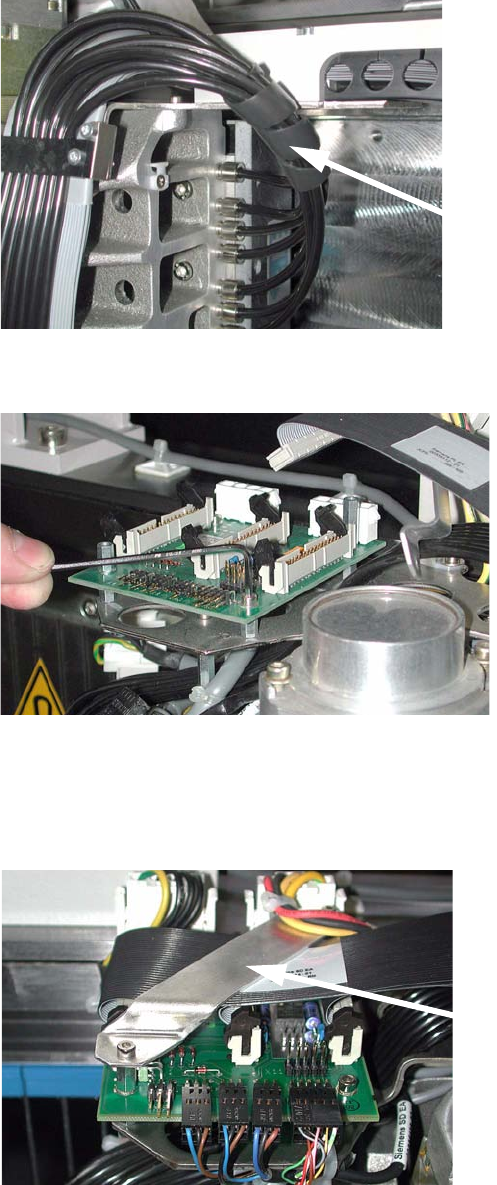

: At gantry 1 and 3, wind up the spiral hose to prevent the hoses rubbing against the gantry
frame. This is not necessary on gantry 2 and 4.
2
: Attach the X/Y-axis distributor board to the mount.
2
: Plug in all cables on the X/Y-axis distributor board.
: HS-50 only:
Screw on the protective plate over the X/Y-axis distributor.
2
Spiral hose
Protective plate
