Replacement instructions - Gantry c able and hose carrier SIPLACE HS / S / F 01/2007 Edition 163 : Loosen the screws in the left-han d upright an d remove it together with the swivel door . 2 : Loosen the screws on the S…
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
162
: Remove the design panels and tighten the screws on the arched cross-piece once more.
: Loosen the screws of the U-shaped profile to which the component table is attached, and re-
move the profile (see photograph on left).
Detach the grounding cable before removing the cover.
2
The cover is very heavy and should be placed carefully on the ground. 2
2
2
2
2
2
2
2
2
2
2
Remove the cover
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
163

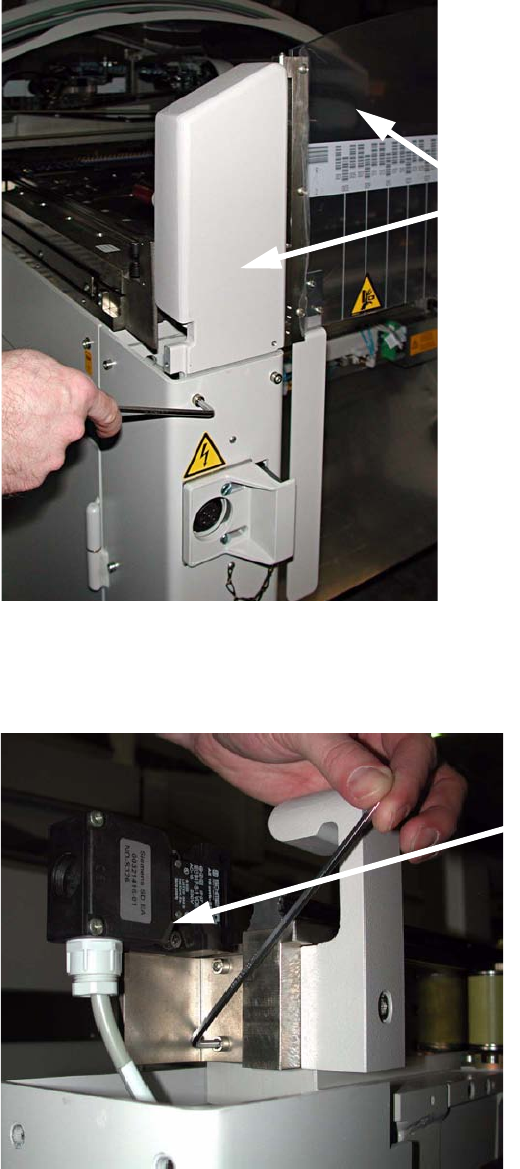

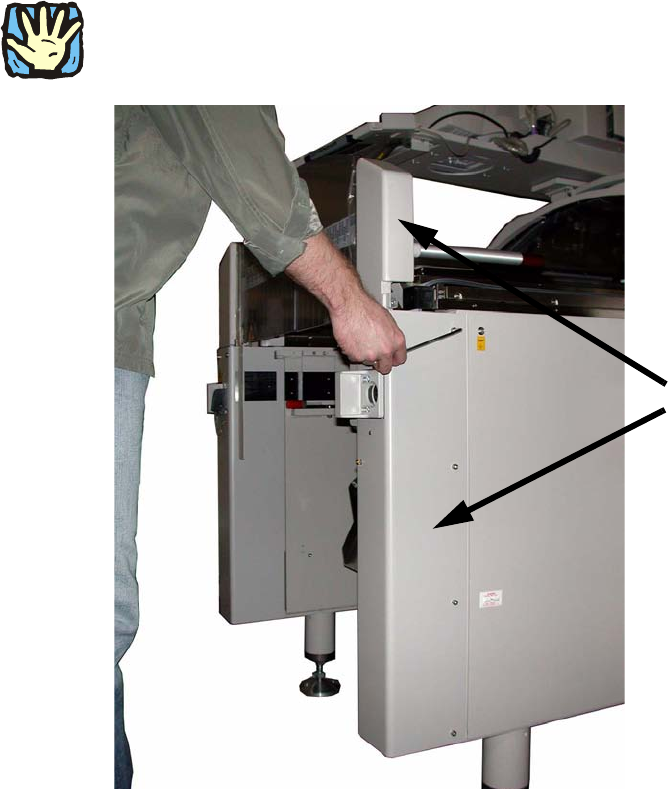

: Loosen the screws in the left-hand upright and remove it together with the swivel door.
2
: Loosen the screws on the Schmersal switches for the protective covers and carefully remove
the Schmersal switches.
2
2
Remove uprights with swivel door
Fixing plate for
Schmersal switch
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
164

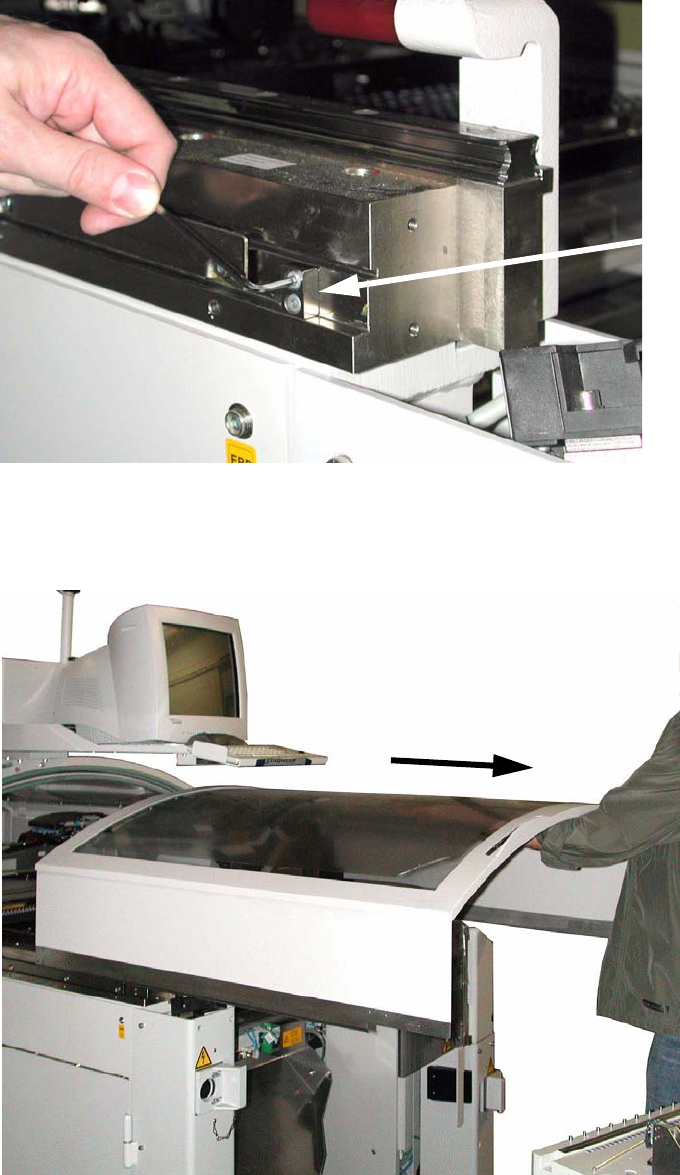

: Remove the stops for the protective covers.
2
2
: Remove the protective covers on each side and set them down in a suitable place.
2
Stop for
protective
cover
