Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
166

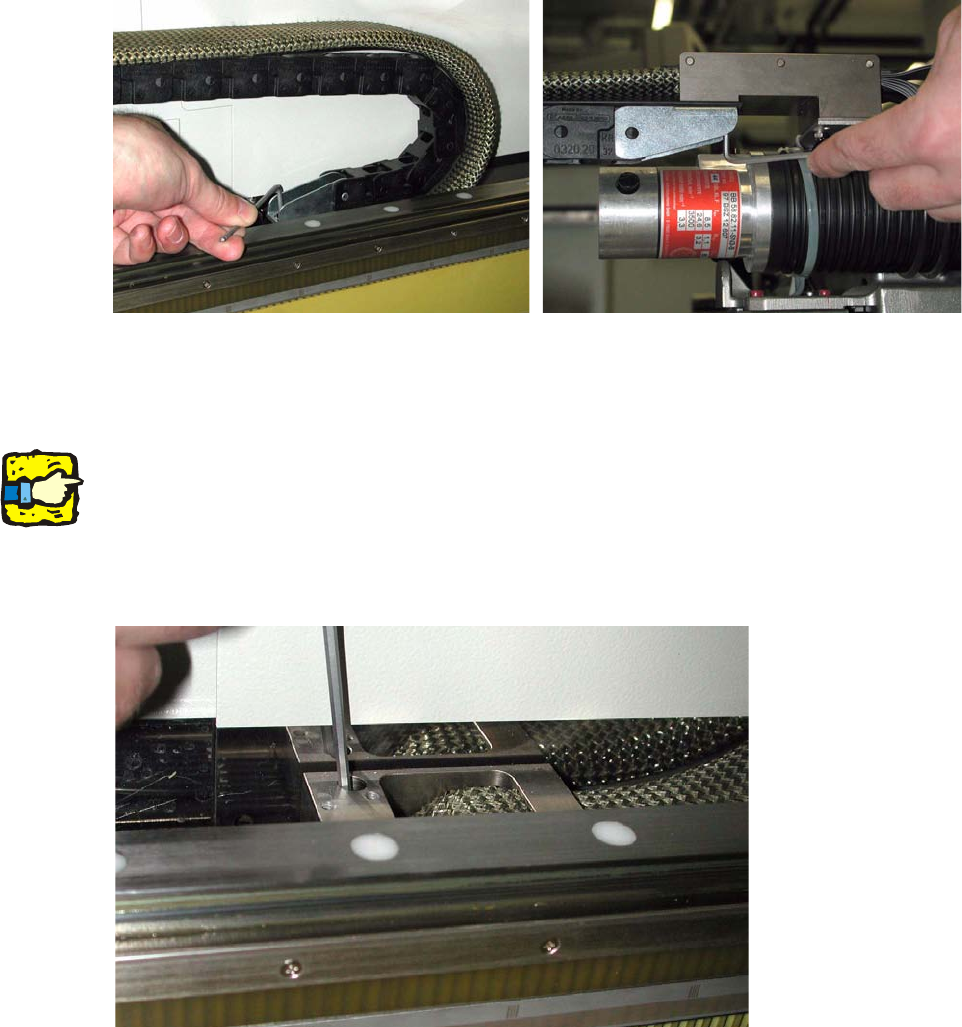

: Loosen the screws for the cable guiding chain on both sides.
: Remove the cable guiding chain together with the nylon tape.
2
2
: Compare the lengths of the new and old cable guide chain. If they are not exactly the same,
the air hoses MUST be replaced as well.
2
If this is not the case, the air hoses MUST be replaced as well, otherwise they will not be long
enough to allow them to be connected correctly. 2
2
: Loosen the two screws on the strain relief for the Y-axis cable and hose carrier.
2
2
2
2
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
167
: Loosen the screw(s) on the hose clip(s) and keep them both on one side (see photograph).
: Loosen the clamp for the compressed air hoses and detach the hoses.
2
2
: Remove the cover from the large axis conversion board (see photograph).
: Detach all the connectors from the board.
2
2
2
2
Hose clip
Detach hoses
Remove the cover
Unplug the connector
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
168
: Remove the three pins of the strain relief using a suitable tool (e.g. grooved hammer head).
2
Do not use pliers to do this, otherwise the surface of the fixing pins or the ribbon cable might be
damaged. 2
2
2
: Remove the 3 cable clamp on the gantry arm.
2
2
2
Strain relief
Groove
Remove clamps
