Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
167

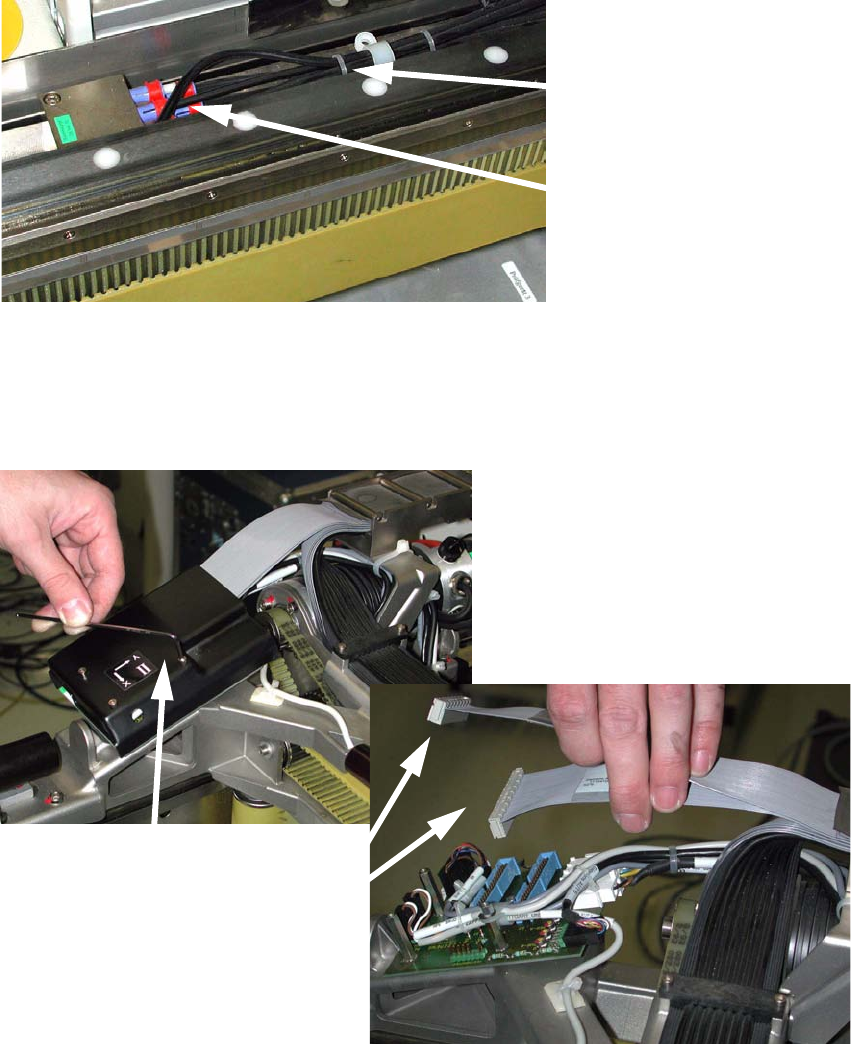

: Loosen the screw(s) on the hose clip(s) and keep them both on one side (see photograph).
: Loosen the clamp for the compressed air hoses and detach the hoses.
2
2
: Remove the cover from the large axis conversion board (see photograph).
: Detach all the connectors from the board.
2
2
2
2
Hose clip
Detach hoses
Remove the cover
Unplug the connector
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
168

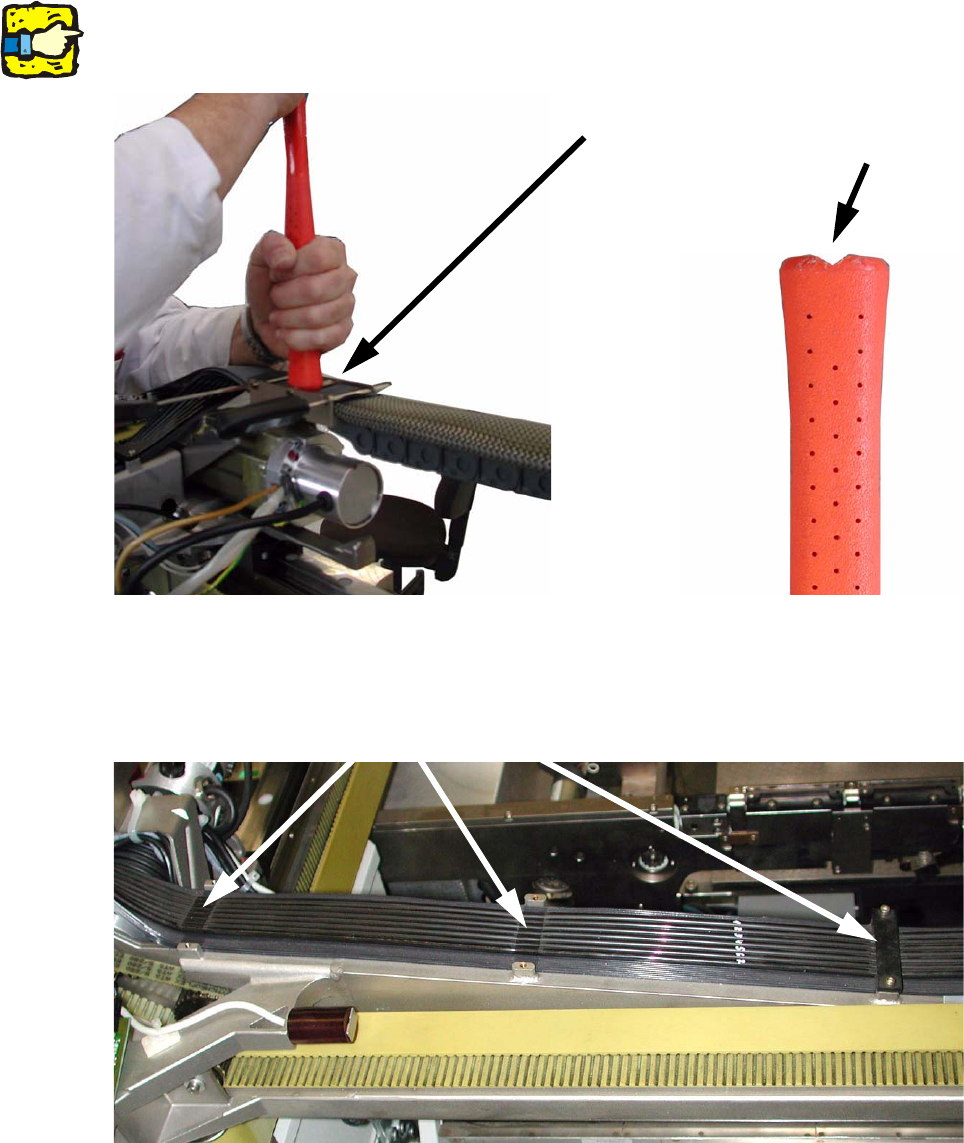

: Remove the three pins of the strain relief using a suitable tool (e.g. grooved hammer head).
2
Do not use pliers to do this, otherwise the surface of the fixing pins or the ribbon cable might be
damaged. 2
2
2
: Remove the 3 cable clamp on the gantry arm.
2
2
2
Strain relief
Groove
Remove clamps
Replacement instructions - Gantry cable and hose carrier SIPLACE HS / S / F
01/2007 Edition
169

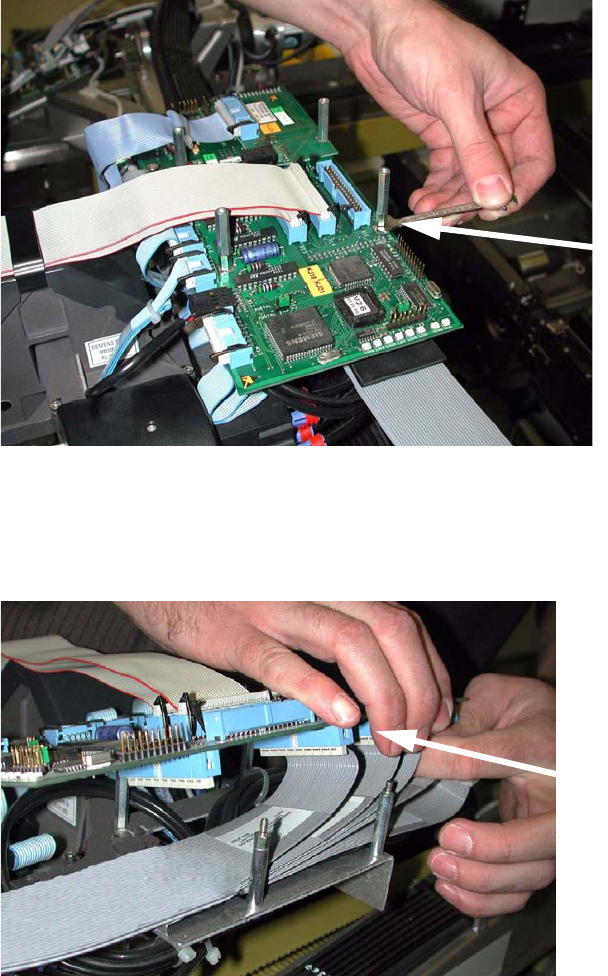

: Loosen the fixing screws for the head board and lift the board away from the locating pins. The
cables on the top of the board can remain plugged in.
2
2
: Unplug all the cables on the underside of the head board.
Note which cables are allocated to which connectors for when you fit the new cable set.
2
2
2
2
2
2
Unscrew the head board
Disconnect the cables
